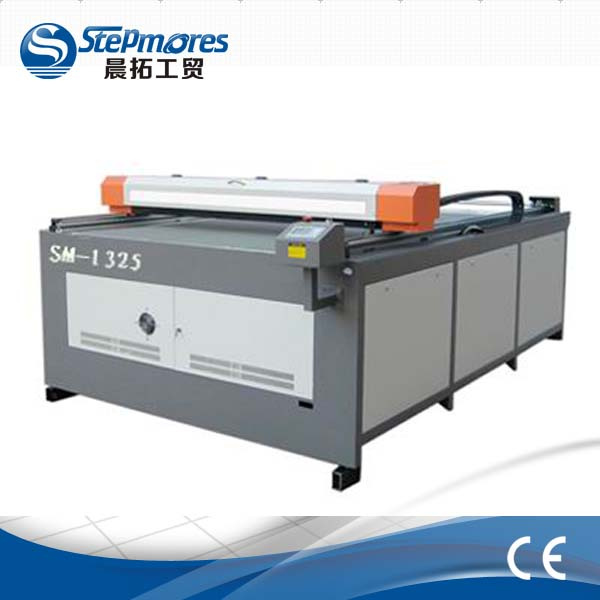

High-Standard Laser Cutting Machine, Laser Engraving Machine for MDF

Product Specifications

Prod Model:	SM-1325M
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Engraving Machine Type:	Laser Engraving Machine
Certification:	CE, ISO 9001
Laser Type:	Fiber Laser
Control:	Automatic
Current:	AC
Condition:	New
Usage:	Metal, Wood, Plastic, PVC, Glass, etc
Power:	150W
Drive Type:	Panasonic Servo System

Product Description

High-Standard Laser Cutting Machine, Laser Engraving Machine for MDF

Manufacture price!competitive laser cutting machine,laser engraving machine for metal,MDF etc.


Model	SM-1325M
Laser power	150W
Working area	1250 × 2500 mm
Positioning accuracy	±0.05 mm
Positioning speed	20m/min
Weight	1000 kg
Power supply	220V±10%/10A


SM1325M is a mixing cutting machine, specialized in cutting stainless steel, carbon steel, MDF and acrylic.

High efficiency: The cutting speed of 1mm stainless steel is 1800 mm/min.
20mm acrylic with perfect cutting quality.

SM1325M machine is matched with the Panasonic Servo System and high precision.

ball-screw system to ensure the high precision, running stable and long-operation.

The sheet metal is not flat. But the system can sense a distance from the nozzle to the metal surface and follow the surface up and down to automatically adjust the certain focus distance for keeping high precision cutting quality.

The laser beam is expanding, so the bigger the working area is, the more difficult the machine is to get the same cutting quality over the whole working area. The fixed beam optical system can guarantees the consistent beam power and quality over the whole working area so that the machine can get the same cutting quality.

High efficiency, high precision, stable performance and long life.
Low running cost about 5KVA/hour.

Features
Laser tube (150w)
High precision ball-screw system
Panasonic Servo System
Untouched following system
Fixed beam optical system
Industrial chiller
Off-computer controlling system

Application

Laser power	150w
Material	Acrylic	MDF	Stainless steel	Carbon steel
Cutting thickness	30mm	10mm	1.2mm	1.2mm

150W Cutting speed

Material	Cutting thickness	Cutting speed (mm/min)
Stainless steel	0.5mm	2700
	1mm	1800
	1.2mm	1000-1200
Carbon steel	0.5mm	3000
	1mm	1800
	1.2mm	1000-1200
Acrylic	10mm	300
	20mm	90-120
MDF	10mm	300-400

FAQ
1.  How should i pay for my order ?What is the procession of this purchase?

  Answer:  we accept TT by bank.  you can do 30%  prepayment at first, then we will start to make production.  when the machine is ready , we will take pictures to you, and then you can do the ballance.  after we got your payment. i will send the machine to you.

2.  How about your service after sales ?Can your engineer speak fluent english?

Answer:  we offer the sercice from you got the machine,  including how to install the machine, how to use machine. how to let machine work. and so on.  usually we will teach you how to do by email or by skype .  our engineer has many years of experience for cnc machine service .  he can speak very good english , so he can slove the problem in short time.

3. Are you a factory or trading company  ?

Answer : We are the manufacturer .  as only the machine made by ourself  ,quality can be trusted,  and most important thing is we can do better serivce after sales. we know how to fix the problem in each parts easliy. so welcome to visit to our factory

Our Services

1. service before sales:  our salesman will try to know your requirement about our cnc router specificaiton and what kind of work you will do . then we will offer our best solution for your requirement.  then it  can confirm each customer can get their real needed machine.

2. service during production: we will send photos of machines during making. so customers can know more details about the procession of making their machines. and give theirm suggestions.

3. service before shipping: we will take photo and confirm with customers the specification of their orders to avoid the mistake of wrong making machines.

4. service after shipping: we will check when the machine arrive your sea port and approximate date of arrival. so customers can know when it will arrive and make enough preparation.

5. service after arrival: we will confirm with customers if machine is in good condition. and see if any spare parts missing .

6. service of teaching:  there are some manual and video about how to use machine, if some customers have question about it. we will have professional technist to help them to install and teach how to use through skype ,calling, vedio or mail.

7. service of warranty: we offer 1 year warranty for whole machine and half year warranty for spindle.  if any parts of our machine is broken. we will replace it for free.

8. service in longterm : we hope every customer can use our machine easliy and have a fun of it.  if customers have any problems of machine in 2 or 3 , 5 years ,  they can contact us . we will always here waiting for you.

Flow of work

offer   →  Parameter Identification   →    confirm PI   →   arrangement of order after payment → production of cnc machines →  professional testing→  delivery and take a photo →  arrival to Clients

Contact person:Andy zhu
Tel:+86 531 69954283

Welcome visit China,welcome visit our factory!

 Note:

Please tell me the following questions:I will recommend the most suitable machine to you!
1.)What is the materials do you want to engraving or cutting?
2.)What is the max size of the materials?

We are CNC router machine OEM and Sincerely find honest agent from every country !
Let us hand in hand,create the beautiful future!  SM-1325M
