Product Specifications
| Prod Model: |
GM/SP-100X100H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Description: |
Small Jaw Crusher for Lab |
| Crushing Object: |
Ore, Rock, Mineral, Coal etc |
| Feeding Size: |
80mm |
| Output Size: |
0.2-20mm |
| Handling Capacity: |
200-1030kg/H |
| Protect Way: |
Safe Interlock Device |
| Structure Feature: |
Hermetic Design with Openable Door |
| Certificate: |
CE |
| Volume Of Package: |
About 0.8cbm |
| Weight: |
About 440kg |
| Motor Type: |
DC Motor |
| Type: |
Jaw Crusher |
| Condition: |
New |
| Materials: |
Ore, Mineral, Rock, Stone |
| Application: |
Laboratory, Scientific Research |
| Motor Power: |
3kw |
| Inlet Size: |
80mm |
| Outlet Size: |
0.2-20mm |
Product Description
High Strength Small Jaw Crusher for Lab Sample Preparation
Brief Description:
-Small design for lab use;
-Sample preparation for mineral, ore, rock;
-High strength durable jaw plates;
-Reasonable price, stable performance.
Typical Application:
This small jaw crusher machine is used for crushing kinds ores, rock, stone, coal and other solid material for sample preparation.
The high strength jaw crusher is especially suitable for sample preparation work in the laboratory of industrials of nonferrous metal, metallurgy, chemic, environment-friendly department, scientific research and so on.
Advantages:
1. Adopting special technology and material, it especially suitable for crushing high strength alloy material.
2. The jaw plate is made of high strength material which has good abrasive resistance and will not pollute the sample.
3. The crusher has the advantages such as: Even discharging size, smooth running, easy adjustment and long service life.
4. The machine frame is made of the cast steel after heating treatment.
5. Removable shell which is convenient for daily maintenance and inspection of the machine.
6. Mechanical-electrical integrated controlling makes the machine is easy to operate.
7. Full-sealed design and equipped with dust extracting outlet which meets the environment requirements.
8. Total electro-static coating surface which makes good appearance and easy to clean.
9. It can work normally on the flat ground without fixing any base.
Technical Parameter of Guangming Small Jaw Crusher For Lab
High strength small jaw crusher for lab sample preparation
Model No.
GM/EP-100× 60H
GM/SP-100× 60H
GM/SP-100× 100H
GM/EP-150× 125H
GM/EP-250× 150H
Feeding entrance size(mm)
100× 60
100× 60
100× 100
150× 125
250× 150
Feeding size(mm)
≤ 45
≤ 48
≤ 80
≤ 100
≤ 200
Discharging size (mm)
3-10
0.2-15
0.2-20
6-38
10-40
Handling capacity(kg/h)
500
12-720
20-1030
50-1200
1000-3000
Working power supply (V)
380
380
380
380
380
Dimension (mm)
1000× 550× 740
981× 530× 750
981× 530× 830
1150× 710× 985
1670× 800× 1050
Motor power(kw)
2.2
2.2
3
5.5
11
Total weight (kg)
186
330
400
585
950

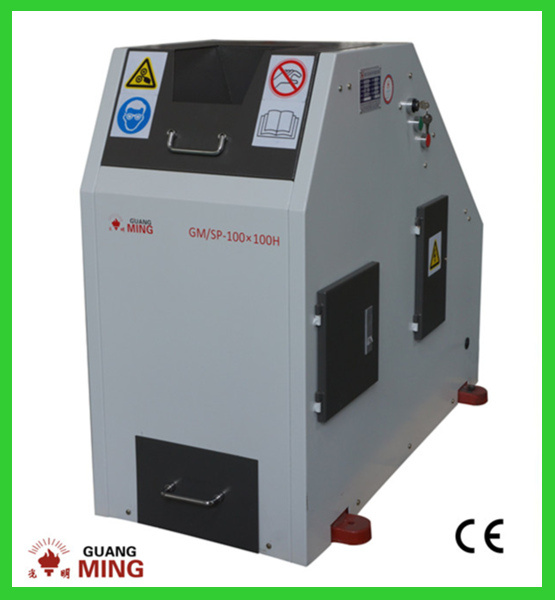

Detail Photos of Small Lab Jaw Crusher
Packaging and shipping way
Packaging way: plywood case, each lab jaw crusher is packaged in a customized plywood case, which can protect the roll crusher well during transportation process;
Shipping way: by sea, by air or by DHL as per customer's requirement.
Our Serives:
-Within 24hours prompt reply;
-15-30day on time delivery;
-Quality assurance, the disc mill has 12months warranty time;
-High qualified engineer and sales provide good service for each customer;
-Experienced cooperation forwarder satisfies customer's various shipping arrangement.
FAQ:
1. What's material of jaw plates of lab small jaw crusher?
=>The jaw plates are made of durable chrome steel .
2. How to adjust output size?
=>Customers can enlarge or reduce the distance between moveable jaw plate and fixed jaw plate to adjust output size accordingly.
3. What's power supply of the small jaw crusher?
=> The standard is 380V, 50Hz, customized motor is also available if customer's local power supply is differnt.
