Product Specifications
| Prod Model: |
FL-340 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Fixed Resistor |
| Technology: |
Metal Alloy |
| Package Type: |
Paper Box |
| Resistance: |
as Request |
| Resistance Tolerance: |
±5% |
| Rated Power: |
0.8W |
| Temperature Coefficient: |
<50 Ppm/K |
| Operating Temperature: |
-65~ +170 Degree |
| Finish: |
Acid Washing |
| Sampling Wires: |
1007-24AWG (as Request) |
Product Description

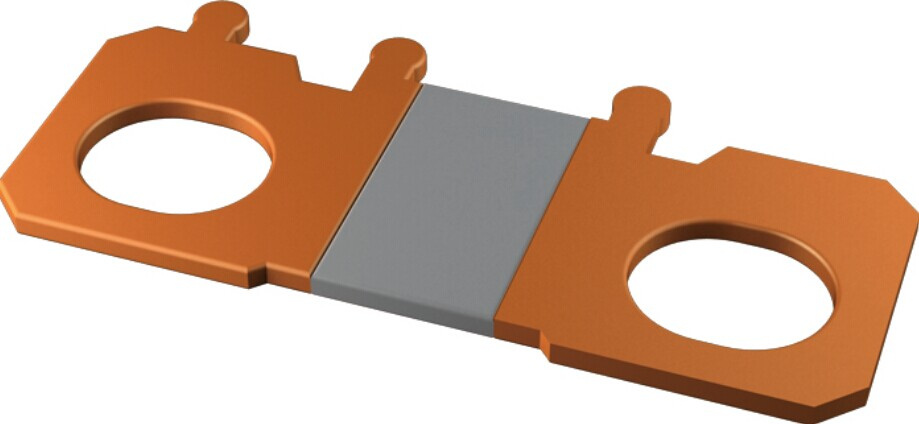

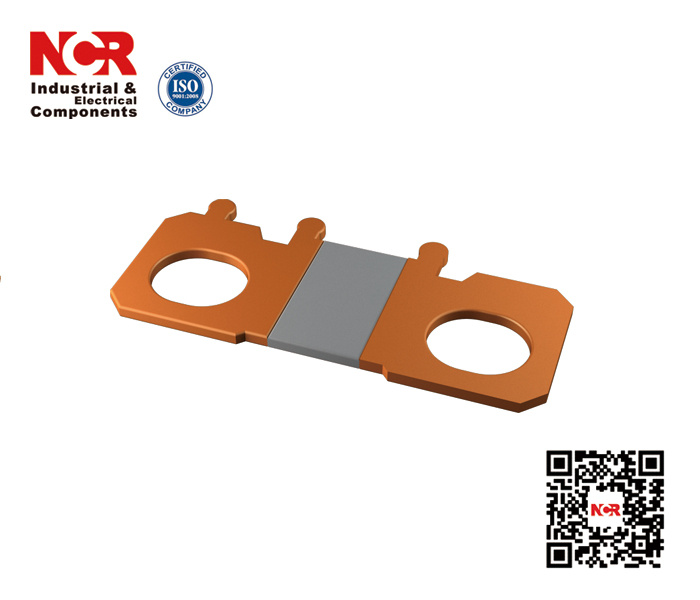

High Technology Copper Manganin Shunt Resistor for Kwh Meter (FL-340)
General:
SHUNT is precision element for the energy meter, adopts the advance technical of plane jointing.
A. Application
Serving in all kinds of electrical meters/ energy meters/ measurement instruments as power measurer.
Manganin Shunt in Energy Meter, Shunt Resistor For Watt-hour Meter, Electrical Meters, KWH Meter component, EBW Shunt.
B. Feature
1. Material: F2 or 6J13 Manganin and pure copper.
2. Welding mode: Braze welding with Ag-based alloy as solder.
3. Resistance value: 200, 250, 300, 350, 400, 500, 600, 700, 800, 1000, 1200, 1600μ Ω .
4. Tolerance standard: ± 5%
5. Shunt type: The shunt should be mountable type with holes for screw fixing
6. Termination: Integrated lead wires are available.
7. Temperature: Independent from temperature variation with low TCR value.
8. Characteristics TC < 50PPM/K
9. Power loss: < 50 milli watt
10. Aging: 10 hours under 120 degrees Celsius
11. Customized designs are available against customer's drawings/samples.
Service Advantage:
1. Design by customer's dimensions
2. ALL kinds of Manganin Shunts
3. High welding technology
4. OEM
5. Favorable price
Why NCR?
1. We Are an electronics components manufacturer, researcher, developer and exporter.
2. We have fourteen years experience of manufacturing Relays and other electronic components.
3. Based on ISO 9001 & ISO14000 quality control system as our production standard;
4. We have completely sales service system, ensure every detail is going smooth.
5. We have new designed products each year by our R&D Department.
NCR, as a reputable manufacturer in China, is specializing in Relay industry since 2003.
NCR, NNC and GRI are trademarks of NCR group:
"NCR" for Latching Relay factory in Jiaxing, China.
"GRI" for Meter Component (Shunt, CT, Terminal etc. ) factory in Wenzhou, China.
"NNC" for Electromagnetic Relay (PCB relay, Auto Relay, SSR etc. ) factory in Yueqing, China.
With more than 1000 staff, we were growing as one of the most reputable Relay brands in China serving customers worldwide by:
In-house molding and test laboratory.
Experienced R& D team to optimize your design
Dust-free and automatic production facilities.
ISO9001, ISO14001 & ISO18001 QA system.
1000+ Successful cases worldwide.
And flexibility to meet your unique need.
Today we are offering a wide range of Relay conforming to standard UL/IEC/ANSI:
1A-40A for household appliance and telecom industry.
30A-100A for industrial control & Automation.
40A-200A for smart meter & Grid.
Quality is always our guiding philosophy and we are proud of our products having continuous reliability in quality.
Quicker switching, Stronger switching for your smarter products.
Energy-saving, Environmental-friendly for a greener world.
That's our relays.
