Price: | US $ 600-1000/Piece |
---|---|
Trade Terms: | FOB,CIF,CIP |
Min Order: | 1/Piece |
Pay Type: | T/T,Paypal,Western Union |
DN | Kg/h | Nm3/h (0°C1.013bar atm) | Scf/min. (15°C1.013bar atm) | |||
Min. | Max. | Min. | Max. | Min. | Max. | |
15 | 0.5 | 53 | 0.38 | 41 | 0.23 | 25 |
25 | 2 | 200 | 1.5 | 155 | 1.0 | 96 |
40 | 6 | 555 | 4.6 | 429 | 3.0 | 266 |
50 | 10 | 910 | 7.7 | 704 | 5.0 | 436 |
80 | 20 | 2030 | 15.5 | 1570 | 10 | 974 |
100 | 38 | 3750 | 29 | 2900 | 18 | 1800 |
DN | Kg/h | Nm3/h (0°C1.013bar atm) | Scf/min. (15°C1.013bar atm) | |||
Min. | Max. | Min. | Max. | Min. | Max. | |
80 | 20 | 2030 | 15.5 | 1570 | 9.6 | 974 |
100 | 38 | 3750 | 29 | 2900 | 18 | 1800 |
150 | 50 | 7500 | 38 | 5800 | 24 | 3600 |
200 | 80 | 12500 | 62 | 9666 | 38 | 6000 |
250 | 120 | 20000 | 93 | 15468 | 58 | 9600 |
300 | 180 | 28000 | 139 | 21655 | 86 | 13440 |
400 | 300 | 50000 | 232 | 38670 | 144 | 24000 |
500 | 500 | 80000 | 386 | 61870 | 240 | 38400 |
600 | 700 | 115000 | 540 | 88940 | 336 | 55200 |
700 | 900 | 159000 | 696 | 122970 | 432 | 76300 |
1000 | 2000 | 320000 | 1546 | 247846 | 960 | 153600 |
1500 | 2500 | 720000 | 1933 | 556844 | 1200 | 345600 |
Flow range | 0.2-120 Nm/s (air under the standard conditions) |
Accuracy | Flow values:± 1% F · S, and plus 0.2% of reading Temperature values: ±0.1°C |
Repeatability | Flow values:± 0.5% Temperature values: ±0.03°C |
Range ratio | 100:1 to 1000:1, the factory setting. |
Temperature compensation | standard temperature compensation |
Working temperature | -40 - +932 ° F (-40 - +500 °C) |
Humidity | 99%, non-condensing |
Response time | 0.75s |
Temperature Effect | ± 0.05% / °C |
Operating pressure | 10Mpa at 20 °C 9.5Mpa at 200 °C |
Medium | All gases that can be compatible with material of flow components. |
Environmental temperature | -40 - +160 ° F (-40 - +70 °C) |
Storage temperature | -40 ° - +160 ° F (-40 - +70 °C) |
Housing material | NAME4X (IP65) aluminum casting of powder coating |
Process of connection | NPT or flange |
Electrical interface | M20×1.5 |
Power supply | 200-240VAC, 22-30VDC |
Signal output | Current: 4-20mA, 700Ω maximum load Voltage:0-10VDC, 200ohm, 1-5VDC, 100 maximum load |
Communications | 485, HART, Profibus, CAN optional |

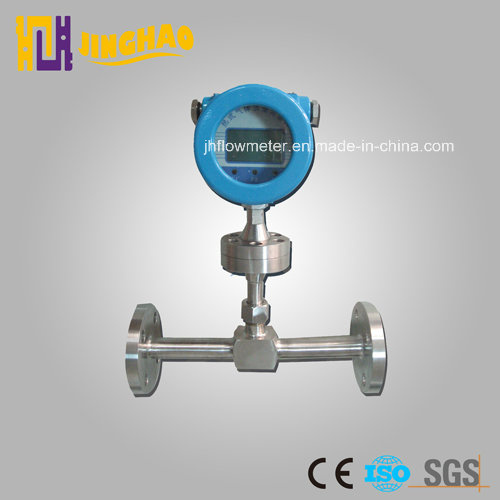

Prod Model: | JH-RSFM-F |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Measuring Range: | 1.2-200000m3/H |
Power Supply: | 220VAC |
Signal Output: | RS485,RS232,4-20mA |
Display: | LCD |
Material: | Ss316 |
Working Temperature: | -20-350c |
Anti-Explosion: | Exdllct4 |
Protective Class: | IP67 |
Accuracy: | ?à0.2-0.5% |
Main Application: | Air,Nitrogen |
Sensor: | Tube/Flange |
Type: | Coriolis Mass Flow Meter |
Measuring Media: | Gas |
Measuring Principle: | Thermodynamic |
Size: | Dn20-Dn1000 |
