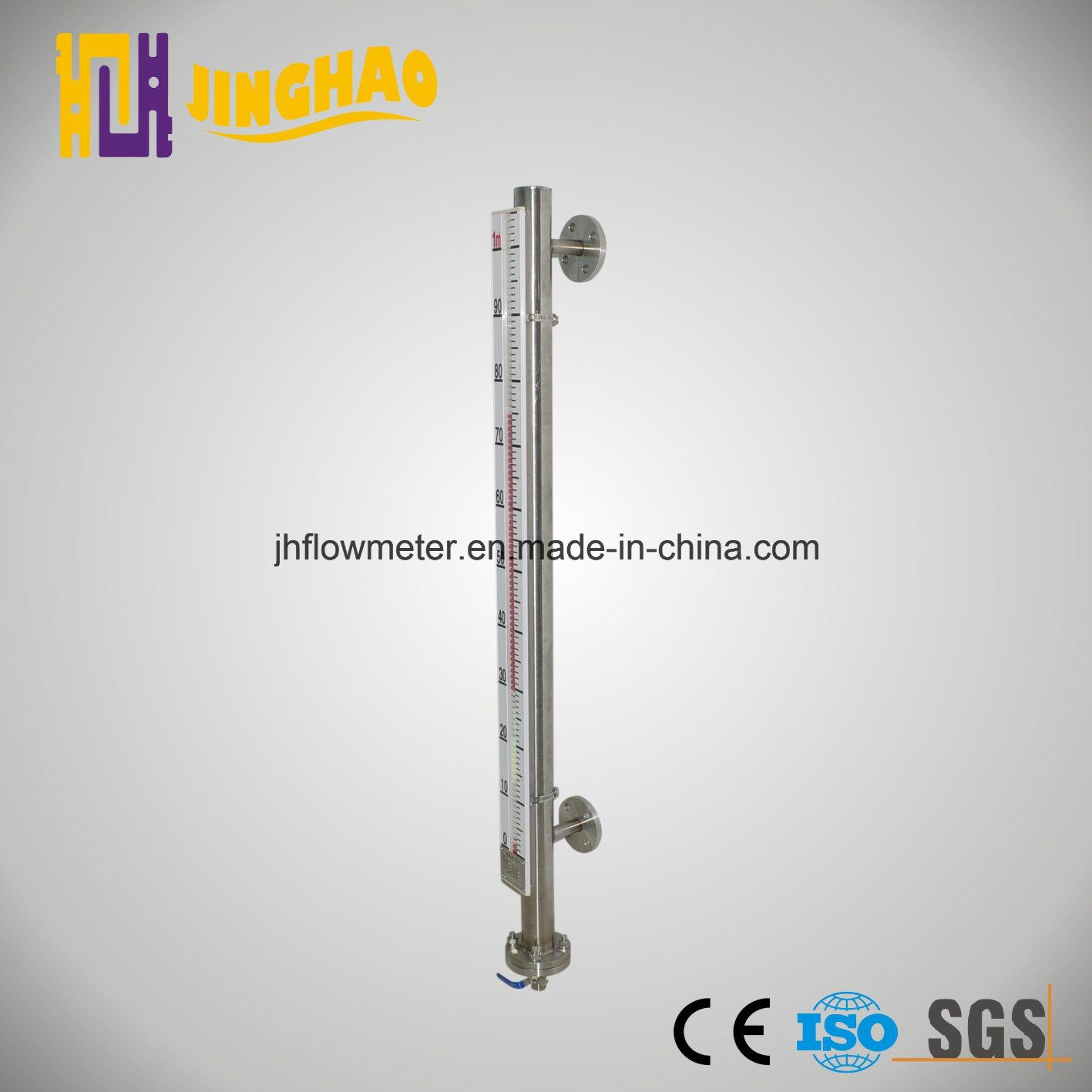

High Temperature High Pressure Digital Magnetic Liquid Level Meter (JH-MLM-H)

Name: High Temperature High Pressure Digital Magnetic Liquid Level Meter (JH-MLM-H)
Brand: China-Manufacturer-Directory.com
SKU: 775084045
Availability: InStock
Rating: 4.3 (58 reviews)

Supplier:	Shanghai Jinghao International Trade Co., Ltd.
Price:	US $ 110-900/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF,DAP

Product Specifications

Prod Model:	JH-MLM-H
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Principle:	Magnetic Sensors
Accuracy:	+-4mm
Working Temperature:	0-350c
Working Pressure:	16bar
Connection:	Dn20 Pn16 RF
C To C Distance:	500mm
Display Panel Housing Material:	Aluminium Alloy
Mounted:	Side Mounted
Material:	Ss304

Product Description

Magnetic Level Meter

This magnetic flap level meter takes advantages of the magnetic displacement generated by the inner magnetic floater when the liquid level changes, making the red and white magnetic reversible columns overturn to indicate the height of liquid level. When the floater declines, the red turns white and the red still indicates the height of liquid level.

Applications:
Chemical engineering, electricity, papermaking, shipbuilding, environmental protection and food, liquid level measurement of medium in the pressure-bearing (open) container, and liquid level measurement of underground groove, pool and high-level water tank, the magnetic flap level gauge is a simpler, more reliable and most ideal measuring method.

Features:
-Easy to read
- Red and white corol
-Top or side mounted
- Top and low alarm

Technical parameters:

Type	Wet Material	Measuring Range (mm)	Data of liquid
Type	Wet Material	Measuring Range (mm)	Temp	Pressure (Mpa)	Density (g/cm3)	Viscosity (Pa.s)
Standard	304	300-8000	-20~150	0-2.45	0.5-2	<=0.04
H-pressure		300-8000	-20~150	2.45-9.6	0.5-2	<=0.04
H-temp		300-8000	-20~350	2.45-9.6	0.5-2	<=0.04
Low-tem		300-3500	>-40	0-2.45	0.5-2	<=0.04
LPG		300-15000	-20~150	0-2.45	0.45-0.7	<=0.05
Corrosio-proof	316L	300-8000	-20~150	0-2.45	0.5-2	<=0.04
Corrrossion-poof	PP	300-5000	20~100	0-0.6	0.5-2	<=0.04
Corrrossion-poof	U-PVC	300-5000	20~60	0-0.5	0.5-2	<=0.04
Corrrossion-poof	ABS.	300-5000	-20~120	0-0.6	0.5-2	<=0.04
Corrrossion-poof	316 pipe PP liner	300-15000	-20~100	0-1.0	0.5-2	<=0.04
Corrrossion-poof	PE	300-5000	20~40	0-0.6	0.5-2	<=0.04
warming type	304	300-15000	-20~150	0-2.45	0.5-2	<=0.05
H-viscosity	304	300-15000	-20~150	0-2.45	0.5-2	<=0.05
sanitary	304.	300-15000	-.20~150	0-1.6	0.5-2	<=0.05.

Model selection:

MLM-	Magnetic level meter
Range (M)	1,2,3
Material	M1-SS304
	M2-SS316L
	M3-UPVC
	M4-UPP
	M5-PTFE
Output	4 -
	AH-upper alarm
	AL-lower alarm
	AHL-upper and lower alarm
Installation	S-side-mounted
	T-Top-mounted
	B-Bottom-mounted
Sensor temperature	N-10-200 Celsius degree
Sensor temperature	H-High temperature-10-350
