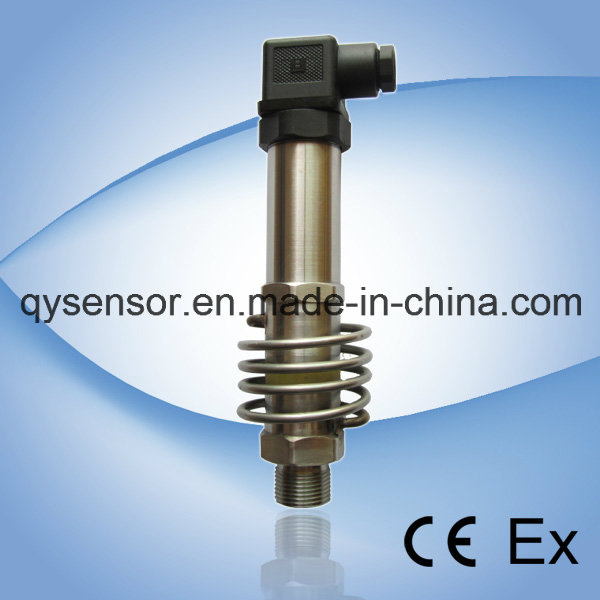

High Temperature Pressure Sensor with Analog Output (QP-83G)
Product Specifications
| Prod Model: |
QP-83G |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Measure Range: |
100MPa |
| Working Temperature: |
-30~150 Centigrade |
| Pressure Connection: |
Customize |
| Combine Error: |
≤±1 |
Product Description
Model: QP-83G High Temperature Pressure Sensor with Analog Output
Range: 0~100KPa, 0~500KPa.0~100 MPa
Feature:
Have the characteristics of high precision, good stability, long working life and high reliability.
Easy to installation.
Small in size, light in weight.
The range of medium temperature: -30ºC~150ºC
Pressure connection and Electrical connection are able to chosen by customers.
Suitable for measuring the gases and liquids.

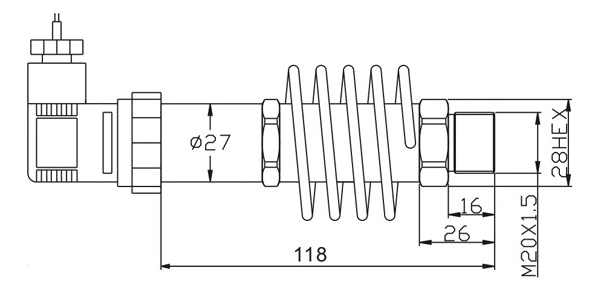

Dimensions: (unit: mm)
Technical Specifications| Measuring media | Gases or liquids which are compatible to 316L stainless steel |
| Measuring range | 0~100KPa,0~500KPa.0~100MPa |
| Pressure type | Gauge(G),Absolute(A),Sealed(S) |
| Signal output | transmitter, mA (2 wires) | 4~20mA |
| transmitter, Vdc (3 wires) | 0~10V, 0~5V,1~5V, 0~20mA |
| Combined accuracy | %FS | ±0.5(Standard), ±1(Max) |
| Long stability | ±0.1%FS/year(Standard);±0.2%FS/year(Max) |
| Power supply | Vdc | 12~36(Standard 24Vdc) |
| Compensated temp. | ºC | -10~+60 |
| Operating temp. | ºC | -30~+150 |
| Temperature coefficient of ZERO | %FS/10ºC | ≤±0.3 |
| Temperature coefficient of SPAN | %FS/10ºC | ≤±0.3 |
| Insulation resistance | MΩ | >500 @ 100Vdc |
| Electrical connection | DIN43650,Aviation connector,Directly lead(Selectable) |
| Material | Housing Material | Stainless steel(1Cr18Ni9Ti) |
| Material of diaphragm | 316L Stainless steel |
| Pressure connection | M20x1.5,M14x1.5,M12x1, M10x1, G1/4(Customized) |
| Environment protection | IP | 65 |
| Safe overload | %FS | 150 |
| Ultimate overload | %FS | 200 |
Ordering code: model- range & type-signal output-accuracy-pressure connection-electrical connection-defend grade-the other requests.
Example: QP-83G-0/300KPaG-4/20mA-0.5%FS-M20x1.5-DIN43650-IP65-*** Packaging & Shipping
- Standard exporting package: each unit has individual box and packed in paper box. Waterproof protect.
- According to the clients requirement
![]()
Our Services
- We are committed to providing a high quality,and responsive services to all clients
- Detailed informations, specific and price of products will be provided quickly after receiving your inquiry.
- Quality assurance: All products will be make sure the quality in a year, and replace new product with any quality problems. All products will be checked by our quality-control and enclose with testing data.
- Packageing: well box packed and provide optimal freight for you refrence.
- All products OEM available
Company Information
Han Zhong Quan Yuan Electronic Co., LTD. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.
QuanYuan are certified according to ISO 9001:2000 and produce strictly in accordance withR60![]()
