Product Specifications
| Prod Model: |
HQHG-310G |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Positive Catalyst |
| Classification: |
Heterogeneous Catalysts |
Product Description
HQHG-310G high temperature zinc oxide sulfur remover is widely used in the purification of various industrial feed gas including hydrogen production, ammonia, alcohol production, and organic product synthesis.
The content of H2S can be decreased to below 0.1 ppm through treatment of HQHG-310G. At the same time, it can also convert and adsorb some simple organic sulfur compounds, such as COS and CS2. HQHG-310G possesses the features of high adsorption amount of sulfur, high activity and high mechanical strength, enduring high water steam ratio, even at harsh conditions, it can maintain very high activity and sulfur adsorption capacity.
H2S+ZnO=ZnS+H2O
ZnO+COS=ZnS+CO2
2ZnO+CS2=2ZnS+CO2
| Item | Index |
| Appearance | yellowish-white extrudate |
| Size,mm | Φ(3~5)×(5~15) |
| Surface area,m2/g | ≥50 |
| Sulfur capacity,% | ≥30(300ºC),≥20(220ºC) |
| Bulk density,g/ml | 0.80~1.10 |
| Crushing strenght,N/cm | ≥70 |
| Operating conditions |
| Operating pressure, Mpa | Atmospheric pressure~13.0 |
| Temperature,°C | 150~400 |
| Operating velocity, h-1 | 500~3000 |
| Exit sulfur content, mg/m3 | ≤0.1 |
| Item | Index |
| Appearance | yellowish-whiteextrudate |
| Size,mm | Φ(3-5)×(5-15) |
| Surface area,m 2 /g | ≥50 |
| Sulfur capacity,% | ≥30(300),≥20(220) |
| Bulk density,g/ml | 0.80-1.10 |
| Crushing strenght,N/cm | ≥70 |
| Operating conditions |
| Operating pressure, Mpa | Atmospheric pressure~13.0 |
| Temperature,°C | 150-400 |
| Operating velocity, h -1 | 500-3000 |
| Exit sulfur content, mg/m 3 | ≤0.1 |

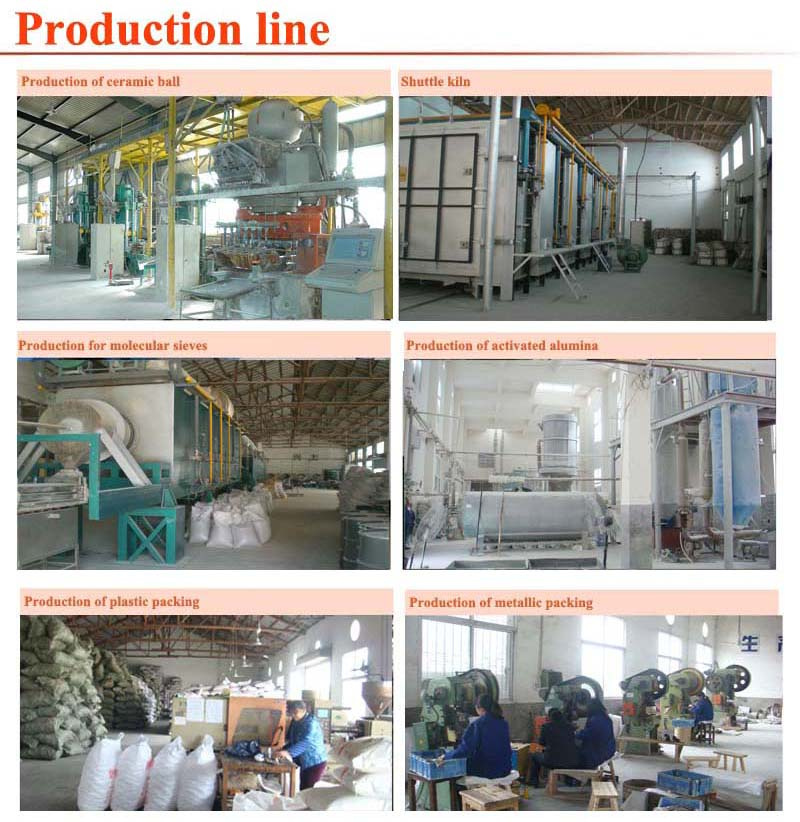

Pingxiang Global Chemical Packing Co., Ltd. (PGCP), is located in Gaokeng Industrial Park, Pingxiang, Jiangxi Province. It can produce ceramic, metallic and plastic tower packings, ceramic balls, molecular sieves, catalysts, activated alumina, petrochemical additives, activated carbons and filtering materials etc. Used in chemical and petrochemical industries.
Since established, the PGCP has made great achievements, developed a lot of new products, acquird the certificate of ISO9001-2000 and set up a pleasant cooperative relationship with the wide circles of the users, material suppliers, scientific research institutes and engineering design institutes. In 2006, we drafted chemical industry standards HG/T3986-2007 for Technology Condition of Plastic tower packing and HG/T3927-2007 for Industrial Activated Alumina with the National Non-metallic chemical equipment Standards Committee and the National Chemical Standard Committee. Our general engineer took part in drafting national chemical industry standard, that is HG/T 3683.1-2000 Industrial Ceramics Ball-Inert Ceramics Ball and HG/T 3683.3-2000 Industrial Ceramics Ball-Perforated Ceramics Ball. The new developing products HQ-HK slotted & perforated ceramic balls, high efficiency HQ-HK slotted & perforated supporting agent and high efficiency HQ-HK slotted & perforated protecting agent have the national patent, the number is ZL2005 3 0048184.0. Besides these ones, we have other patent products, that is HQR ring (ZL 2005 3 0048180.2) and HQ eight columns arcs link (ZL2006 3 0147956.0).
Based on the long history, the scientific management, the strong technical forces and the advanced equipments, the PGCP has wined much praises and trust from the customers by its first-class products and the perfect services. Insisting on the principle of Customers First and Quality Best, we will do our best to strive after, to create a more brilliant future with all friends.
