Product Specifications
| Prod Model: |
XA-S. S. M3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Wire Diameter: |
0.01-1mm |
| Mesh: |
1-2000 |
| Width: |
1-2.5m |
| Length: |
10-50m |
| Application: |
Fence Mesh |
| Material: |
SUS316 |
| Weave Technique: |
Plain Weave |
| Hole Shape: |
Square |
Product Description

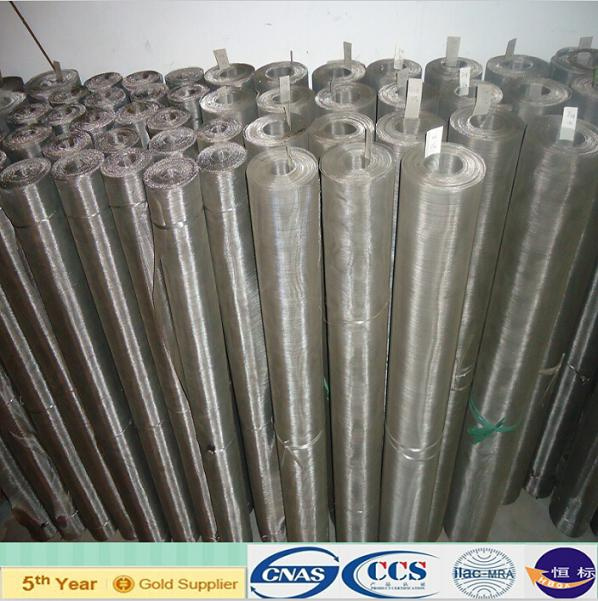

Stainless Steel Wire Mesh:
ISO and SGS certified.
Cooperating customers come from European Big Company.
Superior quality and competetive price
Material: S. S 304, 304L, 316, 316L, 430, 904 and 904L. Etc.
Characteristics: Made by stretching and drawing through moulds, the product is characterized by acid-alkali resistance, high tensile strength, intercrystalline corrosion resistance, smooth surface and bright color.
Performance: Acid resistance, alkaline resistance, high temperature resistance, strong tension, and good abrasion resistance.
Weaving type: Plain weave, twill weave, Dutch weave (plain), Dutch weave (twill).
Usage: Used for screening and filtering in the acid or alkaline environment, and used as a mud mesh in petroleum industry, as a screen mesh in chemical industry, and as a pickling mesh in electroplating industry.
Packing: Wrapped with moister-barrier paper, then in wooden cases.
Mesh
|
Wire Dia. (MM)
|
Material (AISI)
|
12mesh x 64mesh
|
0.58 x 0.40
|
304 or 316
|
24mesh x 110mesh
|
0.36 x 0.25
|
304 or 316
|
14mesh x 88mesh
|
0.50 x 0.33
|
304 or 316
|
30mesh x 150mesh
|
0.23 x 0.18
|
304 or 316
|
40mesh x 200mesh
|
0.18 x 0.13
|
304 or 316
|
50mesh x 250mesh
|
0.14 x 0.11
|
304 or 316
|
80mesh x 700mesh
|
0.10 x 0.08
|
304 or 316
|
165mesh x 800mesh
|
0.071 x 0.040
|
304 or 316
|
165mesh x 1400mesh
|
0.06 x 0.04
|
304 or 316
|
200mesh x 1800mesh
|
0.05 x 0.032
|
304 or 316
|
825mesh x 2300mesh
|
0.035 x 0.025
|
316L
|
400mesh x 2800mesh
|
0.030 x 0.02
|
316L
|
Anping Xinao Metal Product Co., Ltd. is located in "The Capital of Wire Mesh" and "Chinese Wire Mesh Industrial Base" - Anping. Our company is a leading wire mesh manufacturer, which integrates wire drawing, net weaving, screen deep-processing and sale. Our main products are metal wire, wire mesh fence, welded wire mesh, crimped wire cloth, gabion mesh, SNS flexible protection net, woven wire mesh and more, which are widely used in many fields including building, railway, chemical, aerospace, aquiculture and others, distributed to Europe, America, India, the Middle East, Hong Kong and other countries and regions.
Xinao has attained ISO9001: 2000 certification. Our products have been proved by a scrupulous test. At the same time, we strive to provide helpful and timely service and to supply the highest quality wire mesh at competitive prices. Besides, in the past several years, our company has insisted on introducing high-technology and new talents, and has cultivated efficient and young professionals. With advanced technique, strict management system, strong development, innovation strength, and the principle of "quality & credibility first", we have won new and old customers' trust and appreciation.
We are convinced that with our joint efforts, business between us will bring us mutual benefits. We sincerely hope we can establish business relationship with new and old customers at home and abroad on the basis of "friendly cooperation and mutual benefits". We welcome any unit to visit our company and negotiate to create a glorious future.
