Product Specifications
| Prod Model: |
TMY9QD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
Tmy9qd |
| Output Type: |
Air Motor |
| Rated Power: |
17kw |
| Certifications: |
CE/CCS/API/ISO9001-2008 |
| Colour: |
Following Customers' Need |
| Explosion Proof: |
Yes |
| Function: |
Start Diesel |
| Average Air Consumption: |
150L/S |
| Fuel: |
Diesel Engine |
| Speed: |
2030r/Min |
Product Description

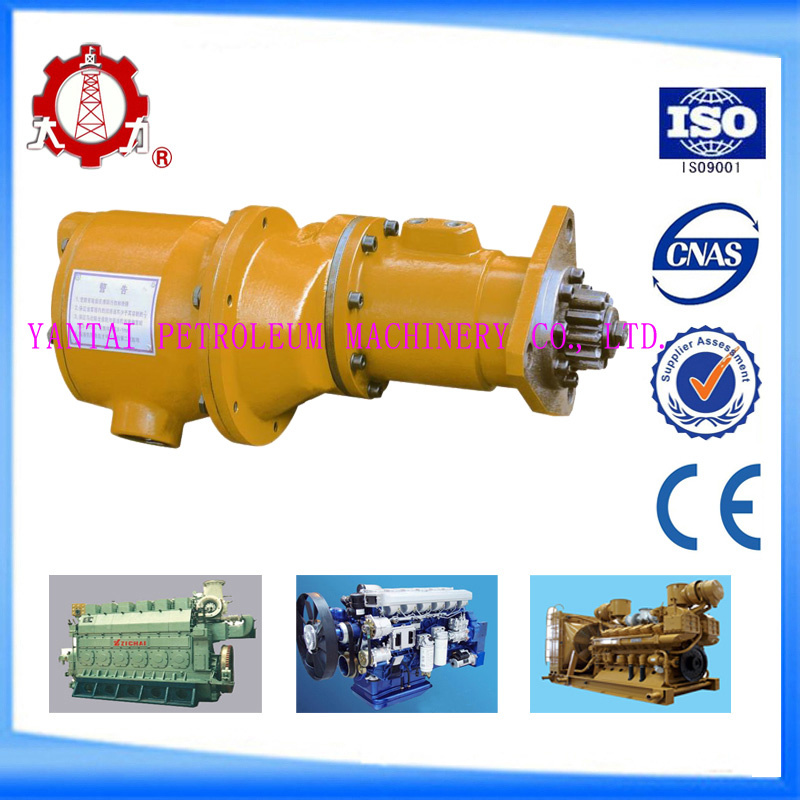

Pneumatic motor for diesel starting vane type
Working Principle Introduction
TMY9QD series starting vane air motor is a starting device, adopting compressed air as its power to start diesel engine. TMY9QDB, TMY9QDBa, TMY9QDBc starting vane air motors all belong to this series.
Why Choose Us:
1. Widely used in medium diesel engines and generator unit.
2. The pre-engaged starting style (output gears of motor and gears of diesel engines pre-engaged) makes the starting more reliable and stable.
3. Stable under inflammable, explosive, outdoor, wet, damp and other extremely conditions.
4. Concise structure, compact, in size and light in weight, easy to operate and convenient to maintain.
5. High starting torque enables starting with load, fast and reliable to start and stall.
We hereby confirm that Starting Vane Air Motor for Diesel Engine can be tailor-made to meet customers' special needs and requests, with the highest quality, prompt delivery and first-rate after-sale service.
Technical Parameters:
Working Pressure
|
Max Power
| Parameter at Max Power |
Output Gear Speed
|
Output Gear Torque
|
Air Consumption
|
| MPa | kW | r/min | N.m | L/s |
| 0.4 | 7 | 1600 | 42 | 120 |
| 0.5 | 9 | 1730 | 50 | 150 |
| 0.63 | 12 | 1870 | 64 | 190 |
| 0.8 | 17 | 2030 | 80 | 240 |
