Product Specifications
Prod Model: |
VTJ |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
SMT Solder Paste: |
paste processing equipment |
Product Description

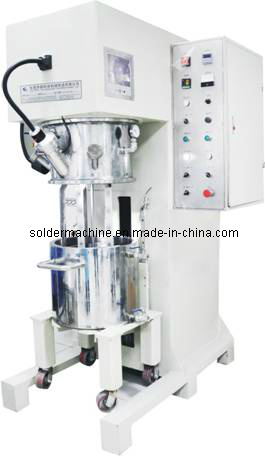

Our newly-developed solder paste mixer machine for your new business opportunity
This set is a high-effective multi-function equipment. It is widely used in
The energy, electronics, capacitor. Cosmetics, daily chemicals and food industry.
Features:
2. Mechanical seal and particular trapeziform seal between the pots ensure
The stuffs operation in vacuum condition.
3. Heating by of electricity. Stream, water or heating oil just upon customer`s choice
4. The pot inner wall is machined accurately and polished by automatic
Polishing machine, which helps to scrappe off the stuffs which adhere to the inner wall easily.
5. The impeller be the tortuous-framed, has a gap of 3-4mm between
The inner wall. Thus the stuffs inside the pot will be mixed adequtely in a more short time,
6. This set adopt planetaxy gear transmission principle. The impeller rotate
On the basis of the revolution of the planetory frame, to ensure the stuffs a more evenly mixed effect.
7. Revolution and rotation adopt invertor control. And one can choose different
Speed according to the stuff and the viscosity factor.
8. Speedy disperser is on customer`s choice. Disperser on the basis of the revolution of the planetary frame, to ensure all stuffs inside the pot being strongly cut, dispersed and mixed adequately. The effect is a flagrant contrast to common mixer.
whisk motor |
3.0 |
Mixing cage revolution speed |
0~50 rpm |
mixing cage rotation speed |
0~50rpm |
mixing tank |
316*¢350mm |
mixing tank design capacity |
30L |
Mixing tank working capacity |
28L |
lifting power |
1.1-4kw |
lifting speed |
1.5m/min |
max hoisting moment |
1450kg |
vacuum pump power |
1.1kw |
vacuum pump rotation speed |
1400rpm |
Max vacuum pressure |
9*10¯² |
evacuation speed |
5L/S |
Frequency |
50+/-2% HZ
|
VICTORY TECHNOLOGY INTERNATIONAL., Ltd. is a HongKong-funded joint venture with about 20 years history and a 33, 000-square-meter standard modernized factory building, which is specialized in equipment developing and manufacturing.
Our cored business scopes are:
Solder wire processing line/Zinc wire processing line/SMT solder powder atomizing line/Paste emulsifying and homogenizing equipment/Vibratory screening machines.
On the principle of "Innovative technology and keeping pace with the world", we are blooming into the largest manufacturer in this field in domestic China. we have been introducing advanced technology from the Europe, Japan and Taiwan, so as to improve our products' performance. Kindly feel free to contact us for more details.
