Product Specifications
| Type: |
Low Frequency Ceramic Capacitor |
| Package Type: |
Surface Mount |
Product Description

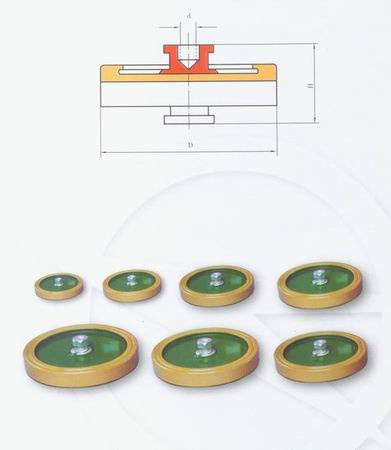

Disc Type Ceramic Capacitor
Doorknob Type High Voltage Low Frequency Ceramic Capacitor
Doorknob Type High Power Ceramic Capacitor
Pot Type High Power Ceramic Capacitor
Tubular Type High Power Ceramic Capacitor
Water Cooling Type Ceramic Capacitor
Applicable in RF circuits
Specifications
Disc Type Ceramic Capacitor
Applicable in coupling, bypass and feedback circuits
Part Number Capacitance
PF Tolerance TC DC KV Power
KVA Size
Rated Test D H d
CCG81-1 100 10% U 12 18 15 50 43 M6
150 15 22 12 50 43
CCG81-2 200 8 16 15 60 43
300 12 18 8 60 39
500 10 15 8 60 39
CCG81-3 50 A 12 18 25 80 39 M6
100 U 13 18 15 80 42
200 15 22 25 80 42
300 15 22 30 80 42
500 15 22 15 80 42
1000 7 11 15 80 38
CCG81-4 300 U 25 37 90 110 56 M8
400 20 30 90 110 56
500 15 22 90 110 56
1000 10 15 30 110 50
1500 7 11 30 110 50
2500 3. 3 6. 6 30 110 50
CCG81-5 500 U 25 37 90 140 54 M8
800 25 37 90 140 54
1000 20 30 100 140 54
1500 15 22 90 140 52
2000 10 15 90 140 50
CCG81-6 500 U 25 37 120 150 52 M8
1500 15 22 100 150 52
2000 20 30 100 150 52
CCG81-7 1500 U 21 30 120 160 52 M8
2000 20 30 120 160 52
2500 10 15 90 160 48
3000 10 15 90 160 48
CCG81-8 1000 U 30 45 300 200 56 M10
1500 30 35 250 200 56 M10
Doorknob Type High Voltage Low Frequency Ceramic Capacitor
Applicable in pulse circuits
Part Number Capacitance
PF Tolerance Temp DC KV Layout Size mm
Rated Test D h H
CT87-1 470 20% 2D 10 20 a b c 31 18 22
35
CT87-2 1000 9 18 a b c 37 20
33
CT87-3 2200 7. 5 15 a b c 47 20
33
2000 20 30 200 200 56 M10
3000 13 18 100 200 56
5000 12 18 80 200 56
Doorknob Type High Power Ceramic Capacitor
Applicable in resonance, coupling, bypass and feedback circuits
Part Number Capacitance
PF Tolerance Temp DC KV Current Max Power KVA
Size mm
Rated H. F D L H
CCG61-1 68 56 47 39 33 27 20% U 4 4 1. 5 3 21 100 17
22 18 15 5 5 1. 5 3 21 17
CCG61-2 56 47 39 8 6 2 4 37 20
10 8. 2 6. 8 4. 7 10 8 2 3 37 20
CCG61-3 33 27 10 10 2 5 37 25
CCG61-4 22 10 10 2 5 37 27
Pot Type High Power Ceramic Capacitor
Applicable in coupling, bypass circuits
Part Number Capacitance
PF Tolerance Temp Voltage( KV) Power
KVA Current
A max Size mm
Rated H. F. D1 D H A B C S d
CCG11-1 150 100 68 47 20% A 10 8 9 5 65 45 90 80 58 68 8 4.1
300 220 150 B 10 8 20 10
1500 1000 680 U 8 5 10 10
CCG11-2 150 100 68 47 A 8 5 7 4 45 30 90 60 40 50 8 4.1
220 150 100 B 8 5 15 8
1500 1000 680 470 U 5 4 8 8
CCG11-3 150 100 68 47 A 4 4 5 3 30 20 80 52 28 40 7 5
220 150 100 B 4 4 10 5
1800 1500 1000 680 470 U 3 3 5 5
CCG11-4
100 68 47 33 22 A 4 4 2.5 2 30 20 50 52 28 40 7 5
150 100 68 47 B 4 4 6 4
1000 680 470 330 220 U 3 3 4 4
Small High Voltage Ceramic Capacitor
Applicable in coupling, bypass and feedback circuits
Voltage Capacitance
2KV 1000pF
2KV 2000pF
3KV 3000pF
6KV 2200pF
Tubular Type High Power Ceramic Capacitor
Applicable in coupling, bypass, filter and feedback circuits in transmitters and high frequency electronic equipments
Part Number Capacitance
PF Tolerance Temp Voltage( KV) Power
KVA Current
A max Size mm
Rated H. F. Test L C
CCG5-1 1000 10% N750 30 12 45 70 40 180 40
CCG5-2 1500 20 10 30 60 168 42
CCG5-3 2200 20 10 30 70 190 48
CCG5-4 3300 15 8 30 70 190 48
CCG5-5 4700 15 8 30 70 180 48
CCG5-6 5600 15 8 30 70 210 48
CCG5-6 5600 20 10 30 80 235 48
CCG5-6 5600 30 20 45 80 300 50
CCG5-7
6800 20 10 30 80 235 48
Drawings and Pictures
Water Cooling Type Ceramic Capacitor
Applicable in RF circuits
Part Number Capacitance
PF Tolerance DC KV Power KVA
Rated H. F
CCGS-1 2000 20% 20 18 1250
CCGS-3 5000 20% 22 20 2500
