High Voltage Diode Hv1036

Name: High Voltage Diode Hv1036
Brand: China-Manufacturer-Directory.com
SKU: 691458252
Availability: InStock
Rating: 4.4 (128 reviews)

Supplier:	Anshan Leadsun Electronics Co., Ltd.
Price:	US $ 1-2/Piece
Min Order:	50/Piece
Quantity::
Trade Terms:	FOB,CIF,DDP

Product Specifications

Prod Model:	HV1036
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Manufacturing Technology:	Discrete Device
Material:	Element Semiconductor
Type:	P-type Semiconductor
Package:	Surface Mount

Product Description

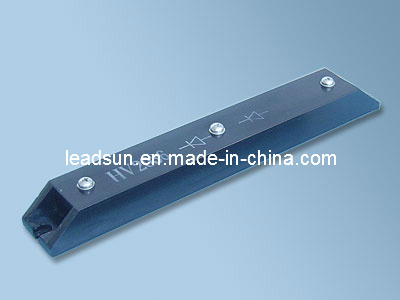

high voltage diode HVP-1036, half bridge of 36KV 1.0A
mounting slots for micro wave oven

HVP series High voltage rectifier block adopts high reliable mesa-structure and diffusion craftwork, epoxy resin molded in a compact structure.

Feature
used in Air
epoxy resin molded in vacuum, have anticorrosion in the surface Tj: -40C—+120C
Application
High voltage rectifier used in electrostatic cleaning
High voltage generator
Industrial microwave power supply

Type	Maximum Peak Reverse Voltage	Maximum Average Rectified Current @Half-Wave Resistive Load 50/60Hz	MaximumForward PeakSurge Current @8.3 ms		Maximum Forward Voltage @25 C Ta		Maximum Reverse Current		Dimension
Type	V_RRM KV	I_F(AV) A	I_FSM A	V_FM V		I_RRM1 μA		I_RRM2 μA	LBH mm
HVP-12	12	1.0	30	12		5.0		50.0	772020
HVP-14	14	1.0	30	14		5.0		50.0	772020
HVP-15	15	1.0	30	15		5.0		50.0	772020
HVP-16	16	1.0	30	16		5.0		50.0	772020
HVP-20	20	1.0	30	20		5.0		50.0	772020
HV1036	36*2	1.0	30	64		5.0		50.0	1802520
HV2036	36*2	2.0	50	64		5.0		50.0	2603525
HV5036	36*2	5.0	100	64		5.0		100.0	2603525
HV6012	12*2	6.0	120	24		5.0		100.0	2603525
2*2CL15KV/1.0A	15*2	1.0	30	45		5.0		50.0	1502020
2*2CL20KV/1.0A	20*2	1.0	30	60		5.0		50.0	1502020
2*2CL25KV/1.0A	25*2	1.0	30	75		5.0		50.0	1802020
2*2CL15KV/1.5A	15*2	1.5	40	45		5.0		50.0	1502020
2*2CL20KV/1.5A	20*2	1.5	40	60		5.0		50.0	1502020
2*2CL25KV/1.5A	25*2	1.5	40	75		5.0		50.0	1802520
2*2CL15KV/2.0A	15*2	2.0	50	45		5.0		50.0	1802520
2*2CL20KV/2.0A	20*2	2.0	50	60		5.0		50.0	1802520
2*2CL25KV/2.0A	25*2	2.0	50	75		5.0		50.0	1802520

This is leadsun electronics from Anshan, China. Our company is specializing in designing and producing types of high voltage components, such as high voltage diodes, high voltage bridge rectifier, high voltage silicon assembly, special high voltage modular, multiply voltage modular and high frequency high voltage power supply. These products are widely applied for electrostatic cleaning, medical X-ray machine, CT, MR, dehydrating of crude oil, broadcast launching, laser power supply, high voltage modular, high voltage test equipment, TV/display FBT, air purifier, power supply, etc.
