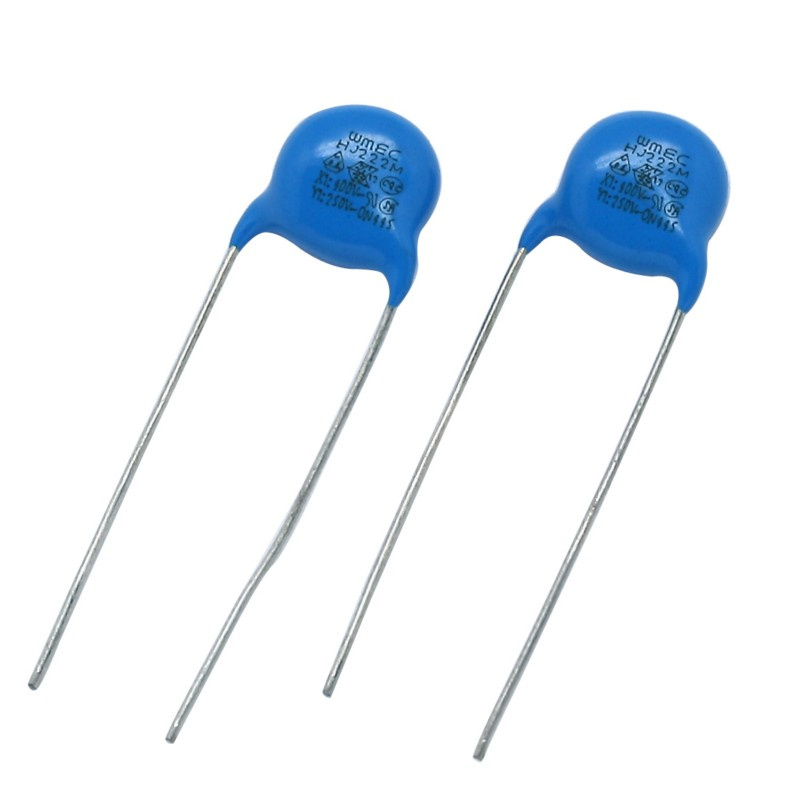

High voltage cermramic disc Capacitors:
HGR series (class 2, low-dissipation factor/DC1kV-3kV)

Features:
1. Reduced heat dissipation permitted due to small dielectric loss of the ceramic material.
2. Wide operating temperature: -25 to 125º C.
3. Coated with flames-retardant epoxy resin. (equivalent to UL 94V-0 standards).
4. Taping available for automatic insertion.
5. Available product for RoHS Restriction. (EU Directive 2006/65/EC)

Applications:
Ideal use on high frequency pulse circuit such as a horizontal resonance circuit for CTV and snuber circuit for switching power supples.
  Code   Temperature Chaaracteristics   Cap, change or temp. coeff   Temperature Range
  B   Y5P   +10%, -10% -25 to +85º C
  E   Y5U   +20%, -55%
  F   Y5V   +30%, -80% -25 to +85º C
  R   Y5R   +15%, -15%
  S   SL   +350 to-1000ppm/º C   -25 to +85º C
  C   NPO   0± 60ppm/º C
  X   X7R   +15%, -15%   -55 to +125º C
  capacitance tolerance
Code capacitance tolerance
  J   ± 5%
  K   ± 10%
  M   ± 20%
Z   +80%, -20%
  Code   Lead Spacing (± 1.0)
  1   2.5mm
  2   5.0mm
  3   7.5mm
  4   10.0mm
Specs and Factors high dielectric Constant type Temperature Guaranteed Type High dielectric constant with low dissipation
Operating temperature range – 25 º Cto +125º C – 25 º Cto +125º C – 25 º Cto +125º C
Insulation resistance 10000MΩ with DC500± 50V within 60± 5sec 10000MΩ with DC500± 50V within 60± 5sec 10000MΩ with DC500± 50V within 60± 5sec
Capacitance at20 º C with 1± 0.2khz and AC1± 0.1V(rms) at20 º C with 1± 0.2khz and AC1± 0.1V(rms) at20 º C with 1± 0.2khz and AC1± 0.1V(rms)
Dissipation Factor at20 º Cwith 1± 0.2khz and AC1± 0.1V(rms)    B, X, E 2.5%Max, F 5%max                                    Q is measured at20 º C with 1± 0.2khz and AC1± 0.1V(rms)    at20 º C with 1± 0.2khz and AC1± 0.1V(rms)  R 0.2% Max, 0.5%Max
Prod Model: HGR
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Series Category: K (Class2)
Type: Ceramic Trimming Capacitor
Package Type: Surface Mount
Application: General Purpose
