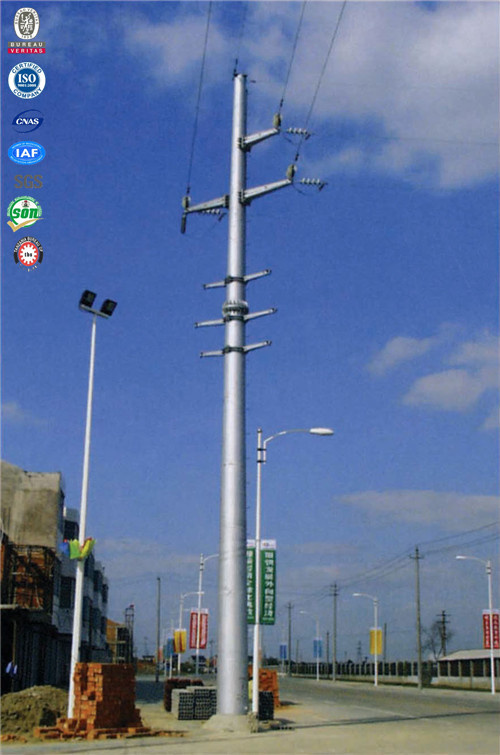

High Voltage Lattice Single Pole Steel Power Transmission Tower

Product Specifications

Prod Model:	1529
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage:	as Per Your Requirment
Certification:	ISO
Materials:	Steel
Standard:	Standard
Style:	Cable Tower
Conductor Circuit:	as Per Your Requirment
Structure:	as Per Your Requirment

Product Description

Power Transmission Tower

1. Based on its shapes, it is generally divided into 5 types: Goblet type, cathead type, cathead type, shaped type and barrel type.
Based on application, it can be divided into: Strain tower, straight line tower, angle tower, transposition tower (tower for transposition of wire phase position), terminal tower and crossing tower, etc.

2. Their structural features are: All kinds of towers are of space truss structures; Bard are mainly composed of single equal angle steel or assembling angle steel; Materials are generally Q235(A3F) and Q345(16Mn); Bars are connected by black bolts with shearing force; Entire tower is composed of angle steels, link plates and bolts; A few components like tower base are assemblies of welded steel plates for convenience of hot galvanizing anti-corrosion, transportation and erection.
3. For steel towers that with height below 60m, shackles are mounted on one of main columns for construction people to climb to work. Our Company is a large scale enterprise specializing in manufacturing of 220KV (330KV) electric power steel tower with advanced manufacturing facility and international top-ranking assembly line.


Available height	5-80m
Electric pressure	10kv--550kv
Material	Q345B/A572,minimum yield   strength>=345MPA,   Q235B/A36,minimum yield strength>=235MPA
Galvanized	Hot dip galvanization,thickness   is>=12um
Delivery lead time	30 days after receiving 30% deposit
Lifetime	Minimum 25 years
Structure	Overlap connection/Flange connection
Galvanizing standard	EN ISO 146,ASTM/A123
Manufacturing and workmanship	BS449 or AISC
Welding standard	BSEN287,BSEN288 or equivalent
