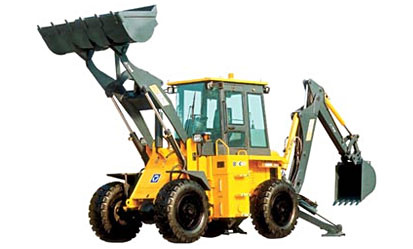

XT8706 is the economic model for the backhoe loader, featuring high efficiency, small turning radius, strong adaptation to the narrow area, and comfortable operation. With high performance-price ratio, the machine is widely applied in bulk shoveling.
High efficiency
Quick action: Total time of three devices is only 9.9s, leading first in the industry for the same kind of product.
Fast speed: The speed of 11.5 km/hour for the operation, quick shoveling.
Flexible steering: Load sensing steering, convenient and efficient.
Sufficient power: Double pump interflow and high efficiency, use the power sufficiently and save the fuel.
Excellent performance
High dumping height, long dumping distance: Dumping height of 3145mm, dumping distance of1220mm, ensuring sufficient operationspace and well adaptation to various working conditions.
Excellent wheel base and well adaptation: Moderate wheel base of 2900mm, compact frame structure, small turning radius and sufficient operation stability.
Well heat dissipation: The optimized hydraulic oil and cooling water radiating order. The drive oil-water cooling settles the heat balance issue.
High strength
Key structural parts adopt finite-element analysis, adapting to various kinds of conditions.
Integrated casting support lug, strong carrying capacity.
Long service life
The key articulated positions feature two-stage dust-proof, less abrasion and longer service life.
Wear resistant blade and bucket teethfeature longer service life.
The bucket bottom is equipped with wear plate, prolonging the service life.
The hydraulic pipe adopts 24° Cone and O ring, settling the issue of leakage.
The adopted engine of famous brand features strong power and high efficiency and energy saving.
The latest generation of planetary transmission features high reliability and strong carrying capacity.
The experienced XCMG special drive alxe is leading in the industry in terms of the driving efficiency and load capacity.
Conveninent maintenance
Optimized brake caliper structure, more convenient for the maintenance.
The hood adopts the large side door of sliding upward, featureing large opening angle, and more convenient for access.
Large space in the articulated position of the front and rear frames improves the maintenance convenience of pump, valve, hydraulic pipe and pin.
Comfortable operation
New cab features large space and wide visibility.
The adjustable luxury seat features comfortability and elegance.
The optional air conditioner provides the comfortable operation condition.
Two breakthroughs in industry
Internal breakthrough: Regarding the common issues of the transmission, XCMG makes great improvement in terms of the carrying capacity and reliability. The service life of the key parts are greatly prolonged.
External breakthrough: XCMG starts the vehicle manufacturing technology first in China; Including metal cover part and mould pressing, pulsation welding and electrophoretic coating.
|
Overall Dimensions(LXWXH) |
8100×2366×3680mm |
|
Overall Weight |
8400kg |
|
Bucket Capacity |
0.8-1.2m 3 |
|
Dumping Height |
2570 mm |
|
Dumping reach |
745 mm |
|
Digger capacity |
0.2-0.35 m 3 |
|
Max. digging depth |
4495 mm |
|
Engine model |
LR4105G90 |
|
Rated power |
60KW |
|
Rated speed |
2400r/min |
|
Min. fuel consumption |
224g/KWh |
|
Overall Dimensions(LXWXH) |
8100×2366×3680 mm |
|
Overall Weight |
8400kg |
|
Bucket Capacity |
0.8-1.2m 3 |
|
Dumping Height |
2570 mm |
|
Dumping reach |
745 mm |
|
Digger capacity |
0.2-0.35 m 3 |
|
Max. digging depth |
4495 mm |
|
Engine model |
LR4105G90 |
|
Rated power |
60 KW |
|
Rated speed |
2400r/min |
|
Min. fuel consumption |
224g/KWh |
