Price: | US $ 2200/Set |
---|---|
Trade Terms: | FOB |
Min Order: | 1/Set |
Pay Type: | L/C,T/T,Money Gram,Western Union |
Trolley foam fire extinguisher, portable foam unit, portable foam fire extinguisher, portable foam monitor, foam trolley

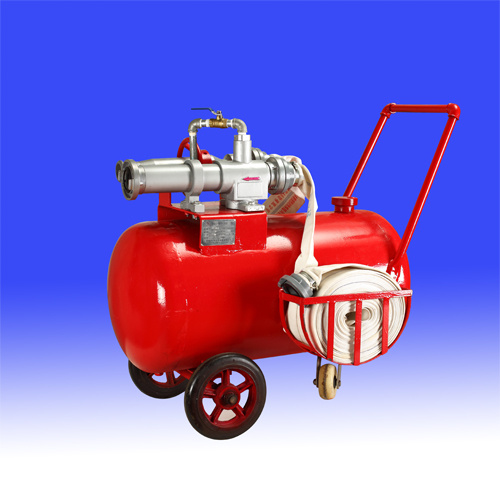

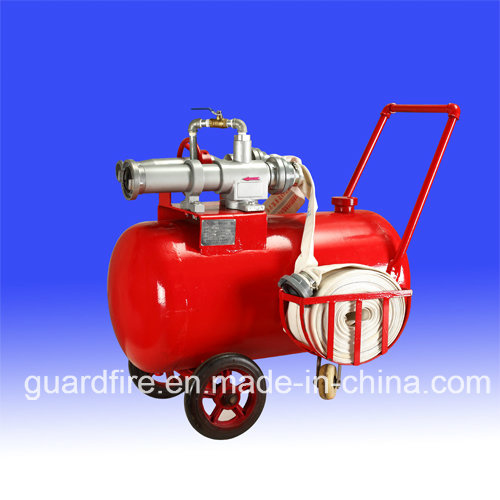

PY series Half- fixed (Portable) Foam agent Fire Extinguisher
This kind of fire extinguisher consists of the foam maker (foam gun), foam proportioner (foam proportioning unit), fire hose, foam concnetrate storage tank, foam monitor / nozzle and the trolley. It is mobile, flexible and easy to move, operate, so it has been widely used in oil industries, museums, airports, bus and railway stations workshops / warehouses as well as other places where there is a fire hazard.
Products details-AFFF:a.3% b.6%
PARTS:BRASS VALVE, HOSE W/FOAM NOZZLE MONITOR, CYLINDER IN RED PAINTING, PRESSURE GAUGE, TROLLEY,ETC
Model | Rated Flow | Working Pressure | Cylinder Volume | Mixture Ratio | Matched Foam Gun Model | Matched hose Specification |
Q (L/S) | MPa | V ( L) | % | DN (mm ) | ||
PY4/100 | 4 | 0.6~0.8 | 100 | 3 or 6 | PQ4 | 50 |
PY4/200 | 200 | |||||
PY8/300 | 8 | 300 | PQ8 | 65 | ||
PY8/500 | 500 | |||||
PY16/500 |
Prod Model: | PY4 PY8 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Mixing Ratio: | 3% or 6% |
Model Number: | Py4 Py8 |
Working Pressure: | 5 Bar to 12 Bar |
Flow Rate Range: | 4 L/S ,8 L/S or 16 L/S |
Capacity: | 30L up to 500L |
Description: | Available |
Operation / Usage: | Trolley Foam Fire Ext |
Utility: | Oil Industries, Museums, Airpor |
Accessories: | Fire Hose , Fire Nozzle |
