Product Specifications
| Prod Model: |
LS-6150+ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Specimen Vertical Stroke: |
59mm |
| Specimen Horizontal Stroke: |
25mm |
| Maximum Specimen Size: |
55mm * 55mm |
| Specimen Fast Moving Speed: |
0.7mm/S |
| Dimensions (W*L*H): |
650(780mm Including Handwheel)*700*1152mm |
| Specimen Capacity: |
20 |
| Type: |
Separation Type |
Product Description

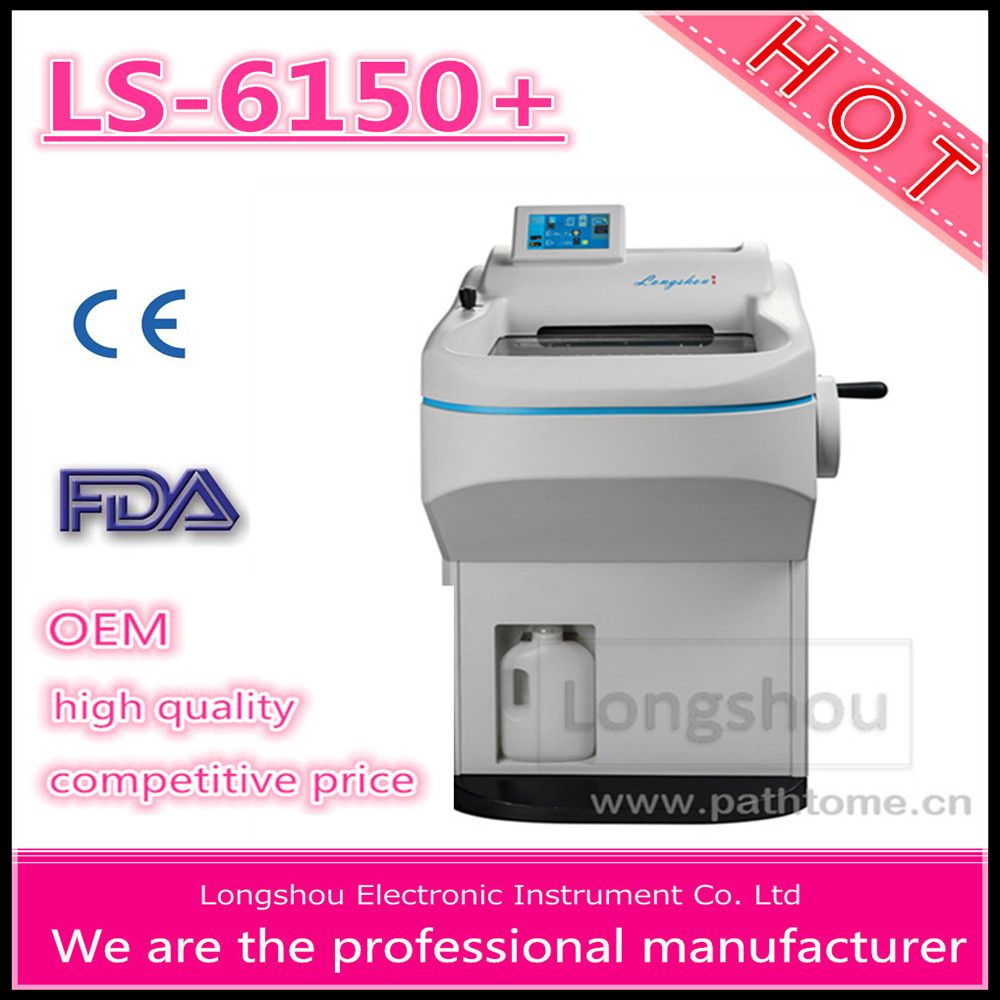

LS-6150+ semi-auto cryostat microtome with touch screen
Precise, comfort & safe! The highest cost performance microtome in the high-end international market!
| Freezing chamber temperature range | -35ºC~-10ºC |
| Freezing shelf minimum temperature | -45ºC |
| Number of heat extractors | 2 |
| Section thickness range |
0μm~100μm adjustable;
0μm~10μm, in 1μm increment;
10μm~20μm, in 2μm increment;
20μm~50μm, in 5μm increment;
50μm~100μm, in 10μm increment;
|
| Trimming thickness range |
0μm~500μm adjustable;
0μm~20μm, in 2μm increment;
20μm~50μm, in 5μm increment;
50μm~100μm, in 10μm increment;
100μm~500μm, in 50μm increment;
|
| Specimen vertical stroke | 59mm |
| Specimen horizontal stroke | 25mm |
| Maximum specimen size | 55mm * 55mm |
| Specimen clamp's max adjustable angle | 12° |
| Specimen fast moving speed | 0.7mm/s |
| Voltage and frequency | AC220V±10%, 50Hz(Standard),
or AC110V±10%,60Hz |
| Power | 650W |
| Specimen capacity | 20 |
| Refrigerant | R404A,300g±5g |
| Dimensions (W×D×H) | 650(780mm including handwheel)×700×1152mm |
| Weight | 145kg |
Appearance
One-time injected model cover; microtome
Anti-fog heating glass design;
Chromatic liquid crystal touch screen.
Modular control system
Microtome controlled by touch screen or joystick;
Defrost automatically / manually;
Hibernation automatically / manually, wake up in 15 minutes
UV sterilization;
Semi-conductor refrigerant;
Slice number and thickness calculation;
Microtome
Retraction.
High precision guide rails made in Germany make transmission smooth, durable and be able to cut hard sample;
Specimen clamp enables to adjust triaxially with a center block.
Light handwheel with locking device on it;
Extra large chamber with wide freezing shelf may hold 20 specimen discs meanwhile.
With waste tray and instrument rack;
Wide or narrow blades optional.
A anti-fatigue cam lock ensures blade clamp tight.
Blade clamp can be moved horizontally on the guide rail for safety and making full use of a blade
Glass anti-rolling plate is horizontally, verticality adjustable, and also able to adjust angle and gap with pressing plate.
A pushing rod pops the blade out.
