Product Specifications
| Prod Model: |
HKY1100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Main Motor Power: |
4kw |
| Hydraulic Station Power: |
3kw |
| Sprocket: |
P-25.4 |
| Material Of Roll: |
45#Steel Hard Chrome Plate |
| Length Of Production Line: |
10m |
| Installation Dimension: |
6.5m*1.5m*1.4m |
| Diameter Of Principal Axis: |
70mm |
| Type: |
Arc Type Glazed Roll Forming Machine |
| Certification: |
CE, ISO, SGS |
Product Description

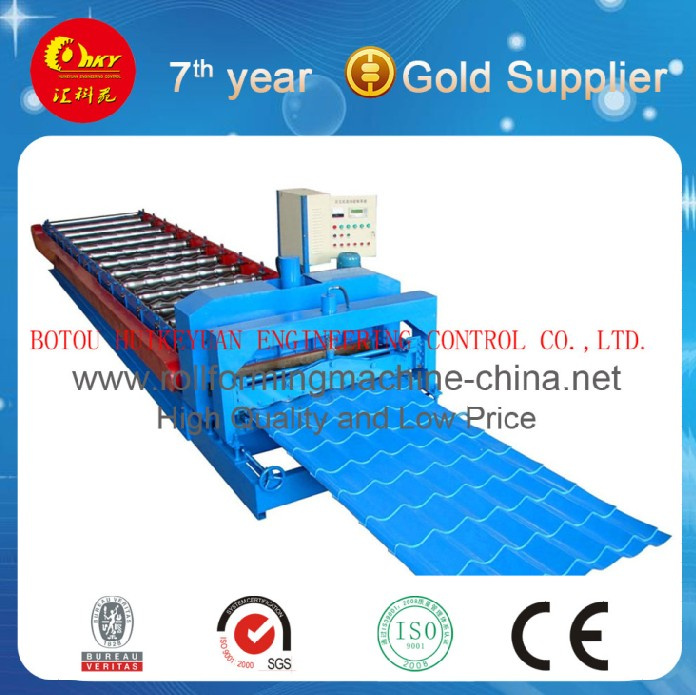

HKY1100 Arc Type Glazed Roll Forming Machine
Technical parameters:
1. Main Motor Power: 4kw
2. Hydraulic Station Power: 3kw
3. Sprocket: P-25.4
4. Forming Station: 9
5. Material of Roll: 45#steel hard chrome plate
6. Length of Production Line: 10m
7. Installation Dimension (L*W*H): 6.5m*1.5m*1.4m
8. Diameter of Principal Axis: 70mm
9. Hydraulic Oil Pump: CB-E310
10. Material of Blade: Cr12
11. Thickness: 0.3-1mm
12. Length of Tolerance: ± 2mm
13. Cover Width: 1100mm
14. Coil Width: 1250mm
15. Processing Speed: 2-4m/min
16. Total Weight: 4.8T
17. Equipment Parts: 5T decoiler, roll forming machine, forming press system, hydraulic system, computer control and counter.
PRODUCTS WARRANTY
12 months, and we will provide the technical support for the whole life of the equipment.
USAGE AND FEATURE
The feature looks beautiful, elegant and noble. Those are widely used in building the factory, hotel, and mobile house and so on.
This kind of machine has the best quality and the best price. It has accurate measurement and easy operating. We can design and manufacture the special type machine according to the customers' requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
REMARKS
1. The machine can according to your requirement to set the color
2. Within in one year if any parts go broken we will send new ones to replace for free
3. If you want to learn more about the product please login our website or contract to us
SERVICE
One years for free, after the warranty period. We will help you repair the machine, you only responsible for the labour and parts, when the machine have some problem
EXPORT MARKET
Russia, India, English, Australia, America, Kazakhstan, Tajikistan, Malaysia, Nigeria, Rumania and Albania etc, more than 50 countries and regions.
Glazed tiles series
This type of glazed tile has advantage including beautiful, classical appearance and grace taste. It can be widely used in villadom, hotel, exhibition, vocation village, family construction and outdoor decorate.
This machine is composed of feed leading table, main forming machine, mould former device, cutting device, hydraulic station, computer control system and so on...
Optional devices: Normal holder, hydraulic holder, auto-stacker and discharge table.
Features of this producing line:
Lower cost
High efficiency
Reliable working
Low energy consumption
Technical pararmeter of product line:
Applied plank stuff: Color amor plate
Applied slab thickness: 0.3-0.7mm
Charge in width: 1000mm-1200mm
Line speed: 0.9m/min
Roll diameter: 70mm
Dimensions: 6.8m*1.8m*1.5m
Weight: 3.8t
Power: 3kw+3kw
Process flow:
Decoiling-loading-molding-cutting-off-discharging
Processing technique and deployment:
Uncoiler
Feeding platform
Molding core
Molding shearing mechanism
Hydraulic station
Computer control cabinet
Counter
Optional equipment:
· Manual uncoiler frame in different tons
· Hydraulic automatic uncoiler
Why choose us?
NO. 1 We can make and design all kinds of roll forming machine according to customer's requests.
No. 2 This is a very perfect and durable equipment. We have more than 13 years experiences.
NO. 3 This kind of machine has the best quality and the best price. It has accurate measurement
And easy operating
NO. 4 We can design and manufacture the special type machine according to the customers' requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
No. 5 Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
We warmly welcome to visit our professional factory & manufacture machines according to your demand.
Contact person: Sandy Wang
You can conatct me any time(24 hours services):
Mobile: +86-15130763157
|
NO.1 |
We can make and design all kinds of roll forming machine
according to customer's requests. |
|
No.2 |
This is a very perfect and durable equipment.
We have more than 13 years experiences. |
|
NO.3 |
This kind of machine has the best quality and the best price.
It has accurate measurement and easy operating |
|
NO.4 |
We can design and manufacture the special type machine according to the customers' requirement
and we could provide technical guiding, production,
installation, debugging and maintenance service to all customers. |
|
No.5 |
Our product has been exported to many regions
and won high reputation because of the high quality
and reasonable price. |
Botou Huikeyuan Engineering Control Co., Ltd is the "Important individually-run enterprise"of Botou City. Since many years, we devoted ourselves to develop the metal-plate cold forming machine, now we have unique management pattern and products development ability. Our company leads first in the same field. Our products have light structure and reasonable design, they won praise from same steel structure field because of the innovation constantly.
The company is located at side of No. 104 national road in Botou City, which is the famous casting city in China. The company covers an area of over30, 000 square meters. We have near 100 technicians in different skills. We remain the first-rate level on design and production of C-type and Z-type steel equipment, at the same time, we increased the tile press computer control system production line, antique glazed tile machine production line, H-type steel machine production line, big-span, no-beam structure equipment production line and automobile carriage board machine production line. We can design and manufacture the special type machine according to the customer's requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
According to the requirements of market, ou company produced new and high technological products-KDQ type quantified cutting control system in Jan. 2000. This control system has functions of measuring, monitoring and early warning. It has high starting point, accurate measurement, easy operating and complete monitoring. It is the originated one in domestic, a breakthrough of cutting control on microcomputer technique and the miracle of rutting fields.
At recent years, large of products were sold to Russia, India, England, Australia, America, Kazakhstan, Tajikistan, Malaysia, Nigeria, Rumania and Albania etc, more than 50 countries and regions. ur products won acclaim from all customers in domestic and abroad.
