Product Specifications
| Prod Model: |
HLG-816 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Printer Size: |
380 Mm * 250 Mm * 220mm |
| Print Speed: |
76.2 Mm/S-127 Mm/S |
| Interface Type: |
USB |
| Usage: |
Barcode Printer |
| Style: |
Black |
Product Description

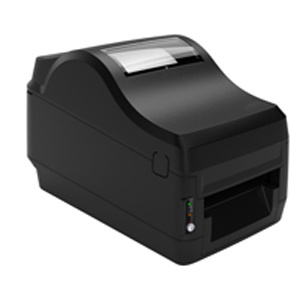

HLG-816 Barcode printer
Specification
Specification
ModelHLG-816
Resolution203 dpi
Methodsthermal, thermal transfer
Print Speed76.2 mm/s-127 mm/s
Print width25 mm (1 inch) - 104 mm (4.10 inch)
Print length12 mm - 2000mm
Paper width118 mm (MAX)
Printer size380 mm * 250 mm * 220mm
Specifications of label
Reel inner8 inch(Max)
Central spindle30mm (1 inch) / 40 mm (1.5 inch) / 76.2 mm (3 inch)
Paper thickness0.06 -0.25 mm
Paper roll length180 m(unique huge storage of paper)
Specifications of Ribbon:
Typethe volume type
Outer diameter64 mm (Max)
Central spindle25.4 mm (1 inch)
Width30 mm - 110 mm
Length300 m
Materialgeneral wax type, mixed type, scraping resistance, resin type
Paper detectorback rubber label paper, between the black, mark paper, continuous or folding label paper, no receipt of back glue paper, label length manually or automatically detects command forces control, reflection and transmission
FontAll fonts in windows system
Memory16MB
Flash8 MB
ImagePCX, BMP, the control software can support the ICO, WMF, JPG, EMF, through software control chart can be form for any size amplification, narrow, rotation, mirror and white
BarcodeCode39, Code93 Code128, UCC - 128, POSTNET, Codabar, UPC - A,
UPC - E, ENA - 128, Interleaved 2 of 5, EAN - 8, Add2, Add5, Maxicode,
PDF417 drug regulatory codes, electronic supervision code, such as mail barcode all bar code via software.
Environment5 to 40 ° C
Temperature- 20 to 50 ° C
Input power: 100/240 vac, 50/60 hz (ac/dc switching power supply automatically)
InterfaceUSB
LEDReady, Status
Control buttonFeed
DriverWindows 95, 98, me, NT4.0, 2000, XP, Windows 7, Windows 8
| Specification |
| Model | HLG-816 |
| Resolution | 203dpi |
| Methods | thermal, thermal transfer |
| Print Speed | 76.2 mm/s-127 mm/s |
| Print width | 25 mm (1 inch) - 104 mm (4.10 inch) |
| Print length | 12 mm - 2000mm |
| Paper width | 118 mm (MAX) |
| Printer size | 380 mm * 250 mm * 220mm |
| Specifications of label |
| Reel inner | 8 inch(Max) |
| Central spindle | 30mm (1 inch) / 40 mm (1.5 inch) / 76.2 mm (3 inch) |
| Paper thickness | 0.06 -0.25 mm |
| Paper roll length | 180 m(unique huge storage of paper) |
| Specifications of Ribbon : |
| Type | the volume type |
| Outer diameter | 64 mm (Max) |
| Central spindle | 25.4 mm (1 inch) |
| Width | 30 mm - 110 mm |
| Length | 300 m |
| Material | general wax type, mixed type, scraping resistance, resin type |
| Paper detector | back rubber label paper, between the black,mark paper, continuous or folding label paper,no receipt of back glue paper,label length manually or automatically detects command forces control,reflection and transmission |
| Font | All fonts in windows system |
| Memory | 16MB |
| Flash | 8 MB |
| Image | PCX, BMP, the control software can support the ICO, WMF, JPG, EMF, through software control chart can be form for any sizeamplification, narrow, rotation, mirror and white |
| Barcode | Code39, Code93 Code128, UCC - 128, POSTNET, Codabar, UPC - A,
UPC - E,ENA - 128, Interleaved 2 of 5, EAN - 8, Add2, Add5, Maxicode,
PDF417 drug regulatory codes, electronic supervision code,suchas mail barcode all bar code via software. |
| Environment | 5 to 40 ° C |
| Temperature | - 20 to 50 ° C |
| Input power: | 100/240 vac, 50/60 hz (ac/dc switching power supply automatically) |
| Interface | USB |
| LED | Ready, Status |
| Control button | Feed |
| Driver | Windows 95, 98, me, NT4.0, 2000, XP, Windows 7,Windows 8 |
