Dongguan Hongming Machinery Co., Ltd. >> Hm-Zd6418 Automatic Box Machine for Cell Phone Box

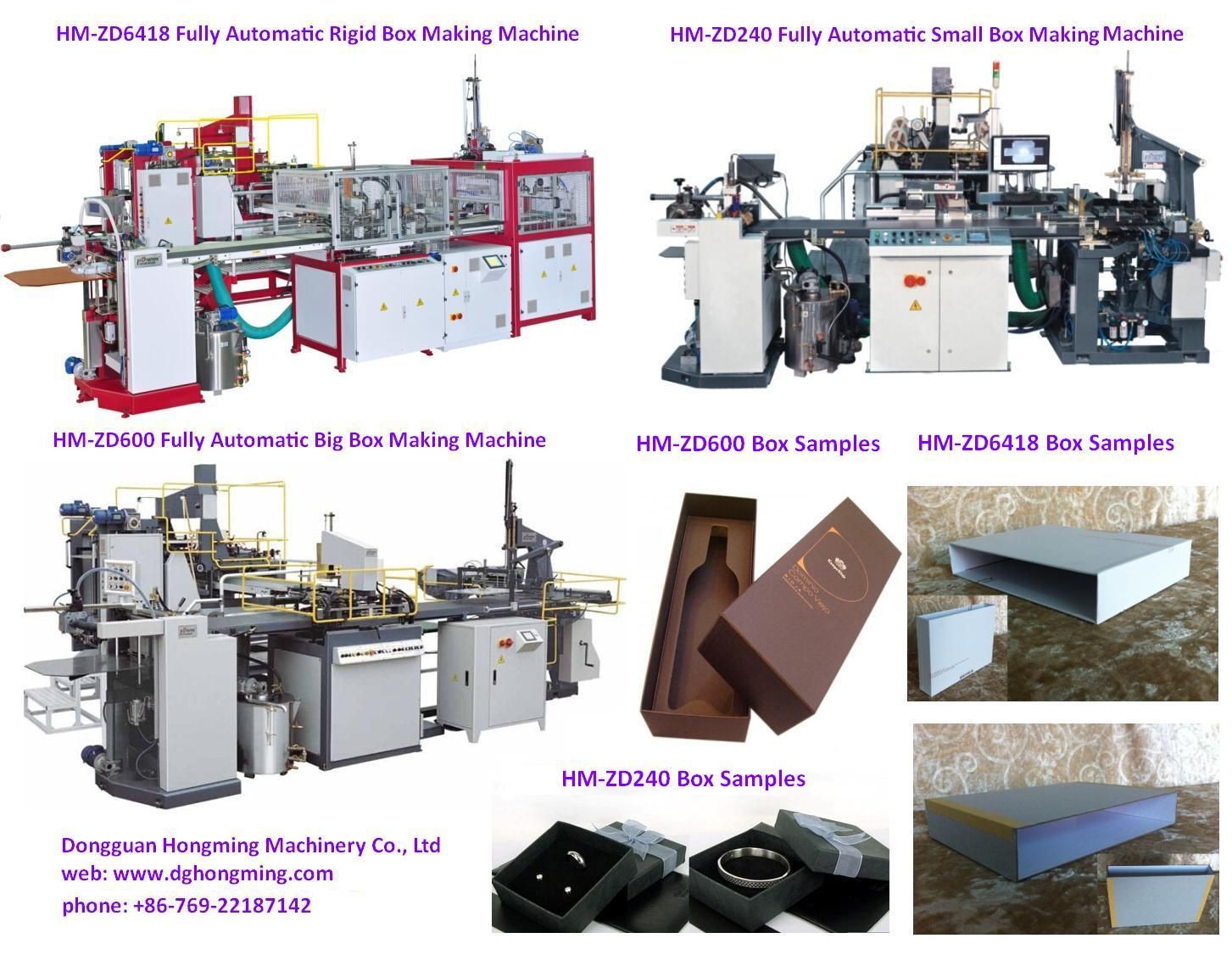

Hm-Zd6418 Automatic Box Machine for Cell Phone Box

Hm-Zd6418 Automatic Box Machine for Cell Phone Box
Supplier: Dongguan Hongming Machinery Co., Ltd.
Price: US $ 1/Piece
Min Order: 1/Piece
Quantity::
Trade Terms: FOB
contact supplier

Product Specifications

Prod Model: HM-ZD6418
Markets: North America,South America,Eastern Europe,Southeast Asia,Mid East
Warranty: 1 Year
Aftersale Service: Engineer Available Overseas
Glue Type: Hot-Melt Glue, Cold Glue, Animal Glue, Bone Glue
Tape Type: Paper Tape, PVC Tape
Air Compressor: Needed, 7.5kw
Driven Type: Electric
Output Products: Rigid Box, Set-up Box, Pull-up Box, Paper Box
Coverpaper Thickness: 80GSM-160GSM
Folding-in Size: 15-100mm
Net Weight: 6500kg
Automatic Grade: Automatic
Type: Box Making Machine

Product Description

HM-ZD6418 Automatic Machine for Cell Phone box

1. Suitable for all kinds of rigid boxes automatic production

2. Computer control with auto error display and function of change mould automatically

Function of automatic Fault diagnosis

Automatic Feeding Cover Paper and Cardboard
24 hours control glue pre-heating
Match with 300 product formula, and can plus 2G memory card additional
7
Hot-melting adhesive automatic conveying, cutting and finish pasting the inner box quad stayer (Four angles) of cardboard in one process

The whole machine employs Japan AnChuan servo and Omron control system

Rectifying positioning system (Spotter Accuracy ± 0.2MM
The box-forming unit can automatically collect boxes and deliver them to the forming unit.

Model HM-ZD6418
 Cardboard Size   Widest C 680mm
Longest D 920mm
Cardboard Thickness 1~3mm
  Paper Size   Narrowest A 95mm
  Widest A 710mm
  Longest B 950mm
  Shorest B 180 mm
Coverpaper Thickness 80gsm-160gsm
Paper corner Edge Longest E 125 mm
Wrapped Box Size Longest L 600 mm
Shorest L 80 mm
Widest W 400 mm
Narrowest W 35 mm
Highest 190 mm
Lowest 12 mm
Folding Edge Size Folding-in Size R 15-100mm
Speed ≤40PCS/min
Machine Power 24KW
Heating Power 4KW
Net Weight 6500KG
Machine Dimension 6800mm*4500mm*3300mm

Dongguan hongming machinery Co., Ltd. is the leading professional automatic rigid box making machines and hardcover books making machines manufacturer in China. It was established in 1999.

Our main machines include the related automatic rigid box making machines, the related semi-auto rigid box making machines, the related hardcover books making machines. These machines are widely used to making cell phone boxes, cosmetic boxes, wine boxes, shoe boxes, chocolate boxes, etc.

Now we have a modern factory covered 20000 square meters and we are equipped with advanced CNC processing center, casting machining center, painting center. Furthermore, we have a R&D team with more than 20 people. With all of these, we are qualified to manufacturer high quality and high precision machine with CE certificate.

During the past 14 years, we lead the market by providing the related automatic rigid box making machines, the related automatic case making machines, the related semi-auto rigid box making machines to the domestic and international market. We have exported our related different packaging machines in India, Malaysia, Vietnam, Thailand, Russia, Poland, great Britain, Spain, Portugal, Turkey, Brasil, Mexico, Saudi arab, Egypt, etc.

Today, we are dedicated to supplying all our customers with the whole solution in high quality machines, the related rigid box making and services through our constant efforts.

Company profile
1999, created by Mr. Arthur King, and successfully developed semi-automatic rigid box machine which completely changed the history of Chinese in the history of gift boxes produced by hand.

2000, Hongming Machinery successful R & D and production of semi-automatic hardcover book cover machine.

2001, Hongming put quality as a fundamental, human nature to continually improve the product and turn to mass production, and finally occupy the local market through rigid box machines.

In January 2002, Hongming proceed with the development of HM-DA660 Automatic Case Maker. In the meantime, semiautomatic case maker already successfully sold into international market and successfully obtained the European CE certification

2003, Hongming embarked on the development of automatic rigid box machine, and the DA600 made rapid progress, and in the second half of 2003 the first automatic case maker successfully succeeded in the trial and sold to customers.

2004, Hongming put DA660 as the future development of 10 years, the main products, small batch production.

By the end of 2004, Hongming has successfully developed the HM-ZD600 Automatic rigid box machines.

2005, DA660 was in mass production, the HM-ZD600 Automatic rigid box making machine finish test and sold to customer in good running.

2006, Hongming increase production of HM-DA660, from three sets to 5 sets per month, HM-ZD600 Automatic rigid box machines has entered the small production.

In 2007, Hongming sold 50 sets of HM-DA660 Automatic case maker in local market and overseas succefully. HM-ZD600 Automatic rigid box machines have got good reputation in China and overseas markets. Hongming works with a number of overseas agents, and laid a good after-sales service for overseas sales.

In 2008, Hongming succeeded in developing the HM-ZD240 Automatic rigid box machines.

In 2009, Hongming has successfully developed the HM-ZDS240 automatic plastic box machine for jewelry boxes.

2010, Hongming makes a new record in sales, exceeded 18 million.

2011, Hongming invested large sums of money to relocate the new plant to devote more R & D and production of gift boxes and hardcover equipment.

Hongming's automatic machines have gained good reputation in China and the world. Hongming also make corresponding improve and perfect, and started to develop more advanced, more automated, more humane device in accordance with the domestic market requirement.
