Product Specifications
| Prod Model: |
HMK-22 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Overview

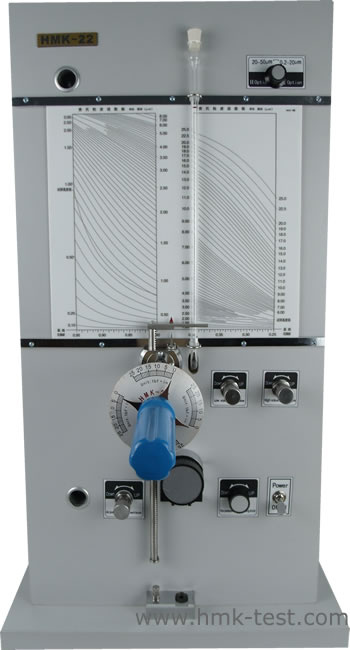

HMK-22 Fisher Sub-Sieve Sizer/Average Particle Size Analyzer (FSSS) uses air permeability to fast determine the average particle size of powders. It complete meets international standard ISO 10070 Metallic powders Determination of envelope-specific surface area from the measurements of the permeability to air of a powder bed under steady-state flow conditions
And ASTM B 330 Standard Test Method for Fisher Number of Metal Powders and Related Compounds. HMK-22 is a necessary testing method in productions and research fields such as magnetic materials, powder metallurgy, refractory metal, special ceramics, tungsten materials, hard metal, nonferrous metal, nonmetal, chemical industries, building materials, national defense function material, etc.
Technologies
-ISO 10070 Metallic powders Determination of envelope-specific surface area from measurements of the permeability to air of a powder bed under steady-state flow conditions
-ASTM B 330 Standard Test Method for Fisher Number of Metal Powders and Related Compounds
Specifications
Voltage Requirement: 220V/115V (+ or -10%), 50-60 Hz
Power Requirement: 0.3AMPS (30 Watts)
Range
-Average Particle Diameter: 0.2 to 50 microns (um)
-Porosity: 0.40 to 0.80
Repeatability: <3%
Accuracy: <3%
Test Method: Air permeability
Shipping Weight: 18kg (38 lb. )
Instrument Dimensions: 41.8cm W x 24.6cm D x 73.7cm H
Features
-Stable performance
-User-friendly operation
-Good repeatability
-Fisher pump made of wear-resistant metal
-Working in stable pressure without any noise
-Long working time
-Specific surface area is also an output
-Extended porosity range
Manufacturer
-AimSizer is one of the world leading manufacturer of Fisher Sub-Sieve Sizer/Average Particle Size Analyzers
-HMK-22 Fisher Sub-Sieve Sizer meets ASTM and ISO International Standards.
Please know more at http://www.aimsizer.com/particle_size_analyzer_fisher_sub_sieve_sizer_0.2um_50um.html
