Product Specifications
| Prod Model: |
Q37 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Hook Type Shot Blasting Machine |
| Color: |
Selectable |
| Main Material: |
Metal |
| Size: |
Non-Standard |
| Design: |
According to Workpiece Specification |
| Spare Parts: |
Available |
| Test: |
Before Delivery |
| Warranty Time: |
One Year |
| Hook: |
Single or Double |
| OEM: |
Acceptable |
| Application: |
Foundry and Casting Industrial |
| Certification: |
ISO9001 |
Product Description

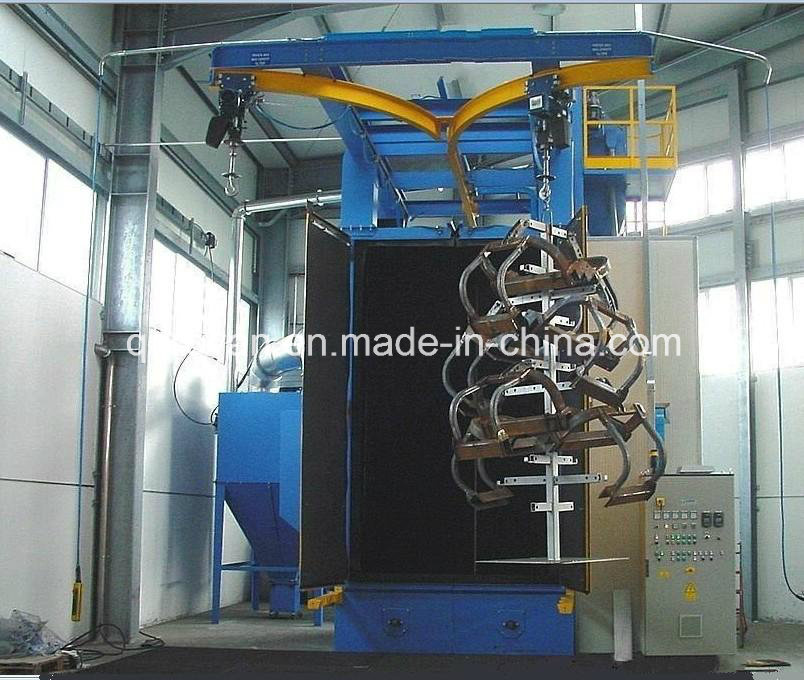

Q37 QT37 series Hoist Hook Shot Blasting Machine for Batch Production
It is mainly used for surface cleaning and strengthening of steel structural parts,castings,aluminum alloy parts and other spare parts.It is widely used in foundry,mechanical and steel industry .
This series has following advantages:no pit,double hook without rail exchanging,compact structure,and high productivity.
Hoist Hook Shot Blasting Machine for Batch Production Technical parameter
type |
Workpiece size(mm) |
single
hook load(kg) |
capacity
(kg/min) |
lifting capacity
of hoist(t/h) |
separator capacity(t/h) |
ventilation
capacity(m³/h) |
power(excluding dedusting)(kw) |
Q376 |
Φ600*1100 |
500 |
2*120 |
15 |
15 |
5000 |
19 |
Q378 |
Φ800*1500 |
1000 |
2*200 |
22 |
22 |
8000 |
32.5 |
Q3710 |
Φ900*1600 |
1000 |
2*250 |
30 |
30 |
9000 |
36.55 |
QD3710 |
Φ900*1600 |
1000 |
2*250 |
30 |
30 |
9000 |
39.65 |
Q3720 |
Φ1400*2300 |
2000 |
3*250 |
45 |
45 |
15000 |
61.27 |
Q3730 |
Φ1600*2300 |
3000 |
3*250 |
45 |
45 |
15000 |
64.4 |
Q3750 |
Φ1800*2500 |
5000 |
4*250 |
60 |
60 |
18000 |
78.4 |
Q3780 |
Φ2000*3000 |
8000 |
4*250 |
60 |
60 |
20000 |
81.5 |
Hoist Hook Shot Blasting Machine for Batch Production service
1.Reply you in the 24h
2.Reply you in English
3.Hook Type Shot Blasting Machine Design according to technical requirement
4.Special discount and protection of sales are provided to distributor of Hook Type Shot Blasting Machine
5.We could do the field test to show the Hook Type Shot Blasting Machine operation and work effect
6.We are Hook Type Shot Blasting Machine manufacture, we could promise the quality and price
Qingdao Rovan Machinery Co., Ltd
1.Established in 2001the factory is located in Qingdao, China.
2.Mainly manufacture shot blasting machine, Hook Type Shot Blasting Machine, dust collector, microseism squeeze molding machine/sand molding machine, core shooter machine, resin sand production line, clay sand production line, etc.
3. Hook Type Shot Blasting Machine has ISO9001 and CE certification,
4. Hook Type Shot Blasting Machine OEM also could provide for you.
Qingdao Rovan Machinery Co., Ltd. Was established in 2001, intergrated scientific research, design, manufacture, debugging installation consulting service professional equipment manufacture ent erprises.
The company has always been adhering to the 'win-win' business purposes, to provide customers with quality products and services while focusing on self-construction, introduced ISO9001 quality management system, and built a 100 highly qualified employee to be strong backing.
The company mainly produces casting machinery, rubber machinery and accessories, the products are mainly for shipbuilding, the tire manufacture and the road shot blasting machine, mobile shot blasting machine, tunnels and other special equipment, including clean-up, casting, three series of vulcanizing machine, near dozens of varieties.
The company has always adhered to the 'innovation, pragmatic' entrepreneurial spirit, innovation research out variety of new products. The products are sold throughout the country, excellent quality and perfect service have won the trust of customers, achieved a high market share, the company also won the title of 'Quality Trustworthy Enterprise'.
The company is located in the New Blue City Jiaonan, east of Qingdao, the Huangdao, and Liu Ting International Airport, north of Jiaozhou-Jinan Railway and Jinan-Qingdao Expressway, advanced geographical location.
The company in principle win-win cooperation, welcome new and old customers with us create brilliant!
