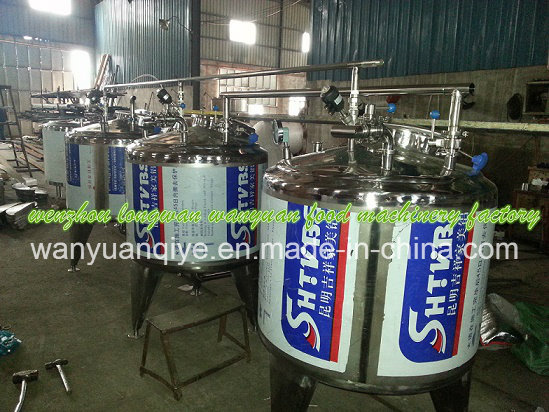

Holding Tank for Beverage Processing
Product Specifications
| Prod Model: |
WANYUAN |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Holding Tank/ Mixing Tank |
| Capacity: |
100L-3000L |
| Material: |
Stainless Steel 304/316 |
| Thickness: |
2-5mm |
| Layer Number: |
Single/ Double/ Tri-Layer |
| Mixing Speed: |
36rpm/120rpm/ 1980rpm |
| Application: |
Beverages |
| Customized: |
Customized |
Product Description
Holding tank for beverage processingUse for buffer beverages in the processing line, also can used as a fermentation tank, of course increase a set of motor, its a mixing tank.
The specifications can be customized according to your requirements.Holding tank-Mixing tanks ApplicationsMainly used in a mixture of liquid materials, such as fruit juice, milk and so on.Holding tank-Mixing Tank <Blending tanks> mainly made of stainless steel, used for Mixing different liquid together.
Also, you can use this mixing tanks to mix liquid and power to make a mixture.
Mixing tanks can be with different mixing speed. Such as 36rpm, 60rpm fixed mixing speed. But due to some production reqeust, you may need the blending tanks with variable speed, such as 8 to 140rpm, 40 to 200rpm mixing speed, or 200 to 1000 rpm mixing speed. In special reqeust, we can use VFD<Variable Frequency Drive> to meet your special mixing speed request.
| volume (L) | Dimension
(D× h ) (mm) | Total height (mm) | Diameter Of inlet
& outlet | Heat preservation layer (mm) |
| 500 | 840 × 1000 | 2250 | 38 | 60 |
| 600 | 920 × 1000 | 2300 | 38 | 60 |
| 700 | 990 × 1000 | 2300 | 38 | 60 |
| 800 | 950 × 1220 | 2500 | 38 | 60 |
| 900 | 1010 × 1220 | 2500 | 38 | 60 |
| 1000 | 1060 × 1220 | 2550 | 51 | 60 |
| 1500 | 1160 × 1500 | 2850 | 51 | 60 |
| 2000 | 1340 × 1500 | 2900 | 51 | 60 |
| 3000 | 1410 × 2000 | 3400 | 51 | 60 |
| 4000 | 1620 × 2000 | 3450 | 51 | 60 |
| 5000 | 1810 × 2000 | 3500 | 51 | 60 |
Our factory specializes in producing and selling processing equipment for dairy products, beverage, brewage, meat and poultry. Our main products include automatic double-tank sterilizing boilers, electric heating sterilizing boilers, emulsifying tanks, sugar dissolving tanks, cooling and heating cylinders, concentrating boilers, seed tanks, jacketed boilers, and direct cooling tanks.
Other food equipment can also be designed and manufactured according to customer requirements. The latest digital technology has been utilized for direct conversational programming and key parts have been carried out in mechanical machining, such as drilling, cutting, milling and grinding to ensure the ultimate precision. We have powerful technical force to independently and successfully design and manufacture products, completely realizing the simple and programmable operations of consistent products. We have some experienced experts and they can provide whole services for you from initial preparation, detailed construction and after-sales technique to spare part support.
At the same time, we combine our many years' experience to meet customer requirements and solve the difficulties of equipment technology. All our stainless steel equipment have reached sanitary equipment standard, which guarantees users with completely sanitary status through our abundant strength and a good reputation. We offer customers safe and reliable products and favorable prices.
