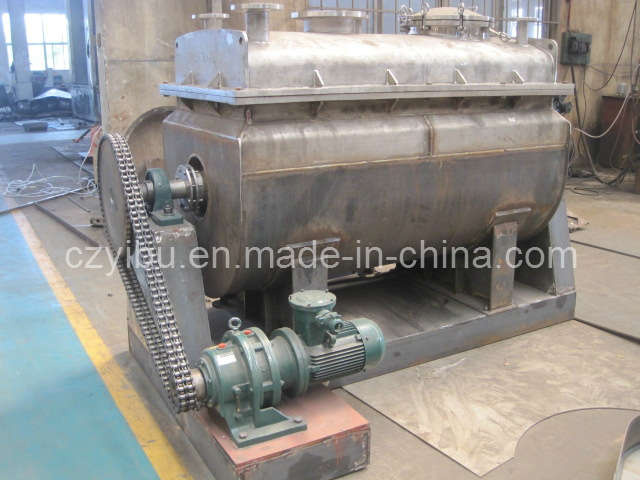

Hollow Blade Drying Machine

Hollow Blade Drying Machine
Supplier: Changzhou Yibu Drying Equipment Co., Ltd.
Price: Negotiable
Min Order: 1 /Piece
Quantity::
Trade Terms: FOB
contact supplier

Product Specifications

Prod Model: QJ
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification: CE
Type: Preparation Machinery
Finished Dosage Form: Solid Proudct in Powder or Granule Shape

Product Description

Qj hollow blade dryer:

1. Be used for drying particle, powder, and slurry state of material
2. Heat consumption of blade is low
3. The cost of the blade dryer is low
4. The operation cost is easy
5 be accord with is09001&14001
spec\item QJ3 QJ9 QJ13 QJ18 QJ29 QJ41 QJ52 QJ68 QJ81 QJ95 QJ110
Heat transferring area m 2 3 9 13 18 29 41 52 68 81 95 110
effective volume m 3 0.06 0.32 0.59 1.09 1.85 2.8 3.96 5.21 6.43 8.07 9.46
range of rotating speed r. m. p 15-30 10-25 10-25 10-20 10-20 10-20 10-20 10-20 5-15 5-15 5-10
power kw 2.2 5.5 7.5 11 15 30 45 55 75 95
width of vessel mm 306 584 762 940 1118 1296 1474 1652 1828 2032 2210
total width mm 736 841 1066 1320 1474 1676 1854 2134 1186 2438 2668
length of vessel mm 1956 2820 3048 3328 4114 4724 5258 5842 6020 6124 6122
total length mm 2972 4876 5486 5918 6808 7570 8306 9296 9678 9704 9880
distance of material inlet & outlet mm 1752 2540 2768 3048 3810 4420 4954 5384 5562 5664 5664
height of center mm 380 380 534 610 762 915 1066 1220 1220 1220 1220
total height mm 762 838 1092 1270 1524 1778 2032 2362 2464 2566 2668
steam inlet “ N” (inch) 3/4 3/4 1 1 1 1 11/2 11/2 11/2 11/2 2
water outlet " o" (inch) 3/4 3/4 1 1 1 1 11/2 11/2 11/2 11/2 2
Changzhou Yibu Drying Equipment Co., Ltd is a leading manufacture of drying, mixing, granulating equipemnt in the main land of China, a specially- designated enterprise of China Association of Pharmaceutical Equipment and China General Chemical Equipment Corporation, covers more than 50, 000sq. M, holds RMB 38 million of fixed assets and has more 180 sets of special processing equipment and powerful technical force, own the provincial famous trademark "YIBU". It can produce more 1, 500 stes of different. At present, there are 28 kinds and over 160 of specifications and varieties. The credit level is AAA for the passing days. ISO9001 & ISO1400 are approved.

The founder, Mr Zha Guocai devotes research, manufacture, production and business of drying equipment for over thirty years, holds the post of Deputy Director-General of China Drying Equipment Association for a long time.

The company pays much attention to science and technology renovation. First or later, it has cooperated with the institutes that are Shanghai, Wuhan, Chongqing and so on, and cooperated with Shenyang Chenmical Institute, Ministry of Chemical Industry, Qinghua University, Shanghai Transporation University, Dalian Science and Technology University. Therefore the company can put 3-5 new varieties into the market every year. In 1998, through approval of state relevant departments, the company set up China Research Center of Drying and Granulating, that can research new process and develop new technology and provide new products for pharmaceutical, chemical and foodstuff industries. We have many testing machine in our lab for to make trials for clients.

We've sold equipment to USA, Mexico, Columbia, Guatemala, Brazil, Peru, Australia, New Zealand, Ghana, Russia, Cyprus, Greece, Iran, Indonesia, Philippines, Korea, Japan, Taiwan, Hongkong and so on totally nearly 50 countries and districts around the planet.
