Product Specifications
| Prod Model: |
ALF-738EX |
| Markets: |
North America,South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Input Power: |
AC16.5V, 3A, 50-60Hz |
| Backup Battery: |
12VDC 7ah |
| Defence Zones: |
9 |
| Colour: |
Green |
| Material: |
Fr4 |
| Demension: |
190*86*1.6mm |
| Type: |
Security Alarm Host |
| Networking Mode: |
Dial-up |
| Function: |
Networked |
| Wiring Mode: |
Sub-Line System |
| Usage: |
Home, Warehouse, Shop, Factory |
Product Description

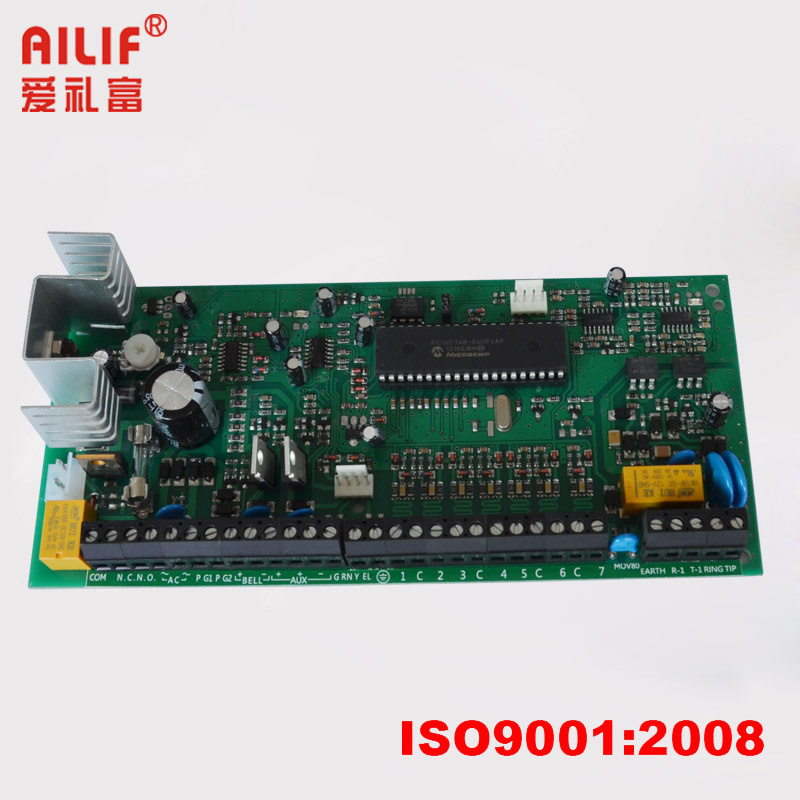

1.9 Zones Wired Alarm Control Panel With PSTN, can call you when alarm, high stability
2. Each zone has a zone input, can be connected directly by a detector or a door maganetic, so the number of panel zone can add one
3. When setting dual-zone to be valid, the panel can be accessed by two independent zone, the number of zone can be doubled
4. Dual-zone technology is operated by electric resistance and embedded software, no need of additional modules
5. Panel can confirm all detectors, the increased zone owns the functions of conventional zone and keyboard display, each zone can send their own different alarm code
6. Support wired smoke
7. Can lock the master password
8. Support pager report
9. Alarm output relay
Parameter:
Battery Charger: 350mA with battery test
Auxiliary power output: 450mA, with automatic reset electronic fuse, limiting 1A
Bell Output: 1A, with automatic reset electronic fuse, limiting 3A
PGM programmable output: Ground (-), normally closed or open, maximum current --50mA
Serial data output: (1200, 1, N) must reprovision module
Configurable keyboard: 5
Subsystems: 2
Event Memory: 256
