Product Specifications
| Prod Model: |
1200mm*2600mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Non-asbestos |
| Refractory Temperature: |
Over 2000 ℃ |
| Grade: |
Grade A |
| Type: |
Magnesium Oxide Board |
| Usage: |
Building |
| Surface Finishing: |
Glossy |
| Thickness: |
10mm |
| Appearance: |
Plate |
| Edge: |
Square |
| Shape: |
Square |
| Color: |
Green |
Product Description
Raw Material

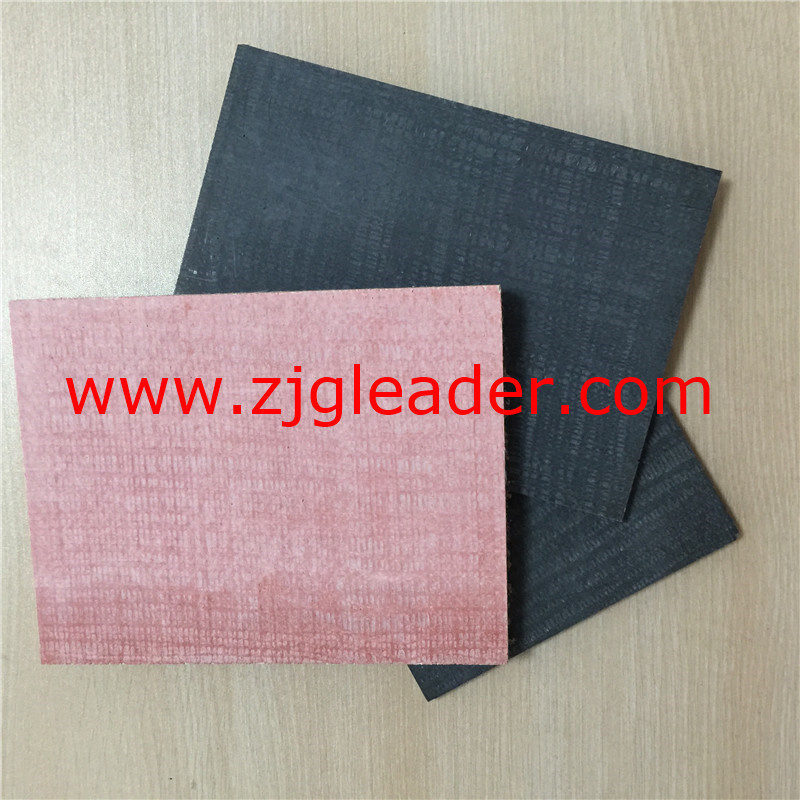

ZJGLEADER MGO Board uses proprietary processes with MgO, MgCl2, Perlite, Fiberglass, Chip compounds to deliver a multi-purpose,versatile,non-combustible,and unique board material.
Specification
| Edge | Square | Taper | Beveled | Grooved | Tongue |
| Standard size(mm) | 900*2700mm/915*2750mm
1200*2300mm/1220*2440mm
1200*2500mm/1220*2500mm
1200*3000mm/1220*3000mm |
| Max.width(mm) | 1220mm |
| Max.length(mm) | 3000mm |
| Thickness range(mm) | 3mm-20mm |
| Available color | white,black,grey,green,blue,red and pink |
Special size are available according to your demands.
Data Information
| Heading | Unit Used | Inspection value | Standard |
| Density | g/cm³ | 0.96-1.12g/cm³ | GB 8624 |
| Fire ratings | grade | A1 | GB/T7019-1997 |
| Thermal Resistance | m²K/W | 1.14m²K/w | GB/T13475-92 |
| Bending Resistance(Dry) | ≤Mpa | 18Mpa | GB/T7019-1997 |
Bending Resistance(Fully
Absorbed in Water) | ≤Mpa | 22Mpa | GB/T7019-1997 |
| Sound Insulation | dB | ≥44dB | GBJ121-88 |
| Absorption Moisture | ≤% | ≤15% | GB/T7019-1997 |
| Tensile Strength | ≤Mpa | 8-13Mpa | GB/T7019-1997 |
| Impact Resistance | kj/m² | Between 2.0-2.5 are qualified,
for 4mm,our board could reach 4.5kj/m²
so our boards are good. | CNS 13778 |
Main Features
1.Fireproof
ZJGLEADER MGO board adopts the A~grade non~inflammable material measured through national authoritative organizations.Its fire endurance can limit to 4 hours.No harmful smog will be generated which ensure people's safety.
2.Waterproof
ZJGLEADER MGO board has excellent dampness prevention performance.It can keep intact after being soaked in water without swelling and deformation.
3.Soundproof
ZJGLEADER MGO board can insulate sound effectively equaling to a 95mm thickness soundproof wall or a 12mm thickness gypsum board.It is equivalent to the effect of a 150mm thickness ordinary solid brick wall.
4.Insulate heat
The thermal resistance of a ZJGLEADER MGO board is 1.14m2k/w.ZJGLEADER MGO board performs well in heat insulation and warm-keeping.
5.Light weight and high strength
ZJGLEADER MGO boards' intensity of impact resistance is 2~3 times to the wall of ordinary.ZJGLEADER MGO board is easy to install which can shorten cost for a project.
6.Convenient process
ZJGLEADER MGO board is convenient to carry and cut.It can be easily installed which can reduce the cost.It is equipped with high bending resistance with lower thickness,and can be used in various types of processing.
7.Durable
ZJGLEADER MGO board has stable performance.It is acid~alkaline resistance and antiseptic.It also defends insects and ants.
Application
1.Commercial building: commercial mansion,public place of entertainment,market and hotel
2.Industrial building: factory,warehouse
3.Residential housing:New-type house,fitting up renovating
4.Public place:hospital,theater and station
