Dongguan Ridong Ultrasonic Machinery Co., Ltd. >> Home Textile Home Decor Window Blinds Curtain PVC Fabrics Table Cloth Slitting Cutting Machine

Home Textile Home Decor Window Blinds Curtain PVC Fabrics Table Cloth Slitting Cutting Machine

Name: Home Textile Home Decor Window Blinds Curtain PVC Fabrics Table Cloth Slitting Cutting Machine
Brand: china-manufacturer-directory.com
SKU: 730692765
Availability: InStock
Rating: 5 (105 reviews)

Supplier:	Dongguan Ridong Ultrasonic Machinery Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	FTJ
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Machine:	Roller Shades Ultrasonic Slitting Machine
Min Slitting Width:	89mm or Customized
Slitting Speed:	18-30 M/Min
Work Pressure:	0.3~0.5 Mpa
Voltage:	380/220 VAC
Frequency:	50/60Hz
Rated Power:	9.0kw
Feature:	Ultrasonic Slit Big Fabric Into Narrow Strip
Available Products:	Vertical Blinds,Roller Blinds,Non-Woven,Textile.
Production Time:	20 Days-Roller Shades Ultrasonic Slitting Machine
Certification:	RoHS
Condition:	New

Product Description

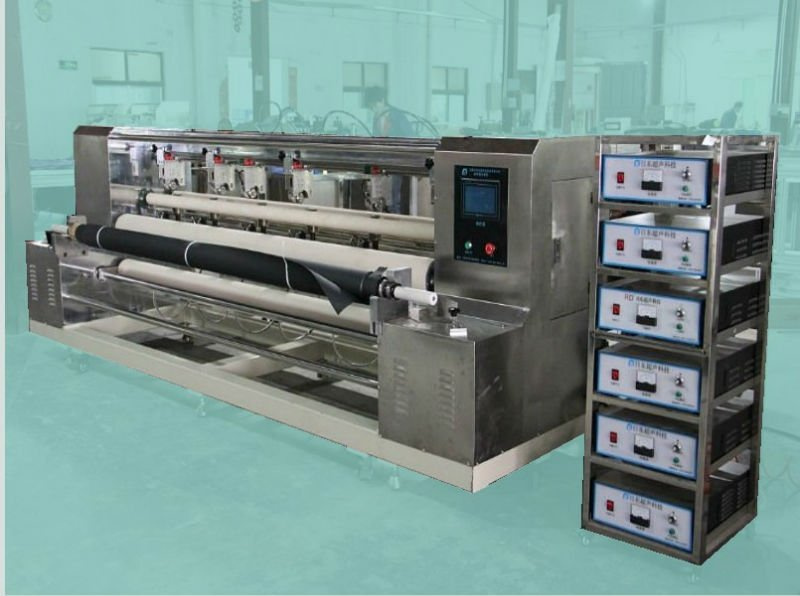

Home textile home decor window blinds curtain PVC fabrics table cloth slitting cutting machine Pictures: Function and Characteristics: >Using ultrasonic system from Germany; SMC cylinder imported from Japan; Good quality screws from Taiwan. Stable and reliable. >This machine is suitable for slitting and cutting for roller blinds, vertical blinds, zebra blinds, soft sheer blinds etc. >Fabrics edge automatically sealed after cut, edge smooth and firm, no rough thread comes out. >This machine has high efficiency, cutting speed is 0-40 meters per second ( according to fabrics thickness) >Adopting PLC and touch screen as control center, easy operating. >Cutting width adjustable, using precision screws and sliders to fix knives to make it movable easily on the machine. >Using frequency transformer and adjustable speed motor to control slitting speed. >Using air shaft feeding and receiving fabrics. >Has tension device and edge correcting system which automatically ensures edge smooth. APPLICATION PRODUCTS: 1. Roller blinds 2. Vertical blinds 3. Teslin fabrics 4. Elevator fabrics Following 6 points summarized from customers which they usually concerned : Price : there are two standard model sizes of the cutting machine: 2.5m, 3.0m. the prices deserve what you ordered from us. Leadtime: 30days or depends on quantities, if we have stock then can be delivery at once. How to test machine : we have professional QC department to test machine. After the production department finished the machine,QC department will test it before shippment, Or customer can come to factory test by himself. How to set up at your factory? yourself or engineers from us? Customer need to take the machine out from wooden package, put it on even floor, connect air pressure and power.no need to assemble because machine is well assembled. After one year warranty have problem, how to fix them? For this ultrasonic cutting machine, it is one of our most mature machine. It works steady, durable and operational easy. free warranty is 1year. After 1 year, if some parts has problems, we still like to fix or send parts to you for replace, but this should be paid work. Besides we have long life after sale service for customers. 7 years experience, exported to all over the world, build a professional after-sales service engineers team to requite our customers' concern and support .

Model No.: FTJ	Min slitting width: 89mm ..or design by customize	Slitting speed: 18-30 m/min
Power: 380/220VAC 50/60Hz	Rated power: 9.0KW	Work pressure: 0.3~0.5 Mpa
Machine width size : 2.0m	Machine width size : 2.5m	Machine width size : 3.0m
Dimension(LWH):313017001300mm	Dimension(LWH):363017001300mm	Dimension(LWH):403017001300mm
Packing: 356018001430mm	Packing: 393018001430mm	Packing: 433018001430mm
CBM : 9.163	CBM 10.115	CBM 11.145
N.W.: 1420kg	N.W.: 1600kg	N.W.: 1800kg
G.W.: 1520kg	G.W.: 1700kg	G.W.: 1900kg

DG Ridong Ultrasonic Machinery Co., Ltd, was established in 2007, located in the beautiful Fenggang Town of Dongguan with extremely convenient traffic, our factory area of 4, 600 square meters, currently employees of 70 staff, including 4 designing engineers, 4 R&D engineers and 14 other engineers. With many new and old customer's support, our company has gradually become professional and powerful.

We are specialized in manufacturing 5 series of machinery, it includes:

* Ultrasonic cutting machine series,
* Ultrasonic welding machine series,
* Ultrasonic slitting machine series,
* Up & down checking machine series
* Curtain making machine series,
* Roller blinds making machine series

It is widely used in many fields of fabric, textile, cloth, curtains, roller shades, blinds, window coverings, awnings etc.

We have numbers of advanced equipment for producing, including: 2 CNC machining center, 2 CNC lathe, 2 regular milling equipment, 4 welding equipment, 6 inspection equipment, and so on. Our original materials are imported from German, Japan and Domestic to ensure the precision and stability of the product quality. Ridong Ultrasonic Machinery Co., Ltd., after several years of striving, owing to high quality and substantial price, has earned high confidence from users, and has applied patent for all machines

Our company has always been committed to the product quality and brand image, establishing a perfect after-sales services. Adhering to the principle of "customer is God, quality is life, " we constantly improve product performance and quality to show appreciation to the old and new customers.

With the objectives of honesty and professional service, quality products, punctual delivery, we will surely service as your best partner. We warmly welcome you to our factory for visit and business. If you are interested in any of our products, please feel free to contact us for more information.
