YOUDO MACHINERY CO., LIMITED >> Home Use Animal Feed Crushing Machine/Fodder Mill

Home Use Animal Feed Crushing Machine/Fodder Mill

Name: Home Use Animal Feed Crushing Machine/Fodder Mill
Brand: china-manufacturer-directory.com
SKU: 724192405
Availability: InStock
Rating: 4.3 (147 reviews)

Supplier:	YOUDO MACHINERY CO., LIMITED
Price:	US $ 280-350/Set
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	UD-320
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Crush Material:	Straw & Grain & Chemical & Branch& Herbs
Power:	Electric & Diesel Engine & Gasoline Engine
Screen Size:	0.8-12mm
Feed Material:	Best Is Dry,Wet Not Bigger Than 60%
Processing Technics:	Crushing-before-Mixing
Processing Object:	Forage, Straw
Type:	Forage Equipment

Product Description

Home use animal feed crushing machine/fodder mill

Description:

Suitable for grinding corn, wheat, beans, grains, straw, vines, dry fresh potato, leaves the shell, such as food and feed, can also be shattered wood, branch, gypsum, aluminum powder, rare earth, chemical, pottery clay, coal and other minerals low hardness, and can crush a variety of traditional Chinese medicine.

Working principle:
Into the hopper, main rotor, tooth plate, sieve, chassis, frame, motor and other parts. After the material into the crushing chamber, in the round, flat tooth and tooth plate are bombarded with rub bump, quickly broken into powder or paste, under the effect of centrifugal force and air flow, the emitted through the mesh the discharging port.

Product show:

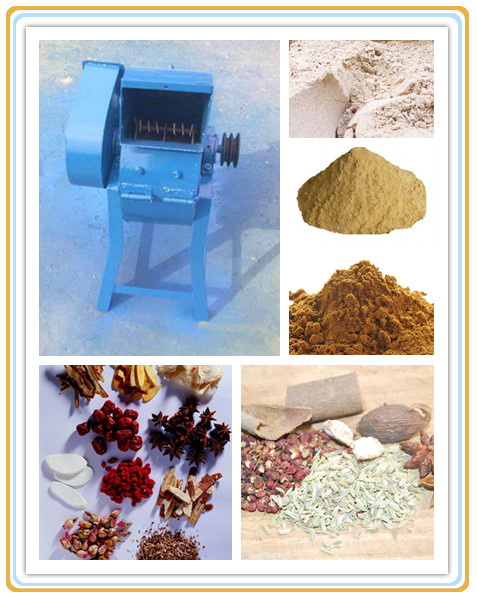

I.Crush seasoning & herbs

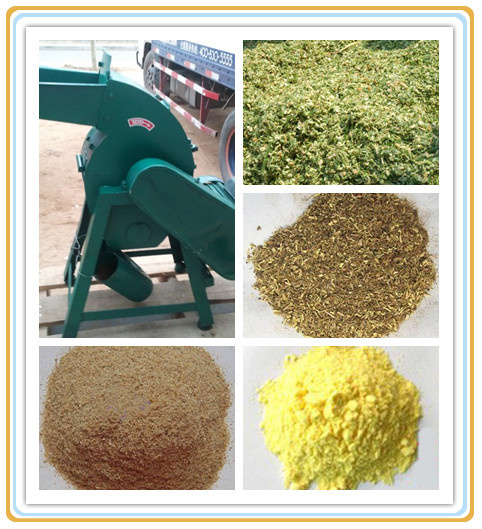

II. Crush grain & animal fodder & wood chips

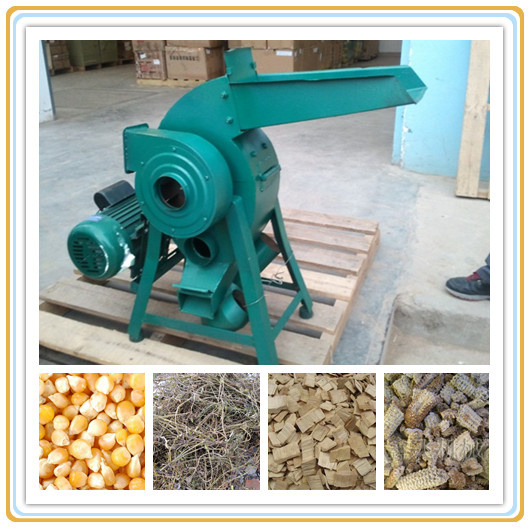

III. Straw & Corn stalk & corn powder & sawdust

Specifications:

Model	Power(kw)	Hammer(PCS)	Speed(r/min)	Weight(kg)	Out size(mm)	Feed port(mm)	Capacity(kg/h)	EXW price
UD-320	2.2-3	16	4000	45	350550850	180*180	50-200	USD 350
UD-360	3-5.5	16	4000	60	400550850	200*180	200-400	USD 530
UD-400	5.5-7.5	16	4000	80	6506001050	240*180	450-600	USD 685
UD-420	7.5-11	24	4000	100	7006501050	280*200	500-650	USD 790
UD-500	11-15	24	4000	150	9008501250	300*200	600-800	USD 950
UD-600	15-18.5	24	3400	360	13509501550	450*320	700-1500	USD 1320
UD-750	18.5-22	24	3400	400	145010501650	560*380	1000-2000	USD 1690
