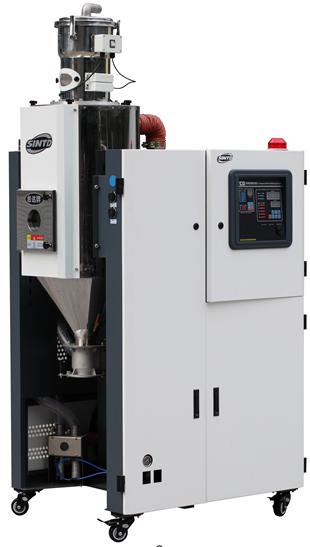

Sintd "optical" compact dryers combine the function of dehumidifying, drying and two-stage conveying into one single unit, specified for the production of "optical class" products, such as lenses, LCD backlight panel, compact discs etc. They feature honeycomb rotor for dehumidifying, ensuring continuous and constant low dew-point. Under ideal conditions, it can provide lower than -40 degree dew-point dehumidified air.
Features
* Combine the function of dehumidifying, drying and two-stage conveying into single unit.
* TCD Dryers Loaders are equipped with honeycomb rotor to obtain stable low dew-point drying air. It have two models: Semi-open and hermetic.
* Feeding system is equipped with shut-off valve to ensure no surplus raw material in hopper tubes.
* Microprocessor is one of the standard equipment.
* Optical-class TCD-OP material contact surface are all mirror polished and collocates conveying system with closed loop to avoid contamination and moisture regain.
* Optical-class TCD-OP system has standard configuration of HEPA, which could filter tiny ion of 0.3μm with filter ratio of 99.97%.
* Heat preserved drying hopper barrel adopts down blowpipe design and collocates with cyclone air exhaust to avoid heat lost and improve drying efficiency.
* This dehumidifying series adopt double cooler structure to ensure lower return air temperature and dew-point value.
* PLC control and touch HMI are optional, making operation convenient for machine's automatic running.
* Dew-point monitor is optional to monitor dew-point value at all times.
* HEPA and optical-class storage hopper are optional to ensure no air contamination of raw material.
* Dew-point value is settable, dew-point value is set between -40 to +10 degree according to actual need of plastics material. 0~10% of total power consumption could be saved.
* he function of controlling drying capacity is optional. Once setting the name of dried plastics material and used volume of per hour, system would adjust air volume and consumption automatically. Volume used per hour can be set 20~100% as drying capacity to save the totally power consumption of 0~40%, achieving maximum of resources collocation and avoiding over-drying which affects physical and mechanical capacity of plastics material.
Sintd Plastic Technologies Co., Ltd. is a professional manufacturer of auxiliary equipment for plastic Injection, Mold and Extrusion machines, and we have been in the plastic machine field for almost two decades, specialized in Plastic crusher, Hopper dryer, Plastic dehumidifier, Plastic Mixer, Vacuum Autoloader, Plastic granulator, Cooling-water machine, Mold Temperature Controller, Robot and so on.
Clients' continuous recognition and confidence in our products not only enriched our product range and also accelerated growth of our company. "Contributing to the World through high quality and low cost" it is our goal. This is made possible by more than 20 years of profound experience and plastic field. Our company had passed ISO9001-2008, and the products have been approved by CE, with good quality and pretty competitive price.
There are six series and three systems of our products; Drying and dehumidiying, feeding and conveying, heating and cooling, dosing and mixing, granulating and recycling, automation series, central feeding system, central cooling system and PET system. Our company has passed ISO9001-2008 quality system, and the products have got the CE certification meet with standards of European. The products acquired the patent of many items, all our products are wholeasled and exported to Europe, America and Asia etc for more than 30 countries and regions.
As for company's strategic plan, Anhui branch buit in 2011 of area53360 square meters, procducts and services, and make great effort to be the one-stop auxiliary equipment manufactory.
