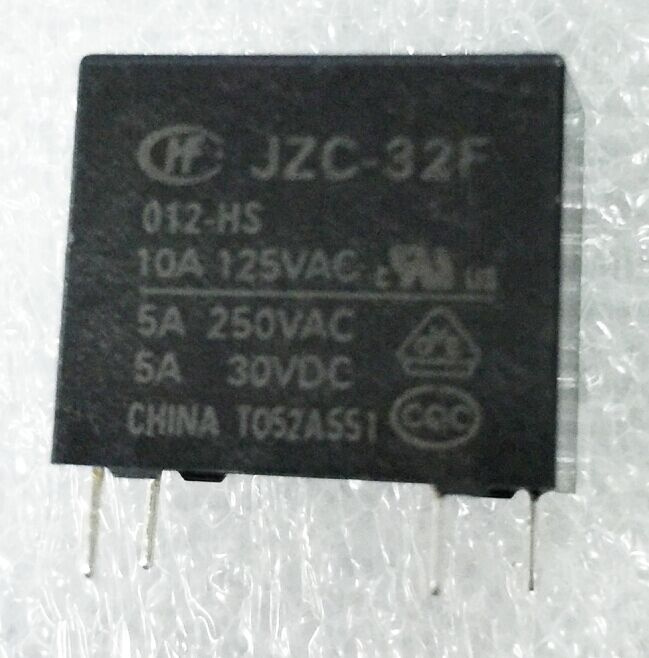

Hongfa Jzc-32f Relays
| Price: |
US $ 0.16/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union |
Product Specifications
| Prod Model: |
JZC-32F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Meas: |

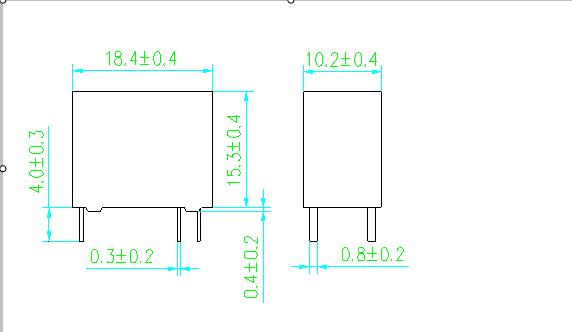

18.4X10.2X15.3mm |
Product Description
1. Type Model
1.1 Kinds: Miniature middling power relay
1.2 Type: JT32F/012-HS
1.3 Contact Arrangement: 1 From A (SPST)
1.4 Contact Material: AgCdO12
2. Coil Rating (at 20ºC)
3.1 Rated Voltage: 12VDC
3.2 Coil Resistance: 320±10%Ω
3.3 Normal Operating Power: 0.45 W
3.4 Max. Allowable Coil Voltage: 13.2VDC
3. Contact Specification
3.1 Contact Rating: 1H:5A/250VAC,10A/125VAC
3.2 Max. Contact Current: 1H:10A,
3.3 Max. Contact Voltage: 250VAC/30VDC
3.4 Max. Allowable Capacity: 1250VA 150W
4. Performance
5.1 Contact Resistance: 100mΩ (at 24VDC 1A)
5.2 Operate Voltage: Max. 9VDC
5.3 Release Voltage: Min. 0.6VDC
5.4 Operate Time: Max. 8ms
5.5 Release Time: Max. 5ms
5.7 Life
(1) Electrically
100,000(1H:5A/250VAC,10A/125VAC , 30/)
100,000 times (1H:5A/250VAC,10A/125VAC resistive load, Operating
frequency 30operations/1min.)
(2) Mechanically
10,000,000 (,18000/)
10,000,000 times(Under no load at operating frequency of 18000
operations/hour)
5.8 Dielectric Strength ( Leak Current: 1mA )
(1) Between Contacts: 1000VAC (50Hz 1min)
(2) Between Coil To Contacts: 2500VAC (50 1min)
5.9 Insulation Resistance
(1) Between Contacts: 1000MΩ(500VDC)
(2) Between Coil To Contacts: 1000MΩ(500VDC)
5.10 Coil Temperature Rise: Max. 55 ºC
100%,1H:5A/250VAC .
Applied voltage of coil 100% rated voltage ,Carry current of contact 1H:5A/250VAC.
5.11 Vibration
: 1.5mm,10~55Hz,3.,.Durability: 1.5mm Double amplitude ,10 to 55Hz, 3 hours. It shall be no
abnormalities in appearance, construction and performance.
5.12 Shock
: 98m/s2 (10g),6(X,Y,Z),10μs .
Malfunction: 98m/s2 (10g),6 shocks (each direction of X,Y,Z),No opering
of any closed contact circuit of no closing of any opened contact circuit
shall exceed 10μs.
: 980m/s2 (100g),6(X,Y,Z),,.
Durability: 980m/s2 (100g),6 shocks (each direction of X,Y,Z), It shall be no abnormalities in appearance, construction and performance.
5.13 Terminal Strength: 5N 1
5N,.() At push in direction the terminal can endure 5N force for 1 minute,It
Shall be no abnormalities.(a little curving of the terminals shall be
Acceptable)
5.14 Soldering Heat Resistance: 260±5ºC,10s.
.There shall be no abnormalities.
5.15 Soldering Ability: 250±10ºC,3±0.5s.
90%.90% of the dipped portion shall be soldered.
5.16 Temperature Resistance
(1) Heat Resistance
70±2ºC 2,2,.Must be free from any abnormality in both the construction and
characteristics after the relay is lift in a temperature of 70±2ºC for
2h and then in room temperature and humidity for 2h.
(2) Cold Resistance
-40±2ºC2,2,.Must be free from any abnormality in both the construction and
characteristics after the relay is lift in a temperature of -40±2ºC for
2h and then in room temperature and humidity for 2h.
5.17 Moisture Resistance
40±2ºC 90~95%RH48,2,.50MΩ min.(500VDC)
Must be free from any abnormality in both the construction and characteristics after the relay is lift in a humidity of 90% to 95% RH for
48h and then in room temperature and humidity for 2h. Insulation resistance however must be 50MΩ min.(500VDC)
6. Marking
6.1 Case Color: Black
6.2 Marking Position: flank
6.3 Ink Color: White
