Product Specifications
| Prod Model: |
hrd-crimped |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Mesh: |
4mm-25mm |
| Material: |
Low-Carbon Iron Wire |
| Application: |
Window Curtain |
| Hole Shape: |
Square |
| Weave Technique: |
Plain Weave |
| Weave Method: |
Flat-Topped Curved |
| Feature: |
Easily Assembled |
| Wire Diameter: |
4.80mm |
| Packing: |
Pallet |
| Certification: |
ISO9001 |
Product Description
We offer superb quality stone crushing screens which are woven from pre crimped wires.They can also be manufactured from carbon steel, spring steel, hi tensile steel.
1.Materials:
1) stainless steel wire(302 ,304, 304L ,310, 316 ,316L)
2) black iron wire, carbon steel wire, 65 Mn steel wire.
3)galvanized wire
2.Applications
1) As wire mesh for pig breeding, mine and stone works, glass factory, coal mine, petroleum, hardware products
2) Heavy duty crimped wire mesh products are mostly used as screen in mining, coal factory, construction
3) Stainless steel crimped wire mesh is mainly used in foodstuff, mine, chemical industry, pharmacy,metallurgy, machinery, protection, construction, arts and crafts.

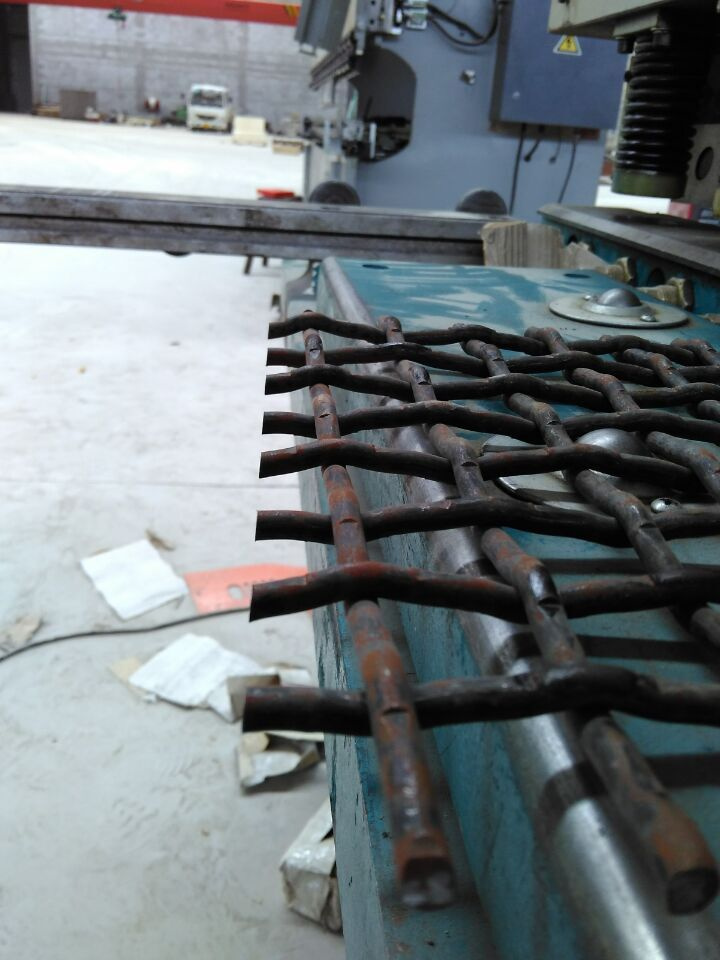

3. Processing of Hook Mining Screen Mesh :
First crimp then weave, single crimp or double side crimp, one weave past one crimp and so on crimp ways, it has strong structure.Feature: strong structure,hard,high tenacity,wearable,long life and so on .
4.Features:
good resistance against heat, acid, alkaline, ,strong structure,good tensile strength, anti-rust ,anti- wear
5. Packing:
1) water-proof paper+ poly film + label
2) water-proof paper+ poly film + label+plastic bag
3) poly film + label+ pallet.
| Specification List of Crimped Wire Mesh/Wire Mesh for Roast |
Wire Gauge
SWG |
Wire Diameter
mm |
Mesh/Inch |
Aperture
mm |
Weight
kg/m2 |
14 | 2.0 | 21 | 1 | 4.2 |
| 8 | 4.05 | 18 | 1 | 15 |
| 25 | 0.50 | 20 | 0.61 | 2.6 |
| 23 | 0.61 | 18 | 0.8 | 3.4 |
| 24 | 0.55 | 16 | 0.1 | 2.5 |
| 24 | 0.55 | 14 | 0.12 | 4 |
| 22 | 0.71 | 12 | 0.14 | 2.94 |
| 19 | 1 | 2.3 | 0.18 | 1.45 |
| 6 | 4.8 | 1.2 | 2 | 20 |
| 6 | 4.8 | 1 | 2 | 20 |
| 6 | 4.8 | 0.7 | 3 | 14 |
| 14 | 2.0 | 5.08 | 0.3 | 12 |
| 14 | 2.0 | 2.1 | 1 | 2.5 |
| 14 | 2.0 | 3.6 | 1.5 | 1.9 |
Anping Hongruida Hardware Mesh Products Factory (Anping Country AnRun Stainless Steel Hardware Product Co., Ltd. ) is a specialized enterprise, having more than thirty sets of equipment for professionally producing wire mesh. With emphasizing on new-high technology, the factory has become the comprehensive enterprise for manufacturing both wire mesh and further processing products.
Our main products include stainless steel wire mesh, crimped wire mesh, wire mesh processed products, perforated metal, decorative wire mesh, sound barrier and other products. They are widely usedly in industries including chemical, mining, petroleum, farming, food, decorative material and construction.
Through several years' development, we have accumulated rich experience, possessesed great professional skill and created capability of new products development.
Hongruida as an ISO9001: 2000 certified manufacturer, has established stable relationship with customers in the USA, France, the U. K., South Korea and others.
