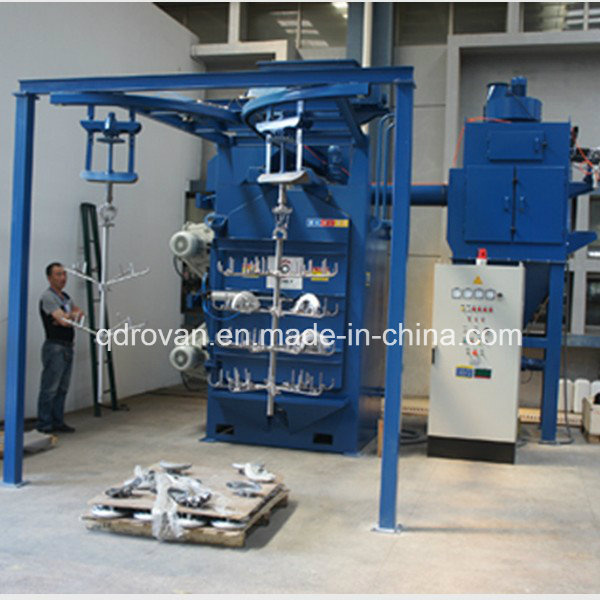

Hook Type Shot Blast Cleaning Machine

Product Specifications

Prod Model:	Q37
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Design:	as You Need
Warranty:	One Year
OEM:	Acceptable
Size:	Selected
Color:	as Your Customized
Test:	Before Delivery
Installation:	Instruction or Engineer Training
Application:	Foundry Industry

Product Description

Hooker  type shot blast cleaning equipment

Hook abrasive blaster is mainly used for surface cleaning and strengthening of steel structural parts,castings,aluminum alloy parts and other spare parts.It is widely used in foundry,mechanical and steel industry .This series has following advantages:no pit,double hook without rail exchanging,compact structure,and high productivity.

Q37 series technique parameter:

type	size of workpiece cleaned(mm)	carrying weight of single hook(kg)	capacity of shot blasting(kg/min)	lifting capacity of hoist(t/h)	saparating capacity of separator(t/h)	ventilation capacity(m³/h)	power(excluding dedusting)(kw)	outline dimensions(mm)
Q376	Φ600*1100	500	2*120	15	15	5000	19	4429*2850*3443
Q378	Φ800*1500	1000	2*200	22	22	8000	32.5	4325*2660*5009
Q3710	Φ900*1600	1000	2*250	30	30	9000	36.55	5047*3850*5156
QD3710	Φ900*1600	1000	2*250	30	30	9000	39.65	5844*2742*5716
Q3720	Φ1400*2300	2000	3*250	45	45	15000	61.27	6110*3599*7842
Q3730	Φ1600*2300	3000	3*250	45	45	15000	64.4	7085*4650*8652
Q3750	Φ1800*2500	5000	4*250	60	60	18000	78.4	7062*5460*8652
Q3780	Φ 2000*3000	8000	4*250	60	60	20000	81.5	8050*6400*8526

Packaging&Shipping

in nuding packaging.hook type shot blasting machine

shipping by sea hook type shot blasting machine

Our service

Reply your inquiry in 24 working hours.
Experienced staffs answer all your questions in fluent English.hook type shot blasting machine
Customized design is available. UEM&UBM are welcomed.hook type shot blasting machine
Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.hook type shot blasting machine
Special discount and protection of sales are provided to our distributor.hook type shot blasting machine
Professional factory: We are manufacturer, specializing in producing all kinds of machinery for more than 11 years, competitive with good quantity.hook type shot blasting machine
Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges are usually paid by your side, the charges will be rebounded when we have formal order.hook type shot blasting machine
As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company,hook type shot blasting machine

Confirmation

Kindly confirm your workpiece information as following:
1.What's workpiece ?hook type shot blasting machine
2. What's the workpiece size ?hook type shot blasting machine
3. What's the workpiece weight ?hook type shot blasting machine
4. What's the productivity ?hook type shot blasting machine
5. What's the workpiece material ? hook type shot blasting machine
The machine will be designed according to your workpiece specification. hook type shot blasting machine
Thanks in advance
