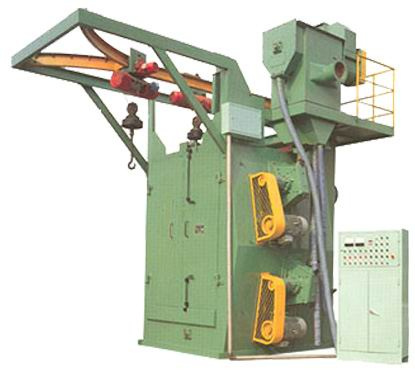

This machine is suitable for cleaning and reinforcing various medium and large batch forged piece. Casting and steel metal parts. But also more suitable for frosting surface after rust removal and increasing adhesive force of spraying,
1. Cleaning room size(L*W*H): 1700*1700*2650mm
2. Parts Max. Size (Diameter*Height)^^φ 800*1500mm
3. Required cleaning time for a hook:
Casting parts: . 8-15min
Welding parts: . 6-10min
4. Impeller head: 2PCS
Blade Diameter: φ 360mm
Max shot blast capability: 2*300kg/min
Motor power: 2*7.5KW
5. Steel pill diameter: 1-2mm
6. Hoisting machine (Elevator):
Raise capacity: 30t/h
Motor power: 2.2KW
7. Separator:
Separate capacity: . 30t/h
8. Hook number: 2PCS
Hook capacity: 1000KG
9. Steel pill wastage: . 12kg/h
10. Required air ventilation of the whole machine: 8500m3/h
11. Machine total power: About 26.5kw
Hangzhou Tongbao Machinery Factory (TBBLAST), established in2003, located in Hangzhou China. Is specialized in sand blasting machine, shot blasting machine, and vibratory polishing machine. Has developed to be a leading manufacturer in the surface treatment and finishing industry.
Our company has passed ISO9001 quality system certification, relying on high technologies and with quality products and good after service. It has created god economic benefit and social bebefit and our products have been widely sold to many domestic and overseas countries We offer a complete range of surface preparation products, including sandblast nozzles & holders, hoses & couplings, helmets, valves and hundreds kinds of related accessories and blasting equipment.
Our company is dedicated to the success of every customer worldwide by our quality products and services. Our experienced engineers can quickly design and customize products according to customers' requirements.
Freely processing according your sample, Delivery time is short, Contact us with your requirements for competitively priced products or if you are interested in joining us as a distributor.
