Hook Type Shot Blasting Machine (TB-Q376)

Name: Hook Type Shot Blasting Machine (TB-Q376)
Brand: china-manufacturer-directory.com
SKU: 651413855
Availability: InStock
Rating: 4.5 (21 reviews)

Supplier:	Hangzhou Tongbao Machinery Factory
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	TB-Q376
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

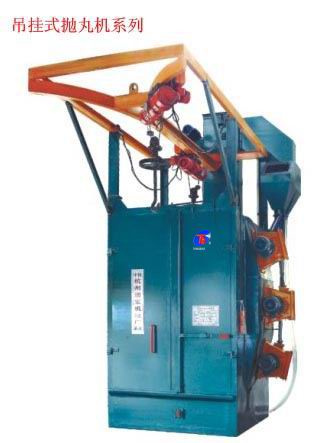

Hook type shot blasting machine
Detail Product Description
The Q37 series lift hook type throws the pill cleaning up achiness mainly use in the steel structure, the casting, the aluminum alloy and other components superficial cleaning up and the strengthening, widely applies to profession and so on casting. Forging and stamping, machinery, steel and iron. Q378E cleaning up machinery and tools pit, are the structure whether there is compact, the productivity higher merit.

No.	Equip.name	Hanger type
Shot blast	Hanger type
Shot blast	Hanger type
Shot blast	Hanger type
Shot blast	Hanger type
Shot blast	Hanger type
Shot blast
	Serial number	Q375	Q378	Q3710	Q3720	Q3730	Q3750
1	Work piece dimension(mm)	700*1000	800*1500	1000*1800	1400*2300	1850*2200	1800*2500
2	Max hang weight(kg)	500	800	1000	2000	3000	5000
3	Hanger rotate speed(r/min)	4	4.3	4	4.3	4	4.6
4	Steel pill Dia (mm)	1-1.5	1-2	1-2	1-2	1-2	0.8-1.2
5	First loading quantity(kg)	500	1000	1000	1500	2000	2500
6	Shot wheel type	YH31	130	130	130	130	130
7	Power (KW)	2*7.5	2*11	2*11	3*11	4*11	5*11
8	Raise capability (T/h)	15	25	25	35	45	80
9	Raise power (KW)	1.5	2.2	2.2	1.5	2.2	4
10	Blast capability (kg/min)	120	170	170	170	170	170
11	Separator capability (T/h)	15	25	25	35	45	63
12	Conveyor capability (T/h)		25	25	35	45	63
13	Conveyor power (KW)				1.1	1.5	2.2
14	Total vent amount (m 3/h)	4500	6000	6000	85000	11000	18000
15	Total power (KW)	17	29	29	51	61	78
16	Machine size (lengthwidthheight)mm(for reference)	2035*
1956*
3762	4500*
2450*
5100	4500*
2450*
5900	6100*
3599*
7842	6960*
3670*
7918	7060*
5460*
8650

Hangzhou Tongbao Machinery Factory (TBBLAST), established in2003, located in Hangzhou China. Is specialized in sand blasting machine, shot blasting machine, and vibratory polishing machine. Has developed to be a leading manufacturer in the surface treatment and finishing industry.

Our company has passed ISO9001 quality system certification, relying on high technologies and with quality products and good after service. It has created god economic benefit and social bebefit and our products have been widely sold to many domestic and overseas countries We offer a complete range of surface preparation products, including sandblast nozzles & holders, hoses & couplings, helmets, valves and hundreds kinds of related accessories and blasting equipment.

Our company is dedicated to the success of every customer worldwide by our quality products and services. Our experienced engineers can quickly design and customize products according to customers' requirements.

Freely processing according your sample, Delivery time is short, Contact us with your requirements for competitively priced products or if you are interested in joining us as a distributor.
