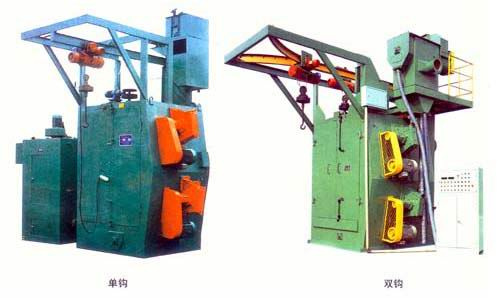

Hook type shot blasting machine
Detail Product Description
The Q37 series lift hook type throws the pill cleaning up achiness mainly use in the steel structure, the casting, the aluminum alloy and other components superficial cleaning up and the strengthening, widely applies to profession and so on casting. Forging and stamping, machinery, steel and iron. Q378E cleaning up machinery and tools pit, are the structure whether there is compact, the productivity higher merit.
|
No. |
Equip. Name |
Hanger type Shot blast |
Hanger type Shot blast |
Hanger type Shot blast |
Hanger type Shot blast |
Hanger type Shot blast |
Hanger type Shot blast |
|
|
Serial number |
Q375 |
Q378 |
Q3710 |
Q3720 |
Q3730 |
Q3750 |
|
1 |
Work piece dimension(mm) |
700*1000 |
800*1500 |
1000*1800 |
1400*2300 |
1850*2200 |
1800*2500 |
|
2 |
Max hang weight(kg) |
500 |
800 |
1000 |
2000 |
3000 |
5000 |
|
3 |
Hanger rotate speed(r/min) |
4.0 |
4.3 |
4.0 |
4.3 |
4.0 |
4.6 |
|
4 |
Steel pill Dia (mm) |
1-1.5 |
1-2 |
1-2 |
1-2 |
1-2 |
0.8-1.2 |
|
5 |
First loading quantity(kg) |
500 |
1000 |
1000 |
1500 |
2000 |
2500 |
|
6 |
Shot wheel type |
YH31 |
130 |
130 |
130 |
130 |
130 |
|
7 |
Power (KW) |
2*7.5 |
2*11 |
2*11 |
3*11 |
4*11 |
5*11 |
|
8 |
Raise capability (T/h) |
15 |
25 |
25 |
35 |
45 |
80 |
|
9 |
Raise power (KW) |
1.5 |
2.2 |
2.2 |
1.5 |
2.2 |
4 |
|
10 |
Blast capability (kg/min) |
120 |
170 |
170 |
170 |
170 |
170 |
|
11 |
Separator capability (T/h) |
15 |
25 |
25 |
35 |
45 |
63 |
|
12 |
Conveyor capability (T/h) |
|
25 |
25 |
35 |
45 |
63 |
|
13 |
Conveyor power (KW) |
|
|
|
1.1 |
1.5 |
2.2 |
|
14 |
Total vent amount (m 3/h) |
4500 |
6000 |
6000 |
85000 |
11000 |
18000 |
|
15 |
Total power (KW) |
17 |
29 |
29 |
51 |
61 |
78 |
|
16 |
Machine size (length*width*height)mm(for reference) |
2035*1956*3762 |
4500*2450*5100 |
4500*2450*5900 |
6100*3599*7842 |
6960*3670*7918 |
7060*5460*8650 |
Hangzhou Tongbao Machinery Factory (TBBLAST), established in2003, located in Hangzhou China. Is specialized in sand blasting machine, shot blasting machine, and vibratory polishing machine. Has developed to be a leading manufacturer in the surface treatment and finishing industry.
Our company has passed ISO9001 quality system certification, relying on high technologies and with quality products and good after service. It has created god economic benefit and social bebefit and our products have been widely sold to many domestic and overseas countries We offer a complete range of surface preparation products, including sandblast nozzles & holders, hoses & couplings, helmets, valves and hundreds kinds of related accessories and blasting equipment.
Our company is dedicated to the success of every customer worldwide by our quality products and services. Our experienced engineers can quickly design and customize products according to customers' requirements.
Freely processing according your sample, Delivery time is short, Contact us with your requirements for competitively priced products or if you are interested in joining us as a distributor.
