Shanghai Mitsubishi Elevator Co., Ltd. >> HOPE-S1 Observation Elevator

HOPE-S1 Observation Elevator

Name: HOPE-S1 Observation Elevator
Brand: China-Manufacturer-Directory.com
SKU: 672852685
Availability: InStock
Rating: 4.3 (79 reviews)

Supplier:	Shanghai Mitsubishi Elevator Co., Ltd.
Price:	Negotiable
Min Order:	1
Quantity::

Product Specifications

Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Passenger Elevator
Speed:	1m/S~2.5m/S
Capacity:	550kg~1350kg
Persons:	7~18

Product Description

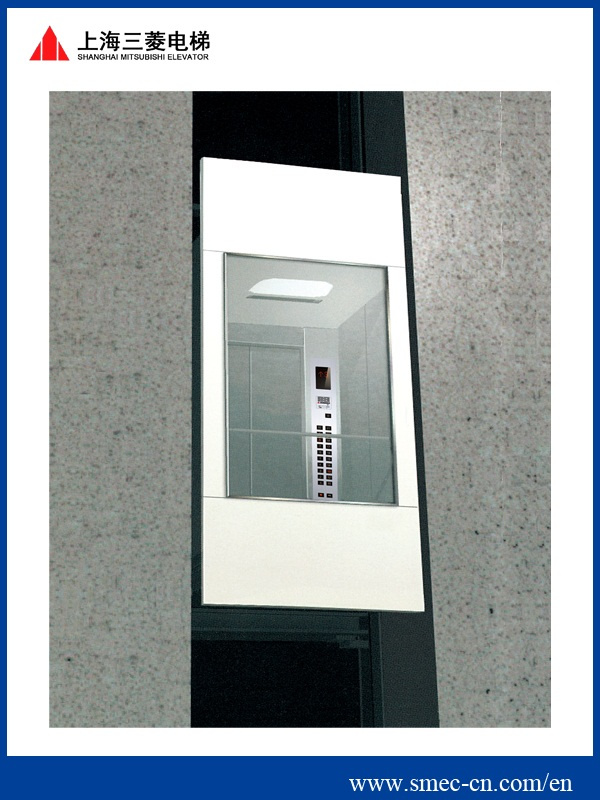

HOPE-S1 Observation Elevator

Shanghai Mitsubishi Observation Elevator can be compared to the work of art moving vertically along the building. It looks elegant and pleasing to eye, which is a perfect combination of comfortable ride and visual arts. The elevator is not only suitable for large department store, shopping mall, exhibition hall and hotel, etc., but also a highlight to the office building.
The outer lighting of the elevator car is perfectly integrated into the peripheral environment, which makes it a bright scenery to people.

Item	specification
Speed(m/s)	1	1.5	1.75	2	2.5
Load(kg)	550	550	550
	630	630	630
	800	800	800	800	800
	900	900	900	900	900
	1050	1050	1050	1050	1050
	1200	1200	1200	1200	1200
	1350	1350	1350	1350	1350
Max.stops	2--20	2--28	2--28	2--28	2--28
Max.travel(m)	2.8-55	2.8-80	2.8-80	2.8-80	2.8-80
Control mode	VFEA
Operation mode	1C-2BC,2C-SM21,3C-ITS-21,4C-ITS-21
Door system	LV1K-L2N-CO
Door open type	1D1G
Door operation mode	central opening
Dynamic power supply	380V 50HZ 3-phase-5-line
Lighting power supply	220V 50HZ Single phase
Min.floor interval(mm)	2600 Seller will supply the steel nosing if it is selected.
Min.floor interval(mm)	2800 Buyer should supply the concrete nosing if it is selected.
Display range of landing	B1,B2,B3,B,G,M-1,-2,-3,0.1,1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25, 26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48
CWT position	Side mounted

Shanghai Mitsubishi Elevator Co., Ltd. was established on January 1st, 1987, and has a total investment of USD200 million and more than 1800 staff members.

Since 1993, Shanghai Mitsubishi has been No. 1 in China's elevator industry for 17 consecutive years. Since 2005, Shanghai Mitsubishi has set the record for single factory production in the world. Shanghai Mitsubishi has manufactured more than 250, 000 sets of elevators and escalators. Our sales value will reach 40, 000 units in 2010. Millions of people use Shanghai Mitsubishi elevators each day, and Shanghai Mitsubishi elevators can be found in 56 countries and regions around the world.

Shanghai Mitsubishi has served as the pioneer in the elevator technological innovation of China for more than two decades. We are pushing the boundaries of the advanced elevator technology. We maintain the state-of-the-art plant with the advanced manufacturing systems, with the world-class processing and testing equipment. Up to now, 40 series of products with a total of more than 200 kinds of specifications have been developed.

Our mission: To create more harmonious space of lifts

The enjoyment of going up and down - Shanghai Mitsubishi Elevator
