Product Specifications
| Prod Model: |
HL |
| Markets: |
North America,South America,Eastern Europe,Oceania,Western Europe |
Product Description
Usage:

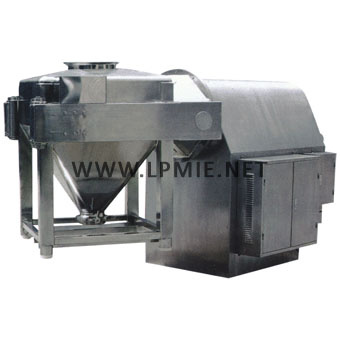

The HL hopper type mixer is extensively used for the mixing of powder with powder or powder with grain in the process of diversified solid preparation production in the pharmaceutical industry. THis machine can be equipped with hoppers of various specifications, I. E. 600L to 1400L, for mixing work. It is suitable for mixing pharmaceuticals of multiple varieties and different batches according to the technological requirement in large and medium-sized pharmaceutical enterprises, so it can achieve multiple purposes in one machine.
Specialty:
After tightly clamping the charged hopper, the rotating arm begins to rotate at a speed below 50% of the critical speed according to the preset technological parameters. As the symmetrical axes of hopper and the rotating center line of rotating arm form an included angle, materials with different constituents are strenuously rolling over in the closed hopper and producing high shear to achieve the best effect of mixing.
Technical data:
| Model | HL-600 | HL-1000 |
| Maximum working load | 600 Kg | 1000 Kg |
| Maximum hopper capacith | 400, 600 L | 600, 800, 1000, 1200, 1400 L |
| Maximum volume density of material | ≤0.8 g/ml | ≤0.8 g/ml |
| Total power | 11 kW | 15 kW |
| Rotating arm speed | 12~18 rpm | 12~15 rpm |
| Operating pressure of hydraulic system | 7 Mpa |
| Operating pressure of pneumatic system | ≥0.6 Mpa |
| Maximum rotating diameter | 2200 mm | 2910 mm |
| Range of working zone | 2400 mm | 3200 mm |
| Height of body frame | 2150 mm | 2700 mm |
Liaoyang Pharma Machinery Imp. & Exp. Co., Ltd., develops and manufactures all kinds of pharmaceutical machines and packaging machines. With the development and enlargement of mass clients abroad, now we have set up cooperative relationships with hundreds of Chinese machine and medicine raw material manufacturers, who offer us the lowest quotation. On the other hand, we can supply the best products with the best prices for our overseas clients with our professional experience and good reputation.
At present, our products have been exported to South Korea, India, Denmark, Russia, Georgia, Jordan, Bangladeshi, Thailand, Ethiopia, Finland, the United States, Canada, Australia, Spain, Japan, Colombia, Romania, Croatia, and Iraq, totally more than twenty countries, and we have set up friendly business relations with nearly one hundred foreign companies. Especially we have established long-term agent business relations with Romanian and Colombian distribution companies. We also applied for the bid, and succeeded in Burman national medicine factory project and African national medicine factory project.
We also have a special design team, and the engineers can design special pharmaceutical machines according to clients' requests. We successfully designed and produced high speed sachet packing machine for Indian clients in 2004, which is a new high speed and intelligent packing machine in the world, and we finished it all by ourselves from the design to the final product. As the requirements of clients, we cooperated with Spanish Water Purity Company to establish water supply system market, and designed and promoted water supply project, and then made it blooming in the Spanish very fast under our effort. Our products win the market because of advanced technique and reliable quality with most favorable price.
Since our establishment, we have shown the Chinese pharmaceutical machinery and equipment with our special image. Our products are mainly in raw pharmaceutical material processing equipment, preparation production equipment, medical packing machines, pharmaceutical pulverizers, pharmaceutical water supply equipment, and pharmaceutical chemical raw materials. For the raw pharmaceutical material processing equipment, we are engaged in glass line equipment, three column centrifuges, bio-diesel special separator, disc and tubular separators, screen machines, and dryers. For the preparation production equipment, we have capsule fillers, pill forming machines, capping machines, tablet presses, polishers, granulators, coaters, mixers, and labeling machines. For the medical packing machines, we can supply blister packing machines, bag packing machines, tea bag packing machines, paper cup machines, printing machines, AL-AL packing machines, boxing machines and counting machines. For pharmaceutical pulverizers, there are pulverizers and mills. For pharmaceutical water supply equipment, we have distilled water equipment and pure steam generators. We win the warmly welcome of customers from all over the world because of excellent quality and considerate after-sales service.
With China's entrance to WTO formally, it brings new opportunities and challenges for us to develop trade relations and business cooperation. We will continue to make full efforts to improve our website and products constantly, and try to offer our customers the best products and the best service heart and soul.
