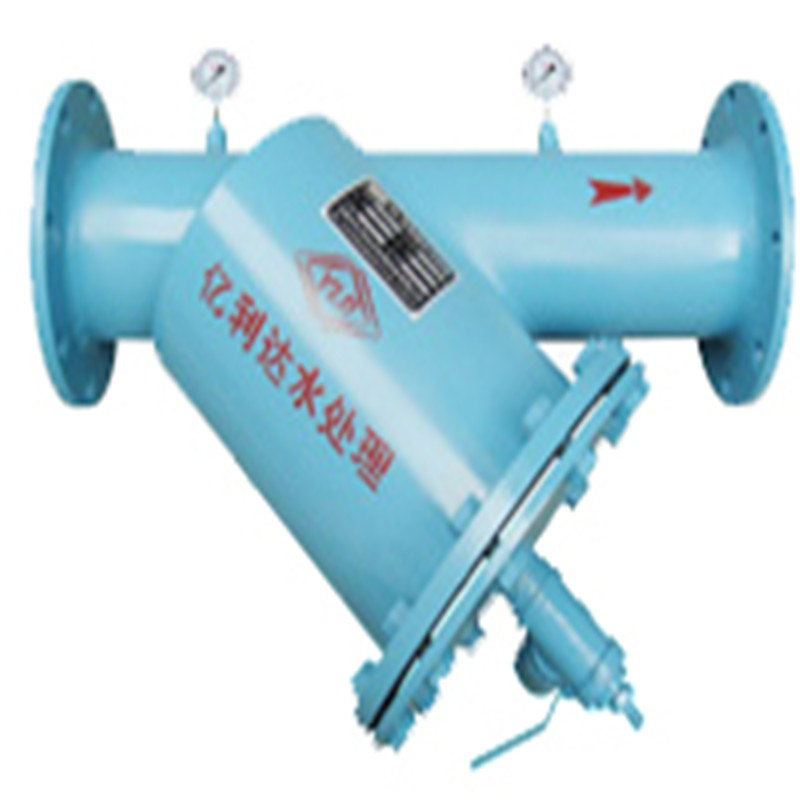

Horizontal Brush Filter with Manual Drive

Product Specifications

Prod Model:	YL-2S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Carbon Steel/Stainless Steel
Working Pressure:	Less Than 1.0 MPa
Working Temperature:	Less Than 100 Centigrade
Pressure Loss:	Less Than 0.015MPa
Filtering Precision:	1.2mm
Use:	Industy Water Filtration
Usage:	Chemical Industry
Motive Force:	Electric power
Certification:	CE
Type:	Filter
Style:	Horizontal

Product Description

Product introduction
Brush filter with manual drive is made up of the stainless steel wire brush, stainless steel strainer and rotating part. The washing device is installed at the inner side of the stainless steel strainer One handle is installed on the filter cover Turning the handle to lead the washing part to brush off the grain on the strainer, the grain will be discharged from the drainage entrance. The water flow will not stop during the brushing without machine halt and disassembly of the filter for washing the strainer.



Feature:
Filter precision from 100um to 3500um,big filter area,high sewage carrying capacity,customized product.
Simple turn-of-a-handle cleaning of the filter screen,adjust the parameter of the automatic cleaning system.Automatic cleaning.
Has motor overload protection, which can effectively protect the motor.
Eliminates the need for turning off the water and extracting the filter screen for rinsing.No interruption of the process water flow during cleaning,Low pressure loss:less than 1%.
Easy to maintenance,installation and disassemble.
Flange connections to the user's pipeline, national standard flange, versatility.


Applications:

1. Heating system, hot water circulation system.
2. Central air conditioning, chillers, cooling and refrigeration chiller water circulation system.
3.Industrial and civil cooling water, process cooling water circulation system.
4.Hot water bath, heating circulation system.
To protect the cooling equipment, heat exchanger, air conditioners, boilers and so on.The device is suitable for a wide range of industries, including construction, chemical, electric power, metallurgy, rubber, paper, textile, coal, food and other industries.
Metallurgy: continuous casting water, high-pressure phosphorus in water, the net ring of water, muddy water filtration loop, cooling water full filter, next to the filter, nozzle protection
Electricity: turbine cooling water filtration, gray water recycling filtration, dust nozzle protection, cooling tower water filter and next to the filter, such as whole Raw water: lakes, rivers, reservoirs and water, well water, rainwater, groundwater extraction of sand, algae, organic filtration
Agriculture: irrigation, drip irrigation water
Other: construction, iron and steel, petroleum, chemical, electronics, power generation, textile, paper, food, sugar, pharmaceuticals, plastics, automotive industry, etc.
Widely used in drinking water treatment, construction circulating water treatment, industrial circulating water treatment, wastewater treatment, mining water treatment, water treatment and other areas of the golf course





Technical parameters:

Model	Inlet and outlet parameter		Diameter of the cartridge	Ø	L	L1	L2	L3	H	Output power(w)	Flow (T/h)
	mm	in	mm	mm	mm	mm	mm	mm	mm		(kg)
YL-2S	50	2	57	159	300	600	80	810	650	19	70
YL-3S	80	3	89	159	300	600	80	810	660	50	75
YL-4S	100	4	108	159	300	600	80	810	670	80	80
YL-5S	125	5	133	219	350	600	80	820	680	125	90
YL-6S	150	6	159	275	350	650	80	950	720	180	100
YL-8S	200	8	219	325	525	750	80	1050	850	320	120
YL-10S	250	10	273	377	650	850	80	1350	1050	490	150
YL-12S	300	12	325	426	700	950	100	1740	1360	710	260
YL-14S	350	14	377	478	820	1170	100	2350	1740	970	350
