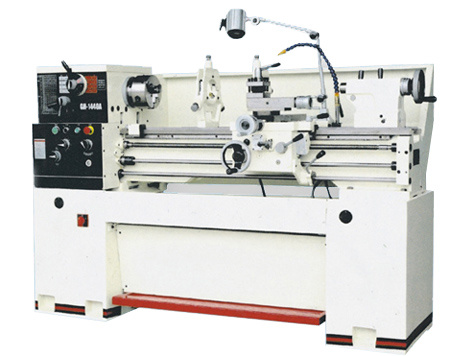

Horizontal Lathe (C6236A2)

Horizontal Lathe (C6236A2)
Supplier: Shanghai Shenji International Co., Ltd.
Price: Negotiable/Piece
Min Order: 1/Piece
Quantity::
Trade Terms: FOB,CFR,CIF
contact supplier

Product Specifications

Prod Model: C6236A2
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Hardended and ground bed ways
16 speeds all geared head stock
3HP (2.4kw) three phase motor
Foot brake giving rapid braking
Emergency stop button equipped on the front of head stock
Jog button for easy gear engagement and inching spindle
Open type chip pan easily to remove chips
Extra safety switch shuts down machine automatically
ModelC6236A2
General capacityMax. swing over bedØ 356mm
Max. swing over slideØ 220mm
Max. swing in gapØ 506mm
Width of bed206mm
Max. length of workpiece1000/750mm
Taper of spindle boreMT5
Main spindleDiameter of spindle thru holeØ 38mm
Number of spindle speeds16, 2 ranges
Range of spindle speeds45~1800rpm
Spindle noseD1-4
Threading &
feeding
Metric pitch threads0.45~7.5 (22kinds)
Whit-worth threads4~112mm(44 kinds)
Range of longitudinal feeds0.043~0.653TPI
Range of cross feeds0.015~0.220mm
LeadscrewDiameter of leadscrewØ 22mm
Pitch threads of leadscrew4mm
TailstockTravel of tailstock quill120mm
Diameter of tailstock quillØ 45mm
Taper hole of tailstock quillMT3
PowerPower of main motor1.5 / 2.4KW (3HP)
Coolant pump motor power0.04KW (0.055HP)
OthersOverall dimensions (LxWxH)1920x740x1180mm
Packing size2020x900x1560mm
Net weight750kgs
Gross weight880kgs
SJMC Corporation, founded in 1997, is a national foreign-trade company combined with production and technology which is wellknown in supplying the service of Overall Mechanical processing solution in the filed.

SJMC' products are widely used in automotive, manufacturing, aerospace and defense, construction and farming equipments, oil and energy field, mold and die industries, etc. From the beginning, our company made it as our mission to provide machines of good quality at competitive price to all customers. Rely on good relationships with many famous manufactories and final assembly these inputed products in our house to realize our concept of reducing the cost.

SJMC Machines involve all kinds of machine tools and motor maintenance equipments, e. G. Vertical and horizontal machining centers, lathe, milling machine, drilling machine, boring machine, grinder, measuring equipments etc. Which offer users high throughput, high quality, reliable solution and cost effective to production machining operations.

SJMC has developed successfully of its own corporate philosophy of High quality, Cost effective, first-rate service and has underpinned the development of world's manufacturing by offering machine tools that satisfy manufacturing makers. These years, SJMC has set up close business co-operation with many companies in the world through good services and mutual trust.

Choosing SJMC as your machining partner, you are free to imagine a more productive, cost effective solution and we assure you that we can together to make your dream come true.
