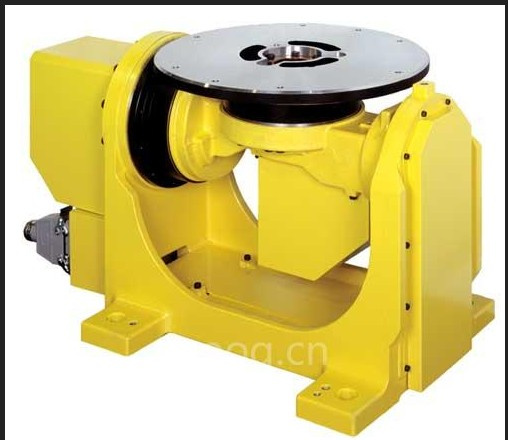

Horizontal Welding Postioner

Name: Horizontal Welding Postioner
Brand: China-Manufacturer-Directory.com
SKU: 731327855
Availability: InStock
Rating: 5 (47 reviews)

Supplier:	Changzhou ANNOV Machinery Co., Ltd.
Price:	US $ 1400-35000set
Min Order:	1set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	HBJ-01, HBJ-02, HBJ-03, HBJ-06
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dimensions:	as Customers' Requirements
Color:	Blue or as Customers' Requirements
Weight:	as Customers' Requirements
Packaging Detail:	Bubble Sheet or as Customers' Requirements
Usage:	Welding Assistant Machine

Product Description

(1)Through rotation and turning of platform, positioners make work piece in best welding position.
(2)Rotation and tilt movement are both electric. (not through worm gear and crank handle). Welding positioner with small capacity like ZHB-1 and ZHB-3, the tilting can also be manual. It is all on customers' decision.
(3)One hand control box to facilitate operation.
(4)Frequency conversion speed control(VFD), it is precise and stable.
(5)Electric Control box.
(6)Slewing ring are used to increase carrying capacity.
(7)Brand of motor, reducer and electrical part:

HBJ WELDING POSITIONER PARAMETER
Type	Rated Loading(kg)	Rotation Speed(rpm)	Tilting speed(rpm)	Tilting angle	Worktable Dia.	Rotation Power	Tilting Power	Speed regulation	Max. Eccentricity	Max.Gravity
HBJ-01	100	0.4-1	Manual	0-90	Φ400	0.18	/	AC frequency conversion stepless speed regulation	100	200
HBJ-03	300	0.1-1	Manual	0-90	Φ600	0.18	/		150	200
HBJ-03	300	0.1-1	1	0-90	Φ600	0.18	0.18		150	200
HBJ-06	600	0.05-0.5	0.42	0-90	Φ1000	0.75	0.75		150	200
HBJ-12	1200	0.05-0.5	0.4	0-120	Φ1200	1.1	1.1		200	250
HBJ-30	3000	0.05-0.5	0.23	0-135	Φ1400	1.1	2.2		200	300
HBJ-50	5000	0.05-0.5	0.2	0-135	Φ1500	1.5	3		200	300
HBJ-100	10000	0.05-0.5	0.2	0-135	Φ2000	3	4		200	400
HBJ-150	15000	0.04-0.4	0.15	0-135	Φ2200	4	7.5		200	500
HBJ-200	20000	0.04-0.4	0.15	-45-90	Φ2500	5.5	11		200	600
HBJ-300	30000	0.03-0.3	0.15	-45-90	Φ3000	5.5	15		200	650
HBJ-500	50000	0.02-0.2	0.06	-45-90	Φ4000	11	18.5		200	800
HBS WELDING POSITIONER PARAMETER
Type	Rated Loading(kg)	Rotation Speed(rpm)	Tilting speed(rpm)	Tilting angle	Worktable Dia.	Rotation Power	Tilting Power	Speed regulation	Max. Eccentricity	Max.Gravity
HBS-6	600	0.08-0.8	0.4	0-135	Φ800	0.37	0.75	AC frequency conversion stepless speed regulation	100	200
HBS-10	1000	0.08-0.8	0.34	0-135	Φ1000	0.75	0.75		100	200
HBS-20	2000	0.08-0.8	0.29	0-135	Φ1200	1.1	1.1		200	200

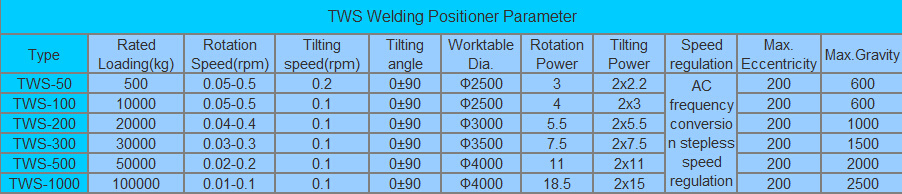

HBS WELDING POSITIONER PARAMETER
Type	Rated Loading(kg)	Rotation Speed(rpm)	Tilting speed(rpm)	Tilting angle	Worktable Dia.	Rotation Power	Tilting Power	Speed regulation	Max. Eccentricity	Max.Gravity
TWS-50	500	0.05-0.5	0.2	0±90	Φ2500	3	2x2.2	AC frequency conversion stepless speed regulation	200	600
TWS-100	10000	0.05-0.5	0.1	0±90	Φ2500	4	2x3		200	600
TWS-200	20000	0.04-0.4	0.1	0±90	Φ3000	5.5	2x5.5		200	1000
TWS-300	30000	0.03-0.3	0.1	0±90	Φ3500	7.5	2x7.5		200	1500
TWS-500	50000	0.02-0.2	0.1	0±90	Φ4000	11	2x11		200	2000
TWS-1000	100000	0.01-0.1	0.1	0±90	Φ4000	18.5	2x15		200	2500

Changzhou ANNOV Machinery Co., Ltd. is located in the beautiful Changzhou - Changzhou Luoyang Town Industrial Park, economic development, transportation facilities, over the years has always been engaged in the development of automated welding equipment, design and manufacturing. To four machines (CNC cutting machine, welding manipulator, welding turning rolls, welding positioner) and H beam automatic welding production line as the leading product for many years service in the boiler, pressure vessel, petrochemical, electrical installation, metallurgy and steel other manufacturing industries. Products varieties, specifications, complete sets, supporting strong advantages, can complete configuration, single purchase, and can be manufactured according to user requirements. The Company will be experienced manufacturing experience, the perfect design, meticulous work of the spirit, the integrity of service waiting for your patronage. To further promote the improvement of the quality of the company, warmly welcome customers giving valuable advice, and you would like to create a brilliant tomorrow.
