Shanghai Jinghao International Trade Co., Ltd. >> Horizontal Woltman Type Water Meter/Flanged Type Water Meter (JH-WM-LXL)

Horizontal Woltman Type Water Meter/Flanged Type Water Meter (JH-WM-LXL)

Name: Horizontal Woltman Type Water Meter/Flanged Type Water Meter (JH-WM-LXL)
Brand: china-manufacturer-directory.com
SKU: 773562125
Availability: InStock
Rating: 4.5 (129 reviews)

Supplier:	Shanghai Jinghao International Trade Co., Ltd.
Price:	US $ 10-35/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF,DAP

Product Specifications

Prod Model:	JH-WM-LXL
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Level Measurement:	B
Medium Temperature:	Cold or Hot Water
Material:	Gray Iron/Brass
Flow Range:	0-2.5m3/H
Accuracy:	?à0.6-1%
Main Application:	Water
Sensor:	Plug-in
Measuring Media:	Liquid
Measuring Principle:	Mechanics
Size:	Dn80-300
Application:	Civil
Type:	Water Meter

Product Description

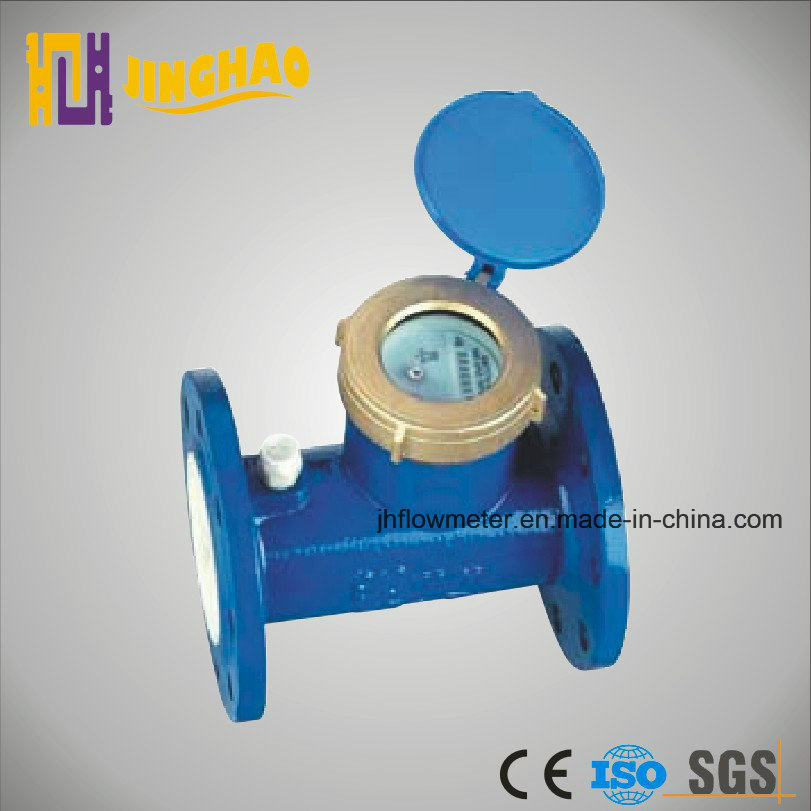

LXL Horizontal Woltman Type Water Meter

Set of moving device that fitted into a closed conduit driven directly by water flow. Its turbine rotor
rotates about the axis which is perpendicular to water flow.

Application:
--Measuring the volume of cold (hot) water passing through the pipeline.

Features:
-Types: clock hands and numerical rolls (E type);
-For hot or cold water;
-Big vane structure;
-Big flow capable, low head loss;
-All technical figures are conformed with GB/T778.1~3-1996 which is to equivalent to ISO4064 Standard ClassB.

Working condition:
Water temperature: 0.1ºC~40ºC ( 0.1ºC~90ºC for hot water meter)
Water pressure: ≤1Mpa (1.6MPa for special requirement)

Technical parameters:

Type	Size	Class	Qs Max Flow(m3/h)	Qp Nominal Flow	Qt Transitional Flow(M3/H)	Qmin Min.Flow (M3/H)	Min. Reading M3	Max. Reading
LX-80E	80	B	80	40	8	1.2	0.1	999999
LX-100E	100	B	120	60	12	1.8	0.1	999999
LX-150E	150	B	300	150	30	4.5	0.1	999999
LX-200E	200	B	500	250	50	7.5	0.1	999999
LX-250E	250	B	800	400	80	12	0.1	999999
LX-300E	300	B	1200	600	180	48	0.1	999999
