Product Specifications
| Prod Model: |
KJX-BC03 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Hospital Elevator |
| Warranty: |
ISO,SGS |
| Certification: |
18 Months After Shipment Date |
| Driving Type: |
AC Elevator |
| Capacity: |
500-1000kg |
| Persons: |
6 - 10 |
| Speed: |
1.00 - 2.00m/s |
Product Description

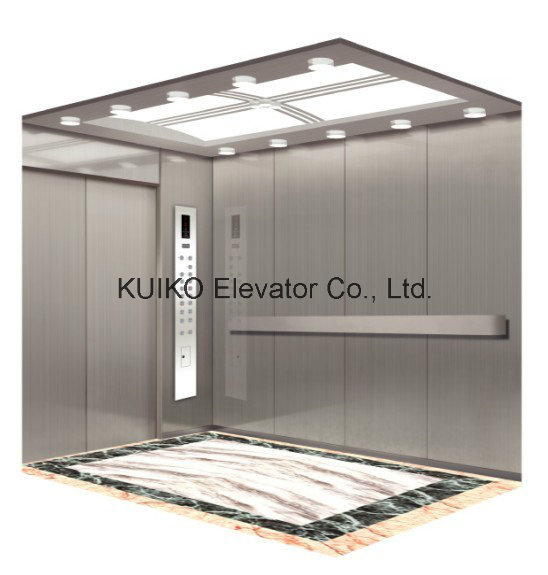

KUIKO elevator hospital elevator series are vertical lift designed specifically for hospital. Its large space which can easily fit into hospital emergency beds fast and fully solve the busy traffic problems of hopsital buildings, providing green resue channel for life.
Product description:
Ceiling: KDD-03 hairline stainless steel frame, Acrylic
Control Box: KCZ-01 with disabled C. O. P
Cabin Wall: Hairline stainless steel with three side walls, middle with mirror hairline steel
Front board: Hairline stainless steel
Lintel: Mirror stainless steel
Sedan gate: Mirror stainless steel
Arm rest: KFS-03 one set at each three side wall
Floor: PVC, type KDB-07
Person
/
capacity
| Net size of car
AAxBB
(mm) | Square of car (m 2 ) | Net width of door JJ (mm) | Depth of door (mm) | Hoistway size
AHxBH
(mm) | Rate Speed V(m/s) | Height of door HH(mm) | P.H PD(mm)
| Overhead height OH(mm)
| MR.H (mm) |
| 21/1600 | 1400X2400 | 3.44 | Side open 1100 | 1300 | 2300X2900 | 1.0 | 2100 | 1500 | 4300 | 2500 |
| 1.5 | 1600 | 4400 |
| 1.75 | 1700 | 4500 |
| 21/1600 | 1400X2400 | 3.44 | Central open 1100 | 1300 | 2500X2900 | 1.0 | 1500 | 4300 |
| 1.5 | 1600 | 4400 |
| 1.75 | 1700 | 4500 |
KUIKO Elevator Co., Ltd. is a specialized enterprise focusing on manufacturing fast elevator. It is located in Hangzhou city, Zhejiang, China, just 15 minute away from Hangzhou airport. Its factory covers an area of, with more than 80 sets of advanced equipment including Germany TRUMPF laser cutting machine, multi-station CNC punching, Japanes OTC robot automatic welding machine, CNC bending machine, German laser cutting machine, door systems production line, the car production line, control systems production line and etc. And its annul production capacity reaches 20, 000 elevators. We KUIKO will provide best quality and good price from you from USD$11000 to USD$16000. Main safety parts are from highest quality companies in world. The goal of KUIKO elevator is "superior quality, reasonable price, punctual shipment and good service"
