Hot and Cold Impact Test Machine Programmable Thermal Shock Test Charmber

Hot and Cold Impact Test Machine Programmable Thermal Shock Test Charmber
Supplier: Shenzhen Lianxin Testing Equipment Co., Ltd.
Price: US $ 15750-20000/Piece
Min Order: 1/Piece
Quantity::
Trade Terms: FOB,CIF,DAP
contact supplier

Product Specifications

Prod Model: LX-50
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification: RoHS
Control Type: Digital
Type: Temperature Controller
Display Type: LED
Material: Stainless Steel
Usage: Cold and Hot Shock Equipment
Brand: Lianxin

Product Description

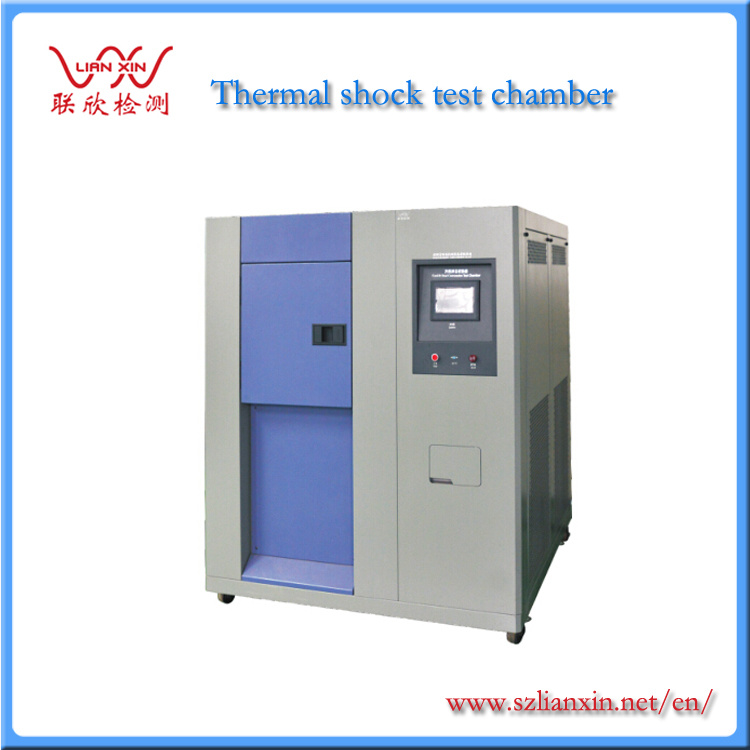

 Hot and cold impact test machine Programmable Thermal Shock Test charmber

Thermal Shock test Chamber also called impact test temperature or high and low temperature impact tester,is used to assess products on the rapidly changing ambient temperature adaptability,Is an evaluation test in the process of the equipment design and batch production phase of an indispensable routine test experiment, in some cases,it may can also be used for environmental stress screening test.Thermal shock can be said that the frequency of the chamber in verification and improve equipment environmental adaptability applied only to vibration and high temperature test.

Product features

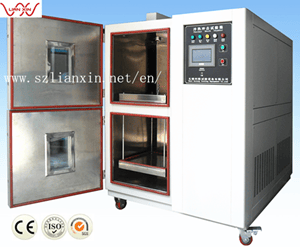

Unique three box-type structure, try to avoid moving frequently, more conducive to try do electric test Respectively for high temperature, low temperature, normal temperature, high and low temperature impact test Imported stainless steel shell shape the beauty is generous Imported refrigeration units, accessories are all  imported international brands Whole system is equipped with multiple protection, improve the operation reliabi System operation is simple, easy installation and maintenance

Execution standard and meet the standard

GB2423.1-89 Low temperature test method
GB2423.2-89 High temperature test method
GB12423.22-89 Temperature change test
GJB150.5-86 Temperature impact test
GJB360.7-87 Temperature impact test
Technical parameters
Test methodTS100TS150TS200
Model100L150L200L
Inside Volume(High greenhouse,Low greenhouse,Test chamber)
PerformanceHigh greenhousePreheat temperature rangeRT+20ºC-+200ºC
Heating up time.+20ºC-+200ºC30min
Low greenhousePreheat temperature rangeRT-80ºC
Cooling time.+20ºC-80ºC about 80min
Try greenhouse impactTemperature uniformity≤2ºC
Temperature Shock range.-55ºC-+180ºC
Temperature recovery time≤5min
Conversion time≤10s
SIZE (D*W*H)(mm)400*500*500500*600*500500*700*600
MaterialInner materialSUS304 Mirror stainless steel plate
Outside materialSUS304 Wire drawing of stainless steel plate or A3 spraying plastics
Thermal insulationSuperfine glass wool or polyurethane foam
Test chamber structureHigh greenhouseHeaterNickel-chromium alloy heating wire heater
Draught fanCentrifugal fan
Low greenhouseHeater,cooler

Draught fanCentrifugal fan
Refrigeration systemPneumatic cylinderHigh temperature, environment temperature, low temperature exposure with each tuyere driver
Air compressorProvide compressed air compressor driven by pneumatic tuyere (options)
Refrigerating methodMechanical compression binary cascade refrigeration
Refrigeration compressorSemi-closed piston
RefrigerantR404A and R23
CondenserStainless steel welded plate heat exchanger
ControllerColor LCD touch screen controller imported from Japan or Switzerland PCD programmable controller
Power supplyAC380±10V 50±0.5HZ Three-phase five wire
Power35KW40KW45KW
Circulation cooling waterWater pressure:0.2-0.4Mpa   Water temperature≤30ºC
Compressed air0.6-0.8Mpa
Safety deviceLeakage protection, water protection, overtemperature protection, quick fuse compressor over-voltage protection and current protection
Choose the configurationRemote monitoring computer RS232 communication interface, control software, the recorder

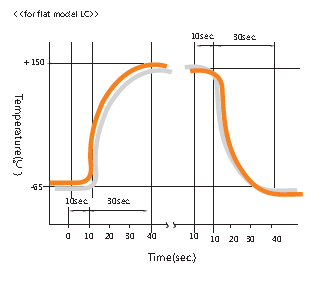

Temperature recovery in just 5 minutes without auxiliary freezing

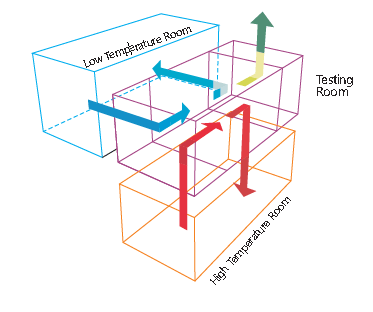

Superior recoverability because of an optimum 3-room construction for thermal shock and a damper switch system to reduce heat loss
The damper switch system features an independent, 3-room construction with low and high temperature room to perfect the system's cooling and guarantee restored temperatures in just 5 minutes. The system's cooling and heating fan has a direcional(from left to right)circulatory system to add even temperature stress to the test specimens. This is the result of LX's special patented construction
dsdf
Shenzhen Lianxin testing equipment Co., Ltd(Referred to as "LianXin detection", )with HongKong LianXin testing equipment is a global professional wire and cable, Mobile phones and environmental testing equipment research and development, Production and sales of high-tech enterprises. With excellent working environment and the advanced production equipment, Also introduced a number of highly qualified knowledge and technical personnel and marketing elite, For the company has been rapid development has laid a solid foundation.

The company's products are widely used in wire and cable, connectors, LED, photoelectric, electric power, electronic and network communications and other industries and departments, Mainly includes:

1. All kinds of environmental simulation test equipment(Constant temperature and humidity, thermal shock, Rapid temperature change, aging, UV, etc);

2. All kinds of DC wire tester, AC double head plug wire tester;

3. All kinds of wire and cable equipment and appliances experiment equipment(Swing machine, salt spray machine, pulling machine, insertion force testing machine, etc);

4. All kinds of mobile phone simulation test equipment(Flip, slide, falling, click on the line, such as key life test etc. );

5. All kinds of safety equipment(High pressure/pressure gauge, low resistance, insulation resistance, digital bridge, etc);

6. All kinds of environment the calibration equipment.

Our company with domestic and foreign large and well-known enterprise or its affiliated companies to maintain good, the good faith cooperation. Such as "the same continents, BYD, Samsung Group, " and so on, Is the most powerful in the same industry at home and abroad with the size of the testing instrument producer.

Products are exported to all over the world, deeply the customer high praise. Company in Vietnam, South Korea, India, Hong Kong, Shanghai, zhejiang, changsha, Beijing, guangzhou, zhuhai, foshan, dongguan, such as setting up branch office, Forming technology service network, for users across the country to provide professional technical services. Company to fully implement the customer is supreme principle, Set up to the quality strives for the development, the service strives for the survival of development policy, with customers to establish long-term friendly relations of cooperation.
