Product Specifications
Prod Model: |
wire net |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Wire Diameter: |
0.4mm-1.5mm |
Material: |
Galvanized Iron Wire |
Application: |
Window Curtain |
Surface Treatment: |
Galvanized |
Weave Method: |
Twist |
Weave Technique: |
Plain Weave |
Product Description

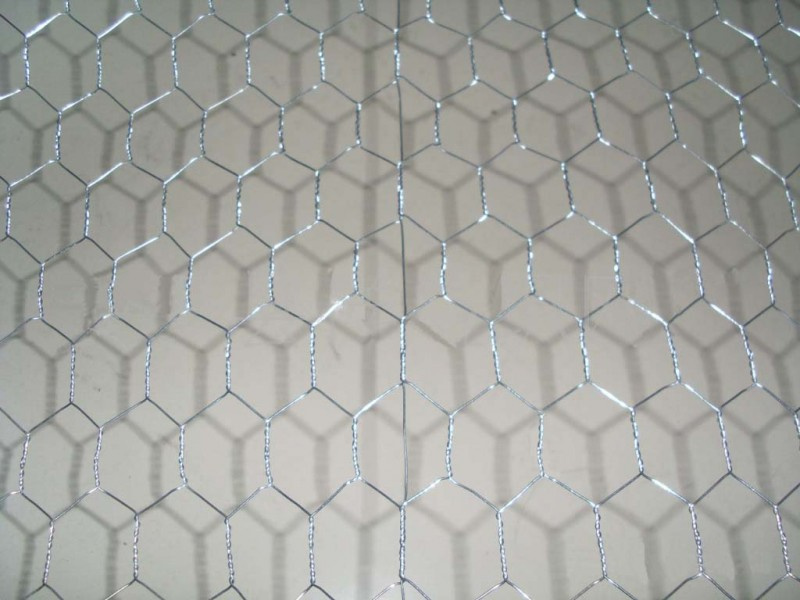

Hot dipped galvanized hexagonal wire netting
1.Material: low carbon steel wire, stainless steel wire
2.Wire guage:0.4mm-1.5mm
3.Surface treatment:hot galvanized, electro galvanized, PVC coated
4.Weaving:
Electro Galvanized before Weaving
Electro Galvanized After Weaving
Hot Dipped Galvanized before Weaving
Hot Dipped Galvanized after Weaving
PVC Coated Before or After Weaving
Stainless Steel Wire
Galvanized Drawn Iron Wire
5.Characteristic: The structure is firm and smooth, , anti-oxidanting, anti-corrision.
6.Application: Widely used in building, oil, chemical industry, breed, plant protection, food processing reinforce, guard and heat-keeping, For example:making net cast, stone cage, insulated net wall, boiler cover, poultry fence, etc.
7.Packing: In rolls,wrapped with water-proof paper, or as your requirement.
8. Remark: Other sizes not mentioned may be ordered in advance.
specification
Galvanized hex. wire netting in normal twist (width of 0.5M-2.0M) |
Mesh | Wire Gauge (BWG) |
Inch | mm |
3/8" | 10mm | 27,26,25,24,23,22,21 |
1/2" | 13mm | 25,24,23,22,21,20, |
5/8" | 16mm | 27,26,25,24,23,22 |
3/4" | 20mm | 25,24,23,22,21,20,19 |
1" | 25mm | 25,24,23,22,21,20,19,18 |
1-1/4" | 32mm | 22,21,20,19,18 |
1-1/2" | 40mm | 22,21,20,19,18,17 |
2" | 50mm | 22,21,20,19,18,17,16,15,14 |
3" | 75mm | 21,20,19,18,17,16,15,14 |
4" | 100mm | 17,16,15,14 |
Puersen Mesh also offer other specifications you need
Other type:
Galvanized hex. wire netting in reverse twist (width of 0.5M-2.0M) |
Mesh | Wire Gauge(BWG) | Reinforcement |
Inch | mm | (BWG) | Width(ft) | Strand |
1" | 25mm | 22,21,20,18 | 2' | 1 |
1-1/4" | 32mm | 22,21,20,18 | 3' | 2 |
1-1/2" | 40mm | 20,19,18 | 4' | 3 |
2" | 50mm | 20,19,18 | 5' | 4 |
3" | 75mm | 20,19,18 | 6' | 5 |
PVC Coated Hexagonal Wire Netting |
Mesh | Wire Gauge (MM) | Width |
Inch | MM | - | - |
1/2" | 13mm | 0.6mm - 1.0mm | 2' - 2M |
3/4" | 19mm | 0.6mm - 1.0mm | 2' - 2M |
1" | 25mm | 0.7mm - 1.3mm | 1' - 2M |
1-1/4" | 30mm | 0.85mm - 1.3mm | 1' - 2M |
1-1/2" | 40mm | 0.85mm - 1.4mm | 1' - 2M |
2" | 50mm | 1.0mm - 1.4mm | 1' - 2M |
Anping County Puersen Hardware Wire Mesh Products Co., Ltd. Which located in the native land of wire mesh, wire mesh market of great wire mesh world, Anping County, Hebei, China, is an exporter and manufacturer of all kinds of wire mesh. Through years of development, the company has grown into an all-round enterprise, integrating scientific research, production and management together.
Our main products are Cold Rolled Steel Bar, Reinforcing Mesh, Hard-drawn, Twisted steel, Stainless steel wire mesh, welded wire mesh, Chain link Fence, Perforated sheet, Galvanized wire, Razor wire, Barbed Iron wire, PVC coated wire, wire mesh fence and so on.
We adhere to the devepopment conceptions of "Profession, Honest and Survival depend on the quality", and insist on constant innovation, and innovation with the time. In order to return the support and help of new and old customers, we' Ll adhere to our words, and sincerely cooperate with all walks life friends depend on good service and mutual benefit so as to create a better tomorrow.
