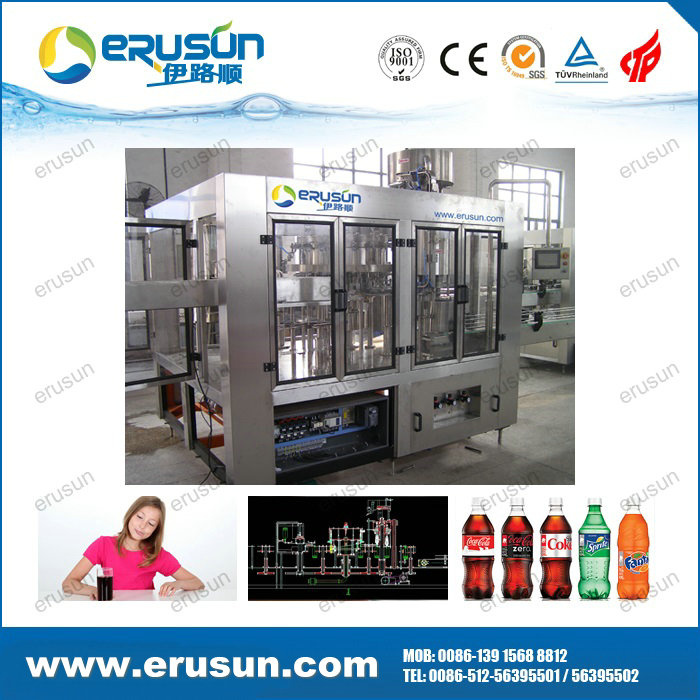

Hot Filling 3-in-1 Machine for Small Pet Bottles

Product Specifications

Prod Model:	RHFC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Rhfc
Machine Brand:	Yls
Condition:	New
Bottle Size:	Diameter 50-400mm, Height 150-320mm
Composition:	Filling Machine
Processing Material:	Liquids
Process:	Fill and Cap

Product Description

Product Description
Description:
Sphere of applied product: Juice, tea beverage, functional beverage and so on.
Suitable for: PET bottles with all volumes and shapes
Filling system: Hot filling
Production capacity: 2000BPH- 24000BPH
This hot filling machine is the standard 3-in-1 monoblock. But to the special production condition, another sanitizer rinsing could be added, that is 4-in-1 monoblock. The system has fully considered the beverage's characteristics (such as the frothing of the tea drink and mixed juice) and the technical requirement of the hot filling.
Technical features:
Full filling is to avoid the bottle from sinking after the bottle cooling off, and to decrease the dissolved oxygen to the utmost extent.
Reasonable structured storage hopper and material supply system keep the material in the constant flow speed, constant pressure and without frothing. Usually high position tank is adopted.
The storage hopper has the characteristic of gas discharge, full sealing and temperature detecting. In moderate and high speed production line, the material distributor replaces the big liquid tank to realize the complete CIP.
Sanitary filling head system is of umbrella structure, high filling speed.
Perfect filling temperature control system.
Return tank system has the function of supplying the material automatically.
Perfect CIP system

Mode l	RHFC 16 / 12 / 6	RHFC 18 / 18 / 6	RHFC 24 / 24 / 8	RHFC3 2 / 32 / 10
Rinsing Head	16	18	24	32
Filling Head	12	18	24	32
Capping Head	6	6	8	10
Production capacity ( 5 00ml) (B/H)	2 000	5 000	8 000	1 2 000
Filling accuracy	≤±5mm	≤±5mm	≤±5mm	≤±5mm
Filling the back flow	≤8%	≤8%	≤8%	≤8%
Cap shape	Plastic cap	Plastic cap	Plastic cap	Plastic cap
Rinsing water pressure (Mpa)	0.2-0.25	0.2-0.25	0.2-0.25	0.2-0.25
R insing water consumption ( ton/ h)	1t/hour	1.2t/hour	1.2t/hour	2t/hour
Air pressure (Mpa)	0. 7	0. 7	0. 7	0. 7
Air consumption (m3/min)	0.25M3/min	0.8M3/min	0.8M3/min	0.8M3/min
Motor power ( KW )	3	3.5	4.5	6
Weight ( KG )	3 000	4 000	50 00	60 00
P acking Size (L*W*H) (mm)	2 200 × 180 0 × 2300	2 3 00 × 2000 × 2300	3000 × 2200 × 2800	4000 × 2600 × 2800
PET bottle size (mm)	Bottle diameter φ50-φ 100mm; Height 150-320 mm

Mode l	RHFC 40 / 40 /12	RHFC 50 / 50 / 15	RHFC 60 / 60 / 15	RHFC72/72/18
Rinsing Head	40	50	60	72
Filling Head	40	50	60	72
Capping Head	1 2	15	15	18
Production capacity ( 5 00ml) (B/H)	1 5 000	18 000	2 1 000	25000
Filling accuracy	≤±5mm	≤±5mm	≤±5mm	≤±5mm
Filling the back flow	≤8%	≤8%	≤8%	≤8%
Cap shape	Plastic cap	Plastic cap	Plastic cap	Plastic cap
Rinsing water pressure (Mpa)	0.2-0.25	0.2-0.25	0.2-0.25	0.2-0.25
R insing water consumption ( ton/ h)	2 t/hour	3t/hour	4 t/hour	5t/hour
Air pressure (Mpa)	0. 7	0. 7	0. 7	0. 7
Air consumption (m3/min)	0.8M3/min	1M3/min	1 M3/min	1 .2 M3/min
Motor power ( KW )	6.5	8	12	15
Weight ( KG )	70 00	85 00	9500	1 1 000
P acking Size (L*W*H) (mm)	4700 × 2950 × 2800	5100 × 4800 × 3000	6200 × 4950 × 3000	70 00 ×55 00 ×30 00
PET bottle size (mm)	Bottle diameter φ50-φ 100mm; Height 150-320 mm

brand	ERUSUN
company	ZHANGJIAGANG ERUSUN MACHINERY CO.,LTD.
original	CHINA
