Other Name in different area:

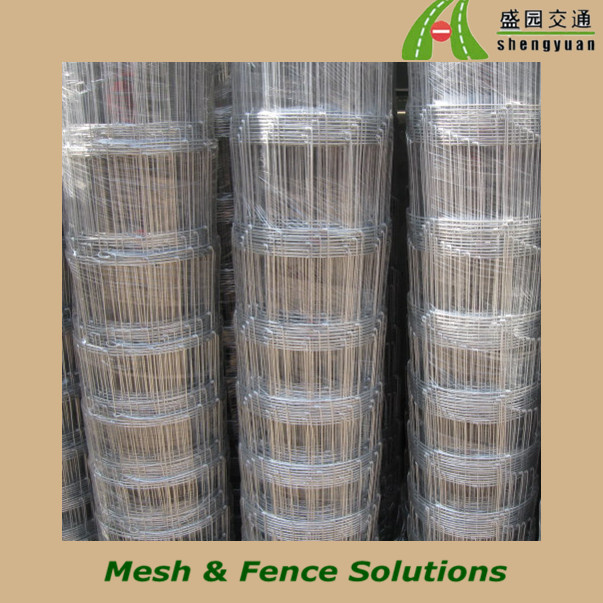

Farm Fence / Grassland Fence / Field Fence
Field fence, hinge joint fence, farm fence, horse fence, cattle fence, sheep wire, sheep fence. Stock fencing, stock fence
Material: Hot DIP galvanized wire.
Diameter of all wires used: Top / BOTTOM wire dia: 2.5MM-3.6mm
Line /stay wire dia area: 1.7MM-2.5mm
Hardness Mpa of all wires: According to consumer. (700-1400Mpa)
Zinc coating: 60-240g/square meter
Uprightness wire space: 5cm-60cm
High area: 50cm-200cm
Length for onerolls: 25m-200m
Features:
1. With innovative and firm structure, flat surface, uniform opening.
2. Good flexibility, good resistance against pressure, hit, corrosion and weather.
3. Neither loose nor break even when partial cutting or hit occur.
4. Tight rolls and large loading, suitable for exporting.
5. Less weight, easy transport, fast installation, easy maintenance.
|
Type |
Mesh |
Top and bottom Wire diameter (mm) |
Inner wire diameter(mm) |
Roll diameter(mm) |
|
1 |
7/150/813/50 |
102+114+127+140+152+178 |
2.5 |
2.0 |
280 |
|
2 |
8/150/813/50 |
89(75)+89+102+114+127+140+152 |
2.5 |
2.0 |
280 |
|
3 |
8/150/902/50 |
89+102+114+127+140+152+178 |
2.5 |
2.0 |
280 |
|
4 |
8/150/1016/50 |
102+114+127+140+152+178+203 |
2.5 |
2.0 |
280 |
|
5 |
8/150/1143/50 |
114+127+140+152+178+203+229 |
2.5 |
2.0 |
280 |
|
6 |
9/150/991/50 |
89(75)+89+102+114+127+140+152+178 |
2.5 |
2.0 |
280 |
|
7 |
9/150/1245/50 |
102+114+127+140+152+178+203+229 |
2.5 |
2.0 |
280 |
|
8 |
10/150/1194/50 |
89(75)+89+102+114+127+140+152+178+203 |
2.5 |
2.0 |
280 |
|
9 |
10/150/1334/50 |
89+102+114+127+140+152+178+203+229 |
2.5 |
2.0 |
280 |
|
10 |
11/150/1422/50 |
89(75)+89+102+114+127+140+152+178+203+229 |
2.5 |
2.0 |
280 |
Remarks:
(1)The meaning of the type:
The first group means the numbers of horizontal wire;
The second group means length of the mesh size;
The third group numbers mean the height of the fence, that is the width of the roll;
The fourth group stands for the standard length of the roll;
(2)The width is from 0.8 meter up to 2.0 meters. The length is 50 m, 100m or 200 m per roll.
(3)Surface treatment can be made with electro galvanized or hot dipped galvanized. H-D galvanized is much more durable.
(4)Special size can be customized. |
We Xi'an Dek Fence Co., Ltd. was established in 2002,
Our company is a professional large-scale manufacturer of all types of metal wire mesh fence, integrating development and production together.
Main products:
1. Welded wire mesh fence panel / Double welded arch fence / Chain link fence / Euro fence
2. Welded wire mesh roll / Hexagonal wire mesh (Gabion)
3. Temporary fence / Crowd control barrier / Traffic barrier
4. Reinforce mesh / Steel picket fence
Our aim is not only to provide products, but also provide a complete solutions.
Our products have been sold to 5 continents, over 30 countries including Poland, France, Australia, Mexico, Columbia and some countries in southeast Asia, etc. We attained ISO9001: 2008 certification.
Our company regards "Reasonable prices, Efficient production time and Good after-sales service" as our tenet. We hope to cooperate with more customers abroad on the basis of the mutual benefit. Welcome to contact us and visit our factory any time.
