Product Specifications
| Prod Model: |
FS1325A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
4.5kw |
| Weight: |
1300kg |
| Controller: |
Nc Studio |
| Spindle: |
3kw Water Cooling Spindle |
| Drives: |
Drives |
| Motor: |
8 Wires Stepper Motor |
| Delivery: |
About 15-20 Day After Receive Deposite |
| Spindle Layout: |
Vertical |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Manual |
| Controlling Mode: |
CNC |
| Certification: |
CE |
Product Description

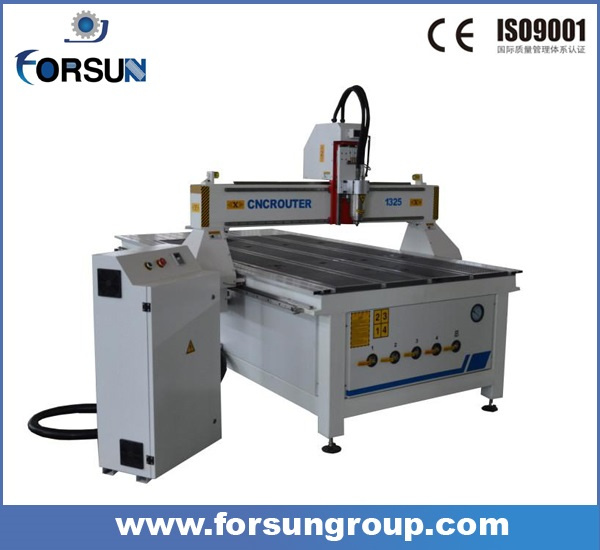

Hot high quality cheap cnc router chinese cnc router machinery
Applicable Industry and materials:
1) Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, doors and
windows.
2) The wood products: computer tables, sewing machines table
3) Plate processing: plastic chemical components, PCB, inner body of car,anti bate board, , ABS
4) Decorate industry: Acrylic, PVC, MDF, artificial stone, plastic and soft metals such as copper, aluminum plate
Machine configuration:
1) Working area: 1300mm*2500mm*200mm (X,Y,Z axis)
2) Solid steel frame construction thicken to 10 mm
3) 3.0 kw water cooling spindle
4) YAKO drives and 8 wires stepper motor
5) T-Slot PVC table with Aluminum sheet
6) HIWIN Linear Guide from Taiwan
7) NC Studio controller
8) X and Y axis: Rack and Pinion, Z axis: ball Screw
9) Automatic Tool Calibration
10) 3PH 380V 50HZ
11) Plywood case package
Option:
1.AC Servo motors
2.T-Slot vacuum table
3.DSP Control system or Mach3 control system
4.Dust collector system
5.Oil mist cooling system (We suggest if processing on hard material)
Technical data:
NO. | Items |
| Parameters | Option |
| 1 | Working area | X Y Z Axis | 1300*2500*200mm |
|
|
|
|
| 3 | Table Type |
| T-Slot Extrusion PVC | Vacuum table |
| 4 | Accuracy | Working Accuracy | ±0.03/300mm |
|
| Repositioning Accuracy | ±0.02/300mm |
|
| 6 | Drive system | X,Y with Rack and Pinion Z with ball screw |
|
| 7 | Speed | MAX Travelling Speed | 32000mm/min |
|
| MAX Working Speed | 15000mm/min |
|
| 8 | Spindle | Spindle Power | 3.0 KW spindle | Italian HSD Spindle |
| Spindle Speed | 0-24000r/min |
|
| 10 | Drive and Motor |
| Stepper | Servo |
| 12 | Working Voltage |
| AC380V/50Hz | AC380V/60Hz |
| 14 | Operating System |
| NC STUDIO | NCSTUDIO |
| 15 | N.W. :G.W. |
| 1300 KG/1500 KG |
|
| 16 | Packing size |
| 3250*2280*1950mm |
|
| High quality and competitive price |
Machien spare parts:
1. Air cooling spindle with long life and good quality
2. DSP controller of cnc router with ce certificate
3. 8 Wires Stepping Motor with high anti-interference ability
4. HIWIN linear guide with high quality of cnc router wood working machinery
5. Professional Cables for CNC Router.High Flexible,Temprerature resistant,High anti-interference
6.Ball screw install high precision of cnc router wood working machinery
7.Powerful Helical Rack and Pinion of cnc router with ce certificate
8. T-slot vacuum table (option)
Remarks:
1. Plywooden Package
2. Terms: FOB ,C&F,CIF
3. From Qingdao, China To____,
4. Lead Time: 20working days after received payment
5. Payment: T/T,30% prepaid,the balance paid before the delivery
6. Mainly product : CNC router , laser cutting machine and plasma cutting machine.
Forsun is a leading global manufacturer of CNC routers, plasma arc cutting machines, and laser cutting machines. All the machines have been certified by CE. In manufacturing, the quality processes used are directly reflected in the excellent product that is delivered to your door. We have partnered with specific component manufacturers to deliver the best components for our machine systems. Our focus is on integrating advanced technology and value into systems that are highly productive, easy to use and built to last. Some of our strategic vendors include HSD Spindles, THK Bearing Systems, Siemens control system, YASKAWA servo, HIVIN linear guide and Eisler Reducer. As a machine builder, the exacting manufacturing processes we have created ensure that even custom systems can be engineered, manufactured and delivered with the shortest manufacturing lead times in the industry. We are near to you physically, and only a phone call or email away electronically for machinery, software and consumable sales as well as after sales support. Count on Forsun to work with you in your machine decision process, to build you an excellent quality CNC router that will work for years, and to continue to support you and your machine decision for years to come. We strive toward exemplary customer satisfaction, employee career fulfillment and corporate citizenship. Success in these areas, we believe, will yield long-term benefits for the Forsun brand, Forsun employees and our partners.
