Product Specifications
| Prod Model: |
PYD2200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Crusher: |
Stone Crusher |
| Mining Equipment: |
Cone Crusher |
| Type: |
Cone Crusher |
| Application: |
Stone Industry |
| Drive: |
Electric |
| Crushing Style: |
Grinding & Impact |
| Crushing Degree: |
Intermediate Crusher |
| Finished Surface: |
Outer Surface Process |
| Color: |
According to Customers ' Needs |
Product Description
Machinery Factory of Gongyi City:http://www.gymineralprocessing.com
fixed-line telephone:86-0371-64324031 85603988
FAX:86-0371-64324051
Add:Gongyi City,HenanProvince, Kangdianzhen goverment one kilometer south
contacts:Sir ma;Tel:18538037601
We will offer warm-hearted service to you

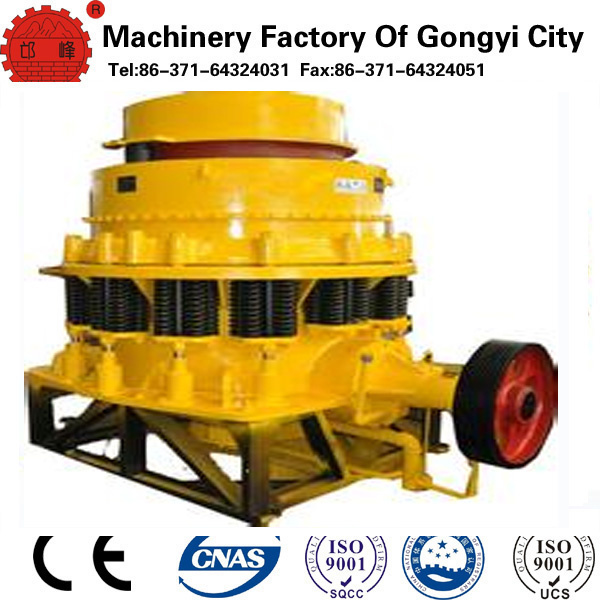

1). The cone crusher is widely used for secondary and fine crushing in the fields of mining, chemical industry, building materials, metallurgy and so on.
2). Cone crusher can crush materials with Mohs scale in middle and high hardness such as ironstone, copper ore, limestone, quartz, granite, rock and so on. The standard type (PYB) is applied to secondary crushing; the medium type (PYZ) and the short-head (PYD) are applied to fine crushing.
Features Of Simons Cone Crusher :
A). Simple design and rugged construction have made cone crusher ideal for crushing operations.
B). The spring-loaded release system allows any uncrushable material to pass through without causing any damage.
C). The lubrication unit is interlock with the main motor for additional safety as a standard equipment.
D). A rid liner is provided inside the bottom section of the frame to help protect it from wear.
? Technical Parameters Of Cone Crusher :
Model |
Max. Feeding Sizes
(mm) |
Adjustable Range of Output size
(mm) |
Capacity
(t/h) |
Motor Power
(kw) |
Weight
(t) |
Overall
Dimension
(mm) |
PYB600 |
65 |
12-25 |
10-25 |
30 |
5 |
2234×1370×1675 |
PYD600 |
35 |
3-13 |
5-20 |
30 |
5.5 |
2234×1370×1675 |
PYB900 |
115 |
15-50 |
50-90 |
55 |
11.2 |
2692×1640×2350 |
PYZ900 |
60 |
5-20 |
20-65 |
55 |
11.2 |
2692×1640×2350 |
PYD900 |
45 |
3-13 |
15-50 |
55 |
11.3 |
2692×1640×2350 |
PYB1200 |
145 |
20-50 |
110-168 |
110 |
24.7 |
2790×1878×2844 |
PYZ1200 |
100 |
8-25 |
42-135 |
110 |
25 |
2790×1878×2844 |
PYD1200 |
50 |
3-15 |
18-105 |
110 |
25.6 |
2790×1878×2844 |
PYB1750 |
215 |
25-60 |
280-480 |
160 |
50.3 |
3910×2894×3809 |
PYZ1750 |
185 |
10-30 |
115-320 |
160 |
50.3 |
3910×2894×3809 |
PYD1750 |
85 |
5-15 |
75-230 |
160 |
50.4 |
3910×2894×3809 |
PYB2200 |
300 |
30-60 |
490-800 |
260/280 |
80 |
4622×3302×4470 |
PYZ2200 |
230 |
10-30 |
200-580 |
260/280 |
80 |
4622×3302×4470 |
PYD2200 |
100 |
5-15 |
120-340 |
260/280 |
81.4 |
4622×3302×4470 |
Gongyi City Machinery Factory (original Kangdian machinery factory, Gong County Machinery Factory) has large and medium-sized equipment 365 sets, 384 employees, consists of six department: Tachnical department, production department, sales department, domestic trade department, international trade department, service department. There are 240 high-intermediate grade technical personnel. It covers an area of 38, 600 square meters, building area is 18, 000 square meters, fixed assets is 28 million yuan. Gongyi City Machinery Factory is locaded in Kangdian town. One kilometer to south of Kang million eatate Scenic and Kangzhuang road. It is in the east of the provincial capital of Zhengzhou city, there is Hulaoguan Three Kingdoms Battlefield Site; West of Luoyang which is ancient capital of nine dynasties, there is longmen Grottoes which is one of China four famous cave; South of the songshan mountain, there are shaolin Temple and songyang Scademy; North of the Yellow River, there is Sihe yanliu scenic district; Lianhuo Expressway, the Longhai Railway zhengzhou-Xi′ An high-speed rail pass through from east to west, Yellow River bridge line pass through south to nouth. Location is good and transportation is convenient.
Since the factory is established in 1958, it first past the ISO9001 2000 international certification, and obtained import and export license eligibility. Now the leading product are beneficiation series, sandstone series, drying series, milling series eqipment. The products sell well in more than 20 provinces, municipalities and autonomous regions, famous in China, and exporten to many countries southeast Asia, Africa. Quality is enterprise′ S life, we will achieved recognition and satisfaction of the customer through excellent products and quality service. AN oeder is positive, one hopes is a responsibility. No matter it is in the before-sales, during sales or after -sales, we always offer the most attentive service to make you comfortable, let you succeed, also make you satisfied. Cooperating with Gongyi City Machinery Factory will make you no regrets!
Make friends all over the world, invite world content. Gongyi City Machinery Factory sincerely welcome friends from all walks of life to visit and guide, putting forward valuable advice, dicussing cooperation intention, joining hands to creating a better tomorrow.
