Hot Sale! Galvanized High Quality Blade Thorn Rope
Product Specifications
| Prod Model: |
yq-94 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Razor Type: |
Bto-22,Cbt-65 |
| Material: |
Galvanized Steel Wire |
| Twist Method: |
Single Twist |
| Application: |
Fence Mesh |
| Finish: |
Hot Dipped Galvanized |
| Razor Barbed Type: |
Cross Razor |
| Wire Gauge: |
12x14 BWG |
| Barbed Distance: |
4" |
| Barb Length: |
12mm |
| Coil Outside Diameter: |
500mm |
| Color: |
Green |
Product Description

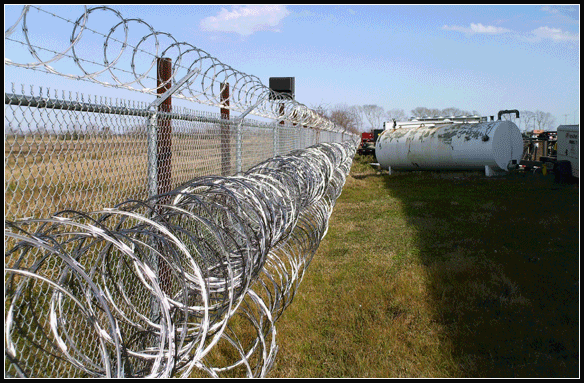

Razor Barbed Wire is a kind of modern security fencing The wire and strip are galvanized to prevent corrosion.
Material: High quality low carbon steel wire, (galvanized, plastic coated, plastic sprayed)PVC wire, with the colors of blue, green, yellow, etc.
Characteristic: Compact and rational structure, high safety factor, for the protection of prison and key project etc.
Can be made according to the actual dimension of customer
Type Wire Gauge (SWG)Barb Distance(CM)Barb Length (CM)
Electric Galvanized Barbed Wire
Hot-DIP zinc plating barbed wire 10# X 12# 7.5-15(CM)1.5-3(CM)
12# X 12#
12# X 14#
14# X 14#
14# X 16#
16# X 16#
16# X 18#
PVC coated barbed wire before coatingafter coating7.5-15(CM)1.5-3(CM)
1.0mm-3.5mm1.4mm-4.0mm
BWG11#-20#BWG8#-17#
SWG11#-20#SWG8#-17#
| Barbed Tape Wire Specification |
| Loop Outside Diameter | No. of Loops | Standard Length per Coil | Type | Notes |
| 450mm | 33 | 7-8M | CBT-60.65 | Single coil |
| 500mm | 56 | 12-13M | CBT-60.65 | Single coil |
| 700mm | 56 | 13-14M | CBT-60.65 | Single coil |
| 960mm | 56 | 14-15M | CBT-60.65 | Single coil |
| 450mm | 56 | 8-9m(3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 500mm | 56 | 9-10M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 600mm | 56 | 10-11M(3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 600mm | 56 | 8-10M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 700mm | 56 | 10-12M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 800mm | 56 | 11-13M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 900mm | 56 | 12-14M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 960mm | 56 | 13-15M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 980mm | 56 | 14-16M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
Anping Yaqi Wire Mesh Co., Ltd. Was founded in 2001. It is a professional enterprise in research and development, production and sales of various wire mesh and metal products, is a wire drawing, galvanized, meshes deep processing industry and trade integration of large enterprises.
We have advanced equipment, rich expertise and scientific production procedure, strict quality control system. During the past years, we have been striving to develop and improve ourselves. Our products exported to Europe, Southeast Asia, the Middle East and around the world, get high praise from domestic and foreign customers and an excellent reputation for superior quality.
Our main products are: Galvanized Iron Wire, PVC coated Wire, Binding Wire, Black Iron Wire, U Type Wire, Small Coil Wire, Cutting Wire, Barbed Wire, Hexagonal Wire Netting, Wire Mesh Fence, Welded Wire Mesh, Gabion Mesh, Square Wire Mesh, Crimped Wire Mesh, Expanded Metal Mesh, Razor Barbed Wire, Chain Link Fence, Grassland Fence, Window Screen, Perforated Meta, Hexmesh, Wedge Wire Screens, Filter Element, Filter Cylinders, Filter Discs, Test Sieve& Standard Sieve.
Our Faith is "Competitive Price, Good Quality and Efficient Service". We sincerely hope to build up good business relationship with you on the basis of mutual benefit.
