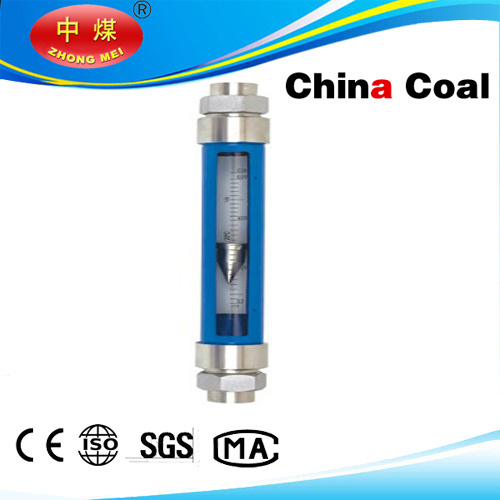

Hot Sale Va/Fa/SA10 Series Flow Meter

Name: Hot Sale Va/Fa/SA10 Series Flow Meter
Brand: china-manufacturer-directory.com
SKU: 700256232
Availability: InStock
Rating: 4.3 (50 reviews)

Supplier:	Shandong China Coal Industrial & Mining Supplies Group Co., Ltd.
Price:	US $ 100-10000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	VA/FA/SA10
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Ga24
Measuring Range:	Water (20 ) 4 36000L/H
.Range Scale:	10: 1
Accuracy.:	1.6
Tube:	Ng60 (No-Oriented)
Float:	Ng60 : a III
Fluid Temperature:	-20 +60 or 0 +,120
Accuracy:	?à0.6-1%
Main Application:	Corrosive Liquid/Gas
Size:	DN50-100
Sensor:	Tube/Flange
Measuring Media:	Liquid
Measuring Principle:	Electrical Principles

Product Description

Introduction
VA/FA/SA10 series flow meters are manufactured the same as the special technique and equipment of company in .In addition to the mm graduation scale and percentage scale on the glass cone, a replaceable scale with flow units can on request be fitting to the housing. VA10 have screw connection, FA10 have flange connection, SA10 have hose connedtion.

Technical parameter

1.Measuring range: Water (20 ) 4 15000L/h        Air (1.013¡Á105Pa, 20 ) 0.12 300m3/h

2.Range scale: 10: 1

3.Accuracy: 1.0; 1.6

4.Tube: NG60 (no-oriented)

            FG60 (oriented)

5. Float : NG60 : A III

              FG60 : C III, D III, C III L, D III L, Z III

6. Fluid press: DN15,DN25: 1.0 Mpa

                      DN40: 0.9 Mpa

                      DN50:0.7 Mpa

7.Fluid temperature: -20   +60 or 0   +120

Specification

DN (mm)	Model		Measuring range
DN (mm)	Basic	Corosive rsistant	Water (20 L/h	Air(101325Pa,20) M3/h
15	VA/SA/FA10-15	VA/SA/FA10-15F	4-40 6.3-63 10-100 12-120 16-160 20-200 25-250 30-300 36-360 40-400 46-460 63-630 65-650 75750	0.12-1.2 0.2-2 0.3-3 0.4-4 0.5-5 0.6-6 0.8-8 0.9-9 1.2-12 2-20
25	VA/SA/FA10-25	VA/SA/FA10-25F	40-400 50-500 63-630 80-800 100-1000 120-1200 160-1600 200-2000 250-2500 300-3000	1.6-16 2-20 2.5-25 3-30 4-40 5-50 6-60
40	VA/SA/FA10-40	VA/SA/FA10-40F	160-1600 200-2000 250-2500 300-3000 400-4000 500-5000	5-50 6-60 8-80 9-90 12-120
50	VA/SA/FA10-50	VA/SA/FA10-50F	250-2500 300-3000 400-4000 500-5000 630-6300 800-8000 1000-10000 1500-15000	10-100 12-120 16-160 20-200 30-300
